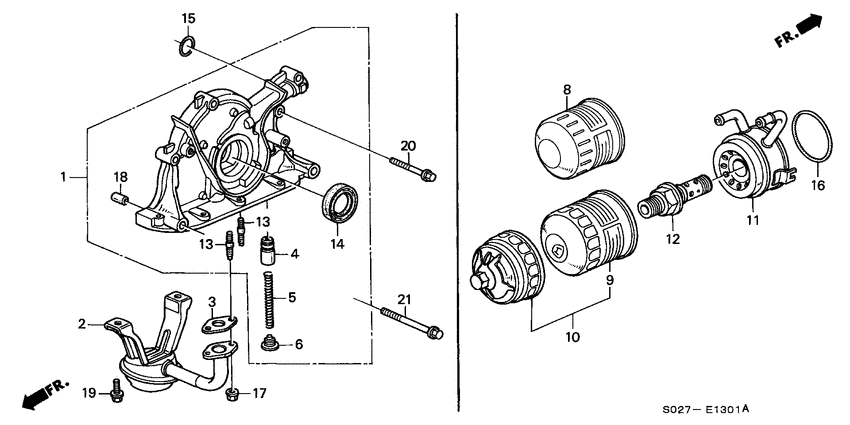

Oil pump/oil strainer (DOHC) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- B16A
- transmission
- 5MT
- Number of doors
- 2
- grade
- 1.6VTI VTEC
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- power window
- +
- air conditioner (manual)
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-PR4-A03 Pump assy.OIL |
15100-PR4-A03 |
from US $221.99 |
||
|
2
|
2
15220-P30-003
Strainer comp.
|
15220-P30-003 |
— | ||
|
3
|
3
15221-PW0-S01 PackingOIL STRAINER |
15221-PW0-S01 |
from US $2.88 |
||
|
4
|
4
15231-PE0-000 ValveRELIEF |
15231-PE0-000 |
from US $5.93 |
||
|
5
|
5
15232-PG6-000 SpringRELIEF VALVE |
15232-PG6-000 |
from US $2.65 |
||
|
6
|
6
15233-PC6-000 BoltSEALING, 18MM |
15233-PC6-000 |
from US $2.38 |
||
|
8
|
8
15400-PH1-F03 CartridgeOIL FILTER (LABINAL-PURFLUX) |
15400-PH1-F03 |
US $16 |
||
|
9
|
9
15400-PR3-003
Cartridge
|
15400-PR3-003 |
— | ||
| replacement | |||||
|
9
|
9
15400-RTA-003 OIL FILTER (MAHLE TENNEX) |
15400-RTA-003 |
US $16.32 |
||
|
9
|
9
15400-PR3-014
OIL FILTER (TOYO ROKI)
|
15400-PR3-014 |
— | ||
| replacement | |||||
|
9
|
9
15400-RTA-003 OIL FILTER (MAHLE TENNEX) |
15400-RTA-003 |
US $16.32 |
||
|
10
|
10
15400-PR3-315 Cartridge setOIL FILTER (TOYO ROKI) |
15400-PR3-315 |
US $16.32 |
||
|
11
|
11
15500-PR3-013
Cooler
|
15500-PR3-013 |
— | ||
|
12
|
12
15560-PT6-003 BoltOIL COOLER CENTER |
15560-PT6-003 |
US $22.59 |
||
|
13
|
13
90042-PR3-000 BoltSTUD, 6X28 |
90042-PR3-000 |
US $2.28 |
||
|
14
|
14
91212-PR4-A01
Oil seal
|
91212-PR4-A01 |
— | ||
| replacement | |||||
|
14
|
14
91212-PR3-003 Oil seal38X50X7.4 (NOK) |
91212-PR3-003 |
from US $10.93 |
||
|
15
|
15
91308-PK1-003 O-ring26.2X2.4 (NOK) |
91308-PK1-003 |
from US $1.93 |
||
|
16
|
16
91316-PT6-003 O-ring62.4X3.1 |
91316-PT6-003 |
US $6.05 |
||
| replacement | |||||
|
16
|
16
91316-PE7-730 O-ring62.4X3.1 |
91316-PE7-730 |
from US $4.22 |
||
|
17
|
17
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
18
|
18
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
19
|
19
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
20
|
20
95701-060-350-8 BoltFLANGE, 6X35 |
95701-060-350-8 |
from US $0.59 |
||
|
21
|
21
95701-080-700-8 BoltFLANGE, 8X70 |
95701-080-700-8 |
from US $0.89 |
||
