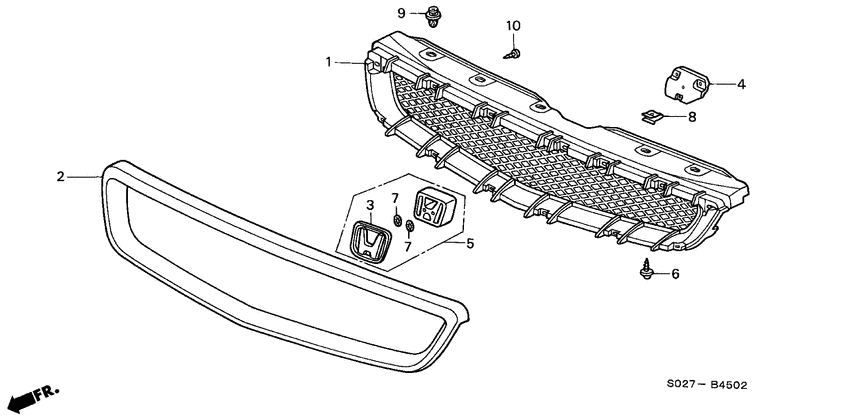

Front grille (VTI-R) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- B16A
- transmission
- 5MT
- Number of doors
- 2
- grade
- VTI-R
- abs
- +
- area code
- KQ
- right-hand drive
- +
- srs driver & passenger
- +
- aluminium wheel disk
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71121-S04-Z01
Base
|
71121-S04-Z01 |
— | ||
|
2
|
2
71122-S04-Z01ZK
Molding
|
71122-S04-Z01ZK |
— | ||
|
2
|
2
71122-S04-Z01ZC
Molding
|
71122-S04-Z01ZC |
— | ||
|
2
|
2
71122-S04-Z01ZG
Molding
|
71122-S04-Z01ZG |
— | ||
|
2
|
2
71122-S04-Z01ZL
Molding
|
71122-S04-Z01ZL |
— | ||
|
2
|
2
71122-S04-Z01ZB
Molding
|
71122-S04-Z01ZB |
— | ||
|
2
|
2
71122-S04-Z01ZF
Molding
|
71122-S04-Z01ZF |
— | ||
|
3
|
3
75700-S04-J00 EmblemFR. CENTER (H) |
75700-S04-J00 |
US $15.23 |
||
|
4
|
4
75706-S02-A01
Plate
|
75706-S02-A01 |
— | ||
|
5
|
5
75710-S02-A01
Emblem comp.
|
75710-S02-A01 |
— | ||
|
6
|
6
90126-SR4-000 Screw-washer5X16 |
90126-SR4-000 |
from US $2.72 |
||
|
7
|
7
90301-ST0-003 push nut, 3mm |
90301-ST0-003 |
from US $1.33 |
||
|
8
|
8
90331-SD5-003 NutSPRING, 5MM |
90331-SD5-003 |
from US $2 |
||
|
9
|
9
91503-SZ3-003 Clip A |
91503-SZ3-003 |
from US $1.94 |
||
|
10
|
10
93903-423J0 ScrewTAPPING, 3X12 |
93903-423J0 |
US $0.67 |
