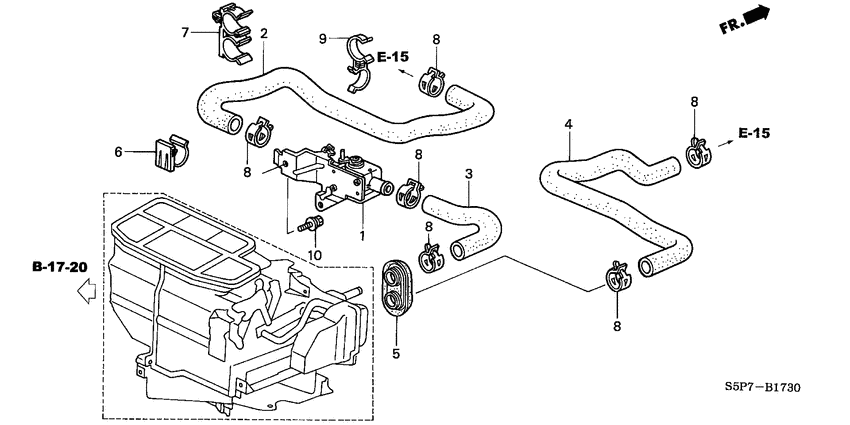

Water valve (LH) Diagram Honda CIVIC
- Year
- 2001
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- D17A
- transmission
- 4AT
- Number of doors
- 2
- grade
- LS
- area code
- KB
- left-hand drive
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79710-S5D-A02 Valve assy, Water |
79710-S5D-A02 |
US $44.88 |
||
|
2
|
2
79721-S5D-A00 Hose aWATER IN. |
79721-S5D-A00 |
from US $24.17 |
||
|
3
|
3
79722-S5D-A00
Hose b
|
79722-S5D-A00 |
— | ||
|
4
|
4
79725-S5D-A00 HoseWATER OUTLET |
79725-S5D-A00 |
US $13.44 |
||
|
5
|
5
79731-S5A-000 GrommetHEATER PIPE |
79731-S5A-000 |
US $4.62 |
||
|
6
|
6
79746-SL4-003 ClampHEATER HOSE |
79746-SL4-003 |
US $3.48 |
||
|
7
|
7
79746-S5A-003 ClampHEATER HOSE (NATURAL) |
79746-S5A-003 |
US $3.02 |
||
|
8
|
8
91405-PK1-003
Clip, WATER HOSE, 24MM
|
91405-PK1-003 |
— | ||
| replacement | |||||
|
8
|
8
19513-PE0-003 ClampWATER HOSE (21.7MM) (CHUO SPRING) |
19513-PE0-003 |
from US $2.75 |
||
|
9
|
9
91551-SD5-003 ClampHEATER |
91551-SD5-003 |
from US $1.82 |
||
|
10
|
10
93405-060-120-4 Bolt-washer6X12 |
93405-060-120-4 |
US $0.65 |
||
