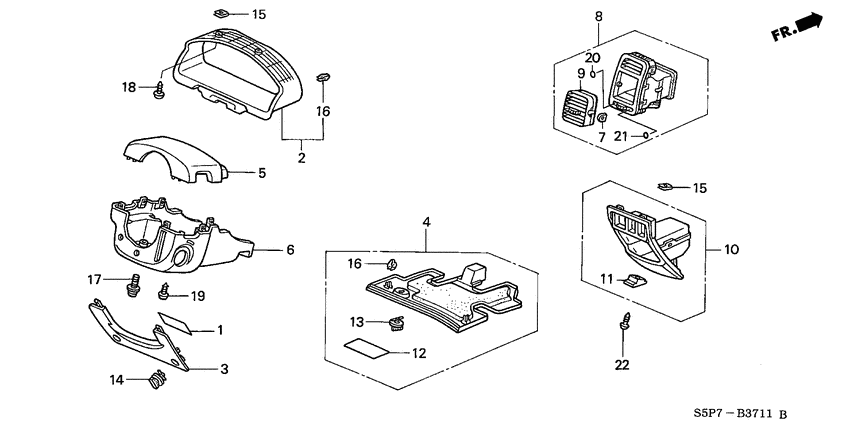

Instrument panel garnish (RH; DRIVER SIDE) Diagram Honda CIVIC
- Year
- 2001
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- D17A
- transmission
- 5MT
- Number of doors
- 2
- grade
- SE
- area code
- KE
- right-hand drive
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38205-S5P-G00
Label
|
38205-S5P-G00 |
— | ||
|
2
|
2
77200-S5A-003ZA
Visor assy
|
77200-S5A-003ZA |
— | ||
|
3
|
3
77301-S5A-003ZA CoverINSTRUMENT DRIVER LOWER *NH167L* |
77301-S5A-003ZA |
US $11.34 |
||
|
4
|
4
77320-S5A-E00ZA Cover assy.DRIVER UNDER *TBLACK 1* |
77320-S5A-E00ZA |
US $30.72 |
||
|
5
|
5
77350-S5A-A01ZA CoverCOLUMN UPPER *NH167L* |
77350-S5A-A01ZA |
US $56.41 |
||
|
6
|
6
77360-S5A-E01ZA
Cover assy.
|
77360-S5A-E01ZA |
— | ||
|
7
|
7
77631-S5A-A01 BushOUTLET |
77631-S5A-A01 |
US $1.33 |
||
|
8
|
8
77635-S5A-003ZA Outlet assyDRIVER *NH167L* |
77635-S5A-003ZA |
US $48.64 |
||
|
9
|
9
77636-S5A-A01ZA
Case comp.
|
77636-S5A-A01ZA |
— | ||
|
10
|
10
77751-S5A-000ZA Pocket comp.DRIVER *NH167L* |
77751-S5A-000ZA |
US $24.19 |
||
|
11
|
11
77756-S5A-000ZA CapDRIVER POCKET *NH167L* |
77756-S5A-000ZA |
US $2.45 |
||
|
12
|
12
77873-S04-G80 LabelSTEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH) |
77873-S04-G80 |
US $2.81 |
||
|
13
|
13
83113-SV4-003ZB LockLID *NH120L* |
83113-SV4-003ZB |
US $3.42 |
||
|
14
|
14
83113-SV4-003ZG LockLID *NH167L* |
83113-SV4-003ZG |
US $3.08 |
||
|
15
|
15
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
16
|
16
90666-S84-A01 ClipSNAP FITTING |
90666-S84-A01 |
from US $0.88 |
||
|
17
|
17
93891-050-100-7 Screw-washer5X10 |
93891-050-100-7 |
from US $0.44 |
||
|
18
|
18
93903-44480 ScrewTAPPING, 4X16 |
93903-44480 |
from US $0.37 |
||
|
19
|
19
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
22
|
22
93903-44480 ScrewTAPPING, 4X16 |
93903-44480 |
from US $0.37 |
