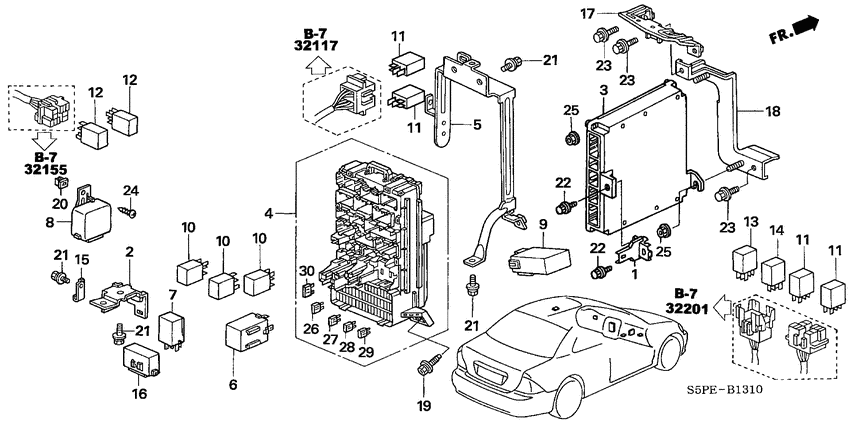

Control unit (CABIN) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- D17A
- transmission
- 5MT
- Number of doors
- 2
- grade
- ES
- area code
- KG
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32752-PLM-A00
Stay m
|
32752-PLM-A00 |
— | ||
|
2
|
2
36701-S5A-A00 BracketAUTO CRUISE & SECURITY |
36701-S5A-A00 |
US $6.16 |
||
|
3
|
3
37820-PLR-G23
Control module
|
37820-PLR-G23 |
— | ||
|
4
|
4
38200-S5P-G03
Box assy
|
38200-S5P-G03 |
— | ||
|
5
|
5
38201-S5A-A10 BracketFUSE BOX |
38201-S5A-A10 |
US $16.13 |
||
|
6
|
6
38300-S5P-A01
Relay assy
|
38300-S5P-A01 |
— | ||
|
7
|
7
38310-S6A-S02
Relay
|
38310-S6A-S02 |
— | ||
|
8
|
8
38380-S1A-E31
Relay box
|
38380-S1A-E31 |
— | ||
|
9
|
9
38385-S5A-G01 Receiver unitKEYLESS ENTRY |
38385-S5A-G01 |
US $183.04 |
||
|
10
|
10
39794-S84-A01 Relay assyPOWER (4P) (MICRO ISO) (TYCO) |
39794-S84-A01 |
US $26.11 |
||
|
10
|
10
39794-S0K-A01
Relay assy
|
39794-S0K-A01 |
— | ||
| replacement | |||||
|
10
|
10
39794-S04-014 Relay assyPOWER (4P) (MICRO ISO) (MATSUSHITA) |
39794-S04-014 |
US $23.49 |
||
|
11
|
11
39794-S0K-A01
Relay assy
|
39794-S0K-A01 |
— | ||
| replacement | |||||
|
11
|
11
39794-S04-014 Relay assyPOWER (4P) (MICRO ISO) (MATSUSHITA) |
39794-S04-014 |
US $23.49 |
||
|
12
|
12
39794-S10-003 Relay assyPOWER(5P) (MICRO ISO)(MITSUBA) |
39794-S10-003 |
US $19.45 |
||
|
13
|
13
39794-S5A-004 Relay assyFUEL PUMP(5P) (DENSO) |
39794-S5A-004 |
US $21.12 |
||
|
14
|
14
39794-S5A-902 Relay assyENGINE CONTROL MODULE(4P)(DENSO) |
39794-S5A-902 |
US $21.12 |
||
|
15
|
15
39796-ST3-E00 BracketKEY LIGHT TIMER |
39796-ST3-E00 |
US $7 |
||
|
16
|
16
39880-S5A-G01 Security unit |
39880-S5A-G01 |
US $195.84 |
||
|
17
|
17
79101-S5D-A01 BracketHEATER |
79101-S5D-A01 |
US $4.20 |
||
|
18
|
18
79820-S5D-A01 BracketENGINE CONTROL MODULE |
79820-S5D-A01 |
US $7.98 |
||
|
19
|
19
90137-SF1-000 Bolt-washer6X25 |
90137-SF1-000 |
US $2.12 |
||
|
20
|
20
90662-SB2-003 GrommetSCREW, 5MM |
90662-SB2-003 |
US $1.85 |
||
|
21
|
21
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
22
|
22
93404-060-160-8 Bolt-washer6X16 |
93404-060-160-8 |
from US $0.52 |
||
|
23
|
23
93405-060-200-8 Bolt-washer6X20 |
93405-060-200-8 |
from US $0.59 |
||
|
24
|
24
93903-45220 ScrewTAPPING, 5X12 |
93903-45220 |
US $0.37 |
||
|
25
|
25
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
26
|
26
98200-40750 FuseMINI (7.5A) |
98200-40750 |
from US $0.52 |
||
|
27
|
27
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.52 |
||
|
28
|
28
98200-41500 FuseMINI(15A) |
98200-41500 |
from US $0.52 |
||
|
29
|
29
98200-42000 FuseMINI (20A) |
98200-42000 |
from US $0.52 |
||
|
30
|
30
98200-43000 FuseMINI (30A) |
98200-43000 |
from US $0.74 |
||
