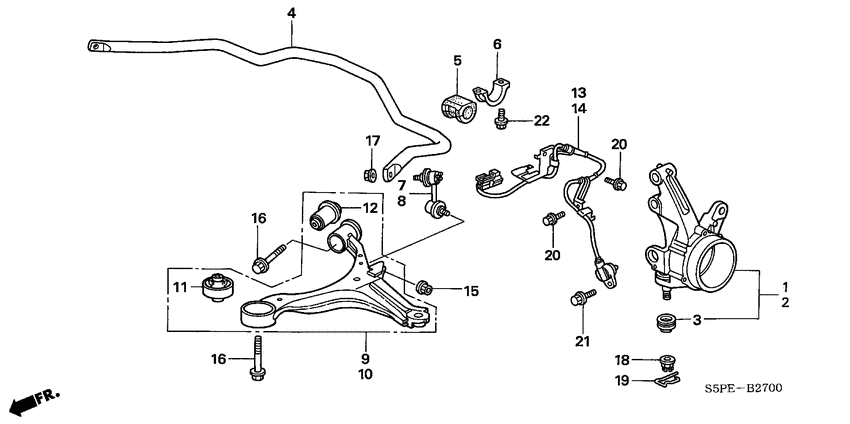

Knuckle Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- D17A
- transmission
- 5MT
- Number of doors
- 2
- grade
- ES
- area code
- KG
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51210-S5A-J30
Knuckle comp
|
51210-S5A-J30 |
— | ||
|
2
|
2
51215-S5A-J30 Knuckle compL. FR. |
51215-S5A-J30 |
US $181.76 |
||
|
3
|
3
51225-S5A-003 BootLOWER BALL DUST |
51225-S5A-003 |
from US $8.91 |
||
|
4
|
4
51300-S5D-A02
Spring
|
51300-S5D-A02 |
— | ||
|
5
|
5
51306-S5D-801
Bush
|
51306-S5D-801 |
— | ||
|
6
|
6
51308-S5A-000 HolderFR. STABILIZER |
51308-S5A-000 |
US $5.04 |
||
|
7
|
7
51320-S5A-003 RH FR. STABILIZER LINK |
51320-S5A-003 |
US $70.31 |
||
|
8
|
8
51321-S5A-003 LH FR. STABILIZER LINK |
51321-S5A-003 |
US $70.31 |
||
|
9
|
9
51350-S5A-A20
Arm comp
|
51350-S5A-A20 |
— | ||
|
10
|
10
51360-S5A-A20
Arm comp
|
51360-S5A-A20 |
— | ||
|
11
|
11
51391-S5A-801 BushFR. COMPLIANCE (YAMASHITA) |
51391-S5A-801 |
from US $15.74 |
||
|
12
|
12
51392-S5A-801 BushFR. LOWER ARM (YAMASHITA) |
51392-S5A-801 |
US $15.74 |
||
|
13
|
13
57450-S5D-951 Sensor assyR. FR. |
57450-S5D-951 |
US $143.36 |
||
|
14
|
14
57455-S5D-951 Sensor assyL. FR. |
57455-S5D-951 |
US $143.36 |
||
|
15
|
15
90002-S10-000 NutFLANGE, 10MM |
90002-S10-000 |
from US $2.29 |
||
|
16
|
16
90118-S5A-000 BoltFLANGE, 14X91 |
90118-S5A-000 |
from US $5.67 |
||
|
17
|
17
90306-SB2-013 NutSELF-LOCK, 10MM (CLINCH) |
90306-SB2-013 |
US $3.02 |
||
|
18
|
18
90363-S47-000 NutLOWER ARM, 12MM |
90363-S47-000 |
US $3.42 |
||
|
19
|
19
90701-SX0-003 ClipUPPER ARM |
90701-SX0-003 |
US $2.44 |
||
|
20
|
20
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
21
|
21
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
22
|
22
95701-100-180-8 BoltFLANGE, 10X18 |
95701-100-180-8 |
from US $0.74 |
