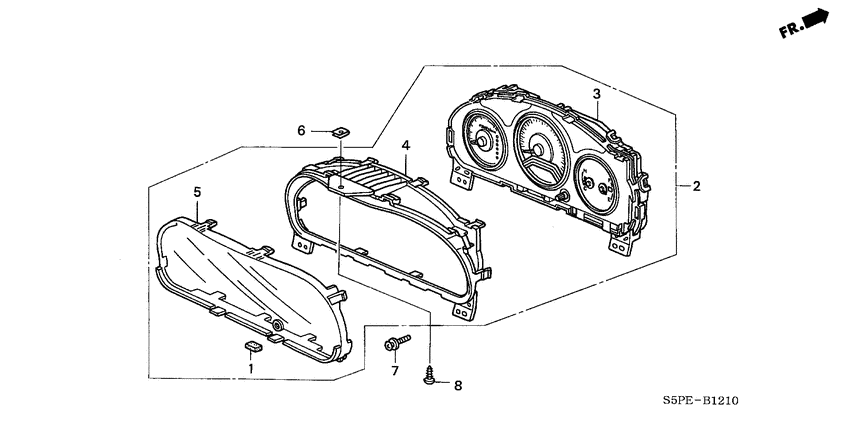

Meter components (NS) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- D17A
- transmission
- 5MT
- Number of doors
- 2
- grade
- ES
- area code
- KG
- leather seat
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37115-SA0-601 PackingNS |
37115-SA0-601 |
US $2.59 |
||
|
2
|
2
78100-S5P-F22
Meter assy
|
78100-S5P-F22 |
— | ||
|
3
|
3
78120-S5P-F22
Meter assy
|
78120-S5P-F22 |
— | ||
|
4
|
4
78155-S5A-J21
Visor assy
|
78155-S5A-J21 |
— | ||
|
5
|
5
78156-S5B-J51
Lens
|
78156-S5B-J51 |
— | ||
|
6
|
6
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
7
|
7
93894-040-200-8 Screw-washer4X20 |
93894-040-200-8 |
US $0.44 |
||
|
8
|
8
93903-44480 ScrewTAPPING, 4X16 |
93903-44480 |
from US $0.37 |
