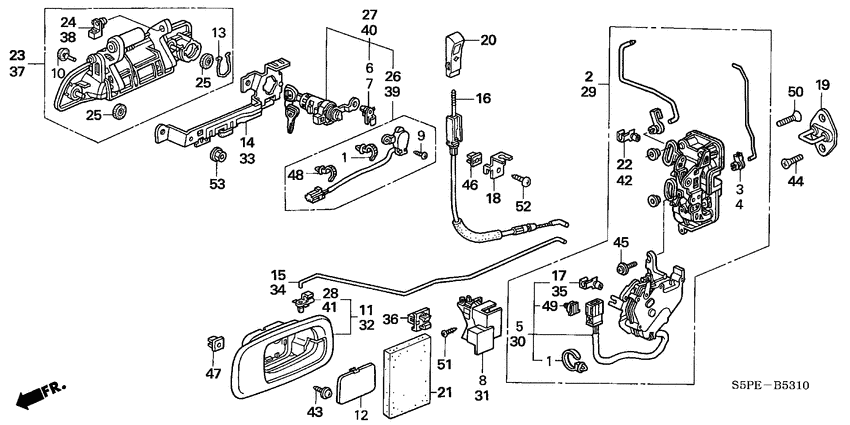

Door locks Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- D17A
- transmission
- 4AT
- Number of doors
- 2
- grade
- ES
- area code
- KG
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32132-SM4-003 BandWIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
32132-SM4-003 |
US $2.73 |
||
|
2
|
2
72110-S5P-G01
Lock assy
|
72110-S5P-G01 |
— | ||
|
3
|
3
72112-SR4-004
Snap
|
72112-SR4-004 |
— | ||
|
4
|
4
72113-SR4-004
Snap
|
72113-SR4-004 |
— | ||
|
5
|
5
72115-S5P-G01
Actuator assy
|
72115-S5P-G01 |
— | ||
|
6
|
6
72116-S04-003 HolderROD(SKY BLUE) |
72116-S04-003 |
US $2.31 |
||
|
7
|
7
72117-S04-003 HolderROD (YELLOW) |
72117-S04-003 |
US $2.31 |
||
|
8
|
8
72117-S5P-E01
Protector
|
72117-S5P-E01 |
— | ||
|
9
|
9
72118-ST7-003 ScrewTAPPING, 3X5 |
72118-ST7-003 |
US $1.05 |
||
|
10
|
10
72119-S04-003
Stopper a
|
72119-S04-003 |
— | ||
|
11
|
11
72120-S5P-A01ZA
Handle assy
|
72120-S5P-A01ZA |
— | ||
|
12
|
12
72121-S5A-003ZA CapINSIDE HANDLE *NH167L* |
72121-S5A-003ZA |
US $4.20 |
||
|
13
|
13
72123-SR0-003 RingOUTSIDE HANDLE |
72123-SR0-003 |
US $1.40 |
||
|
14
|
14
72130-S5P-E00
Protector assy
|
72130-S5P-E00 |
— | ||
|
15
|
15
72131-S5P-G01
Rod
|
72131-S5P-G01 |
— | ||
|
16
|
16
72132-S5P-A01
Cable
|
72132-S5P-A01 |
— | ||
|
17
|
17
72134-SM4-003
Snap
|
72134-SM4-003 |
— | ||
|
18
|
18
72134-S5P-A00
Bracket
|
72134-S5P-A00 |
— | ||
|
19
|
19
72135-S5A-003
Striker assy
|
72135-S5A-003 |
— | ||
|
20
|
20
72137-S2X-003ZE KnobINSIDE DOOR LOCK *NH167L* |
72137-S2X-003ZE |
US $5.18 |
||
|
21
|
21
72138-S5P-000
Cushion
|
72138-S5P-000 |
— | ||
|
22
|
22
72139-SR0-A01
Snap
|
72139-SR0-A01 |
— | ||
|
23
|
23
72140-S5A-J02ZA Handle assyR. FR. DOOR OUTSIDE *B92P* |
72140-S5A-J02ZA |
US $71.40 |
||
|
23
|
23
72140-S5A-J02ZE Handle assyR. FR. DOOR OUTSIDE *NH623M* |
72140-S5A-J02ZE |
US $71.40 |
||
|
23
|
23
72140-S5A-J02ZW Handle assyR. FR. DOOR OUTSIDE *G511M* |
72140-S5A-J02ZW |
US $60.93 |
||
|
23
|
23
72140-S5A-J02YB
Handle assy
|
72140-S5A-J02YB |
— | ||
|
23
|
23
72140-S5A-J02ZD
Handle assy
|
72140-S5A-J02ZD |
— | ||
|
23
|
23
72140-S5A-J02ZQ
Handle assy
|
72140-S5A-J02ZQ |
— | ||
|
23
|
23
72140-S5A-J02YA Handle assyR. FR. DOOR OUTSIDE *NH675M* |
72140-S5A-J02YA |
US $67.20 |
||
|
24
|
24
72141-SD4-004 BushR. JOINT |
72141-SD4-004 |
US $1.68 |
||
|
25
|
25
72141-S5A-003 Packing |
72141-S5A-003 |
US $4.80 |
||
|
26
|
26
72142-S5P-E10
Switch assy
|
72142-S5P-E10 |
— | ||
|
27
|
27
72145-S5P-E52
Cylinder
|
72145-S5P-E52 |
— | ||
|
28
|
28
72149-SR4-000
Snap
|
72149-SR4-000 |
— | ||
|
29
|
29
72150-S5P-G01
Lock assy
|
72150-S5P-G01 |
— | ||
|
30
|
30
72155-S5P-G01
Actuator assy
|
72155-S5P-G01 |
— | ||
|
31
|
31
72157-S5P-E01
Protector
|
72157-S5P-E01 |
— | ||
|
32
|
32
72160-S5P-A01ZA
Handle assy
|
72160-S5P-A01ZA |
— | ||
|
33
|
33
72170-S5P-E00
Protector assy
|
72170-S5P-E00 |
— | ||
|
34
|
34
72171-S5P-G01
Rod
|
72171-S5P-G01 |
— | ||
|
35
|
35
72174-SM4-003
Snap
|
72174-SM4-003 |
— | ||
|
36
|
36
72175-SH3-003 HolderDOOR LOCK ROD |
72175-SH3-003 |
US $2.93 |
||
|
37
|
37
72180-S5A-J02ZA Handle assyL. FR. DOOR OUTSIDE *B92P* |
72180-S5A-J02ZA |
US $71.40 |
||
|
37
|
37
72180-S5A-J02ZE Handle assyL. FR. DOOR OUTSIDE *NH623M* |
72180-S5A-J02ZE |
US $67.20 |
||
|
37
|
37
72180-S5A-J02ZW Handle assyL. FR. DOOR OUTSIDE *G511M* |
72180-S5A-J02ZW |
US $60.93 |
||
|
37
|
37
72180-S5A-J02YB
Handle assy
|
72180-S5A-J02YB |
— | ||
|
37
|
37
72180-S5A-J02ZD
Handle assy
|
72180-S5A-J02ZD |
— | ||
|
37
|
37
72180-S5A-J02ZQ
Handle assy
|
72180-S5A-J02ZQ |
— | ||
|
37
|
37
72180-S5A-J02YA
Handle assy
|
72180-S5A-J02YA |
— | ||
|
38
|
38
72181-SD4-004 BushL. JOINT |
72181-SD4-004 |
US $1.68 |
||
|
39
|
39
72182-S5P-E10
Switch assy
|
72182-S5P-E10 |
— | ||
|
40
|
40
72185-S5P-E52
Cylinder
|
72185-S5P-E52 |
— | ||
|
41
|
41
72189-SR4-000
Snap
|
72189-SR4-000 |
— | ||
|
42
|
42
72616-SM4-003
Snap
|
72616-SM4-003 |
— | ||
|
43
|
43
90120-SM4-000 ScrewTAPPING |
90120-SM4-000 |
US $1.55 |
||
|
44
|
44
90120-SV4-000 BoltLOCK STRIKER |
90120-SV4-000 |
US $1.79 |
||
|
45
|
45
90141-S84-003 Screw3X10 |
90141-S84-003 |
US $1.19 |
||
|
46
|
46
90662-SB2-003 GrommetSCREW, 5MM |
90662-SB2-003 |
US $1.85 |
||
|
47
|
47
90866-SA0-000 GrommetSCREW, 4MM |
90866-SA0-000 |
from US $2.37 |
||
|
48
|
48
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $3.26 |
||
|
49
|
49
91580-SM4-003 ClipCOUPLER(ORANGE) |
91580-SM4-003 |
from US $1.68 |
||
|
50
|
50
93600-060-280-A ScrewFLAT, 6X28 |
93600-060-280-A |
from US $0.52 |
||
|
51
|
51
93901-22120 ScrewTAPPING, 3X8 |
93901-22120 |
from US $0.37 |
||
|
52
|
52
93903-45220 ScrewTAPPING, 5X12 |
93903-45220 |
US $0.37 |
||
|
53
|
53
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
