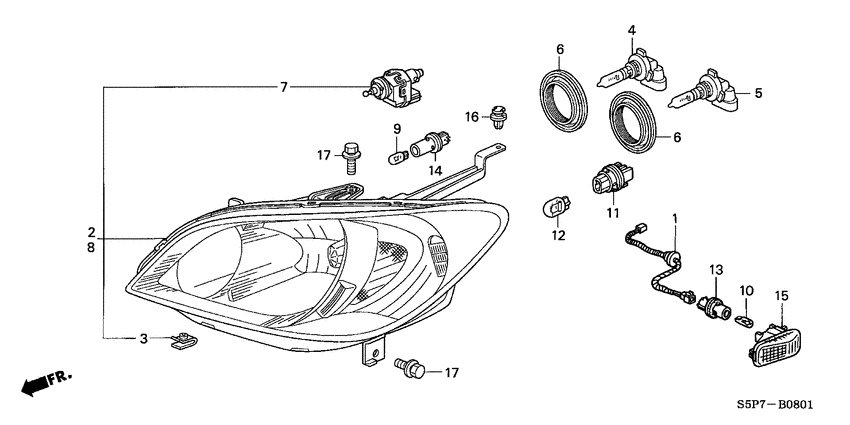

Headlight ('04) Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- D17A
- transmission
- 5MT
- Number of doors
- 2
- grade
- LS
- area code
- KG
- left-hand drive
- +
- air conditioner (dealer set)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32118-S5A-900
Cord
|
32118-S5A-900 |
— | ||
|
2
|
2
33101-S5A-G51
Headlight unit
|
33101-S5A-G51 |
— | ||
|
3
|
3
33105-S5N-C01 NutSPECIAL |
33105-S5N-C01 |
US $3.58 |
||
|
4
|
4
33115-S84-A01 BulbHEADLIGHT (HB3) (12V 60W) (SYLVANIA) |
33115-S84-A01 |
from US $15.35 |
||
|
5
|
5
33116-S84-A01 BulbHEADLIGHT (HB4) (12V 51W) (SYLVANIA) |
33116-S84-A01 |
US $19.20 |
||
|
6
|
6
33126-SDA-A01 CoverRUBBER |
33126-SDA-A01 |
US $11.20 |
||
|
7
|
7
33130-S5A-G01 Adjuster unitHEADLIGHT |
33130-S5A-G01 |
US $230.40 |
||
|
8
|
8
33151-S5A-G51 Headlight unitL. |
33151-S5A-G51 |
US $401.89 |
||
|
9
|
9
33301-SA0-741 Bulb (12V 5W)(12V 5W) (STANLEY) |
33301-SA0-741 |
from US $2.37 |
||
|
10
|
10
33301-S5H-T01 BulbWEDGE BASE (WY 12V 5W) (STANLEY) (AMBER) |
33301-S5H-T01 |
US $2.66 |
||
|
11
|
11
33303-SAA-003 Socket compT20 S) (AMBER |
33303-SAA-003 |
from US $7.55 |
||
|
12
|
12
33303-S2R-003 BulbWEDGE (12V 21W) (STANLEY) (AMBER) |
33303-S2R-003 |
from US $2.96 |
||
|
13
|
13
33304-S5A-003 Socket compT10 |
33304-S5A-003 |
from US $7.33 |
||
|
14
|
14
33305-S5A-003
Socket comp
|
33305-S5A-003 |
— | ||
|
15
|
15
34301-S5H-T02 Lamp unit |
34301-S5H-T02 |
from US $14 |
||
|
16
|
16
91512-SX0-003 ClipINNER FENDER CLIP |
91512-SX0-003 |
from US $1.98 |
||
|
17
|
17
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
