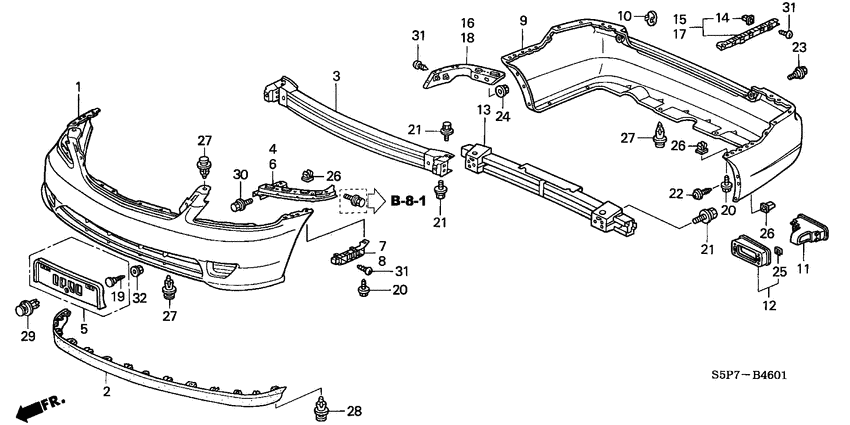

Bumpers ('04) Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- D17A
- transmission
- 5MT
- Number of doors
- 2
- grade
- LS
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71101-S5A-G11ZK
Face
|
71101-S5A-G11ZK |
— | ||
|
1
|
1
71101-S5A-G11ZS
Face
|
71101-S5A-G11ZS |
— | ||
|
1
|
1
71101-S5A-G11ZA
Face
|
71101-S5A-G11ZA |
— | ||
|
1
|
1
71101-S5A-G11ZE
Face
|
71101-S5A-G11ZE |
— | ||
|
1
|
1
71101-S5A-G11ZM
Face
|
71101-S5A-G11ZM |
— | ||
|
1
|
1
71101-S5A-G11ZT
Face
|
71101-S5A-G11ZT |
— | ||
|
1
|
1
71101-S5A-G11ZD
Face
|
71101-S5A-G11ZD |
— | ||
|
2
|
2
71110-S5A-A01ZA
Spoiler
|
71110-S5A-A01ZA |
— | ||
|
3
|
3
71130-S5A-000ZZ Beam compFR. BUMPER |
71130-S5A-000ZZ |
US $244.48 |
||
|
4
|
4
71140-S5A-010 Beam compR. FR. BUMPER UPPER |
71140-S5A-010 |
from US $22.64 |
||
|
5
|
5
71145-S5A-G01 BaseFR. LICENSE PLATE |
71145-S5A-G01 |
US $47.36 |
||
|
6
|
6
71190-S5A-010 Beam compL. FR. BUMPER UPPER |
71190-S5A-010 |
US $24.32 |
||
|
7
|
7
71193-S5A-003 SpacerR. FR. BUMPER SIDE |
71193-S5A-003 |
from US $11.75 |
||
|
8
|
8
71198-S5A-003 SpacerL. FR. BUMPER SIDE |
71198-S5A-003 |
US $11.75 |
||
|
9
|
9
71501-S5P-G01ZL
Face
|
71501-S5P-G01ZL |
— | ||
|
9
|
9
71501-S5P-G01ZA
Face
|
71501-S5P-G01ZA |
— | ||
|
9
|
9
71501-S5P-G01ZE
Face
|
71501-S5P-G01ZE |
— | ||
|
9
|
9
71501-S5P-G01ZJ
Face
|
71501-S5P-G01ZJ |
— | ||
|
9
|
9
71501-S5P-G01ZM
Face
|
71501-S5P-G01ZM |
— | ||
|
9
|
9
71501-S5P-G01ZD
Face
|
71501-S5P-G01ZD |
— | ||
|
9
|
9
71501-S5P-G01ZF
Face
|
71501-S5P-G01ZF |
— | ||
|
10
|
10
71503-S5A-000 CapRR. BUMPER |
71503-S5A-000 |
US $3.29 |
||
|
11
|
11
71516-S5P-G00
Garnish
|
71516-S5P-G00 |
— | ||
|
12
|
12
71517-S5P-G00
Garnish
|
71517-S5P-G00 |
— | ||
|
13
|
13
71530-S5D-A00ZZ
Beam comp
|
71530-S5D-A00ZZ |
— | ||
|
14
|
14
71591-S5A-000 Grommet & seal setA |
71591-S5A-000 |
US $2.31 |
||
|
15
|
15
71593-S5A-000 SpacerR. RR. BUMPER SIDE |
71593-S5A-000 |
US $14.22 |
||
|
16
|
16
71594-S5P-A00
Spacer
|
71594-S5P-A00 |
— | ||
|
17
|
17
71598-S5A-000 SpacerL. RR. BUMPER SIDE |
71598-S5A-000 |
US $14.22 |
||
|
18
|
18
71599-S5P-A00
Spacer
|
71599-S5P-A00 |
— | ||
|
19
|
19
90103-SP0-000 BoltCORNER CLIP |
90103-SP0-000 |
US $3.77 |
||
|
20
|
20
90109-SS0-000 ScrewTAPPING, 5X20 |
90109-SS0-000 |
US $2.07 |
||
|
21
|
21
90110-SE7-000 Bolt-washer8X21 |
90110-SE7-000 |
US $1.40 |
||
|
22
|
22
90126-SR4-000 Screw-washer5X16 |
90126-SR4-000 |
from US $2.72 |
||
|
23
|
23
90149-SA0-000 BoltBUMPER |
90149-SA0-000 |
US $2.45 |
||
|
24
|
24
90301-SP0-003 NutPAINT CUTTING, 6MM |
90301-SP0-003 |
US $2.59 |
||
|
25
|
25
90303-SA5-003 NutFR. COMBINATION LIGHT |
90303-SA5-003 |
US $2.22 |
||
|
26
|
26
90682-SB0-003 GrommetSCREW, 5MM |
90682-SB0-003 |
US $1.55 |
||
|
27
|
27
91503-SZ3-003 Clip A |
91503-SZ3-003 |
from US $1.94 |
||
|
28
|
28
91503-SZ5-003 ClipBUMPER FACE |
91503-SZ5-003 |
from US $1.75 |
||
|
29
|
29
91512-SX0-003 ClipINNER FENDER CLIP |
91512-SX0-003 |
from US $1.98 |
||
|
30
|
30
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
31
|
31
93903-25320 ScrewTAPPING, 5X16 |
93903-25320 |
from US $0.22 |
||
|
32
|
32
94071-06080 Nut-washer6MM |
94071-06080 |
from US $0.52 |
