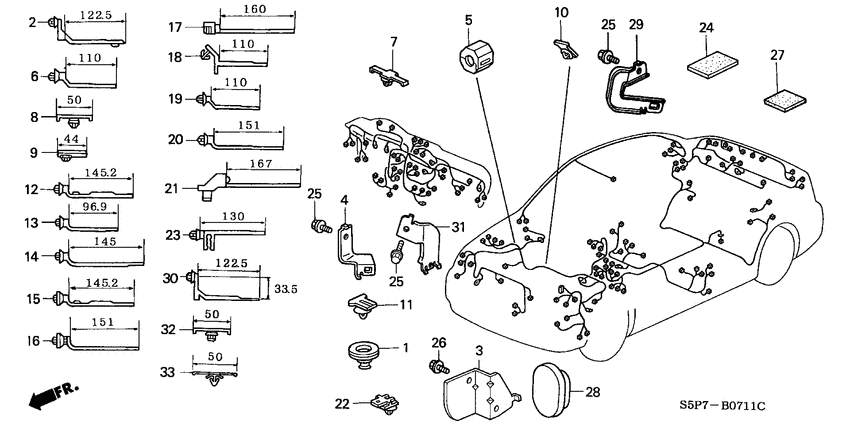

Harness band/bracket (RH) Diagram Honda CIVIC
- Year
- 2003
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- D17A
- transmission
- 5MT
- Number of doors
- 2
- grade
- SE
- area code
- KE
- right-hand drive
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32103-679-000 GrommetWIRE HARNESS(BLACK) |
32103-679-000 |
US $5.74 |
||
|
3
|
3
32203-S5A-000 BracketWIRE HARNESS |
32203-S5A-000 |
US $4.90 |
||
|
5
|
5
38617-S5A-J01 Filter compNOISE |
38617-S5A-J01 |
US $7.56 |
||
|
6
|
6
91507-SL9-003 ClipWIRE HARNESS (GREEN) (110MM) (7MM HOLE) |
91507-SL9-003 |
from US $1.68 |
||
|
7
|
7
91507-752-003 ClipWIRE HARNESS(GRAY)(50MM) |
91507-752-003 |
US $11.90 |
||
|
8
|
8
91510-SA5-003 ClipOFFSET(10)(BROWN)(50MM) |
91510-SA5-003 |
US $2.38 |
||
|
9
|
9
91531-S04-003 ClipWIRE HARNESS(NATURAL) (44MM) |
91531-S04-003 |
US $1.33 |
||
|
10
|
10
91531-S84-003 ClipWIRE HARNESS(NATURAL) (44MM)(WITH SEAL) |
91531-S84-003 |
US $2.17 |
||
|
11
|
11
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.47 |
||
|
12
|
12
91540-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) |
91540-SV4-003 |
from US $2.81 |
||
|
13
|
13
91540-S0A-003 ClipHARNESS BAND(NATURAL) (96.9MM) |
91540-S0A-003 |
from US $2.29 |
||
|
14
|
14
91541-S0A-003 ClipHARNESS BAND(BLACK) (145MM) |
91541-S0A-003 |
from US $2.18 |
||
|
15
|
15
91545-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
91545-SV4-003 |
US $3.11 |
||
|
16
|
16
91545-S2A-003 ClipHARNESS BAND (BROWN) (151MM) (WITH SEAL) |
91545-S2A-003 |
US $1.89 |
||
|
17
|
17
91547-SH3-003 ClipBAND(NATURAL)(160MM) |
91547-SH3-003 |
US $2.52 |
||
|
19
|
19
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $2.59 |
||
|
20
|
20
91551-SW5-003 ClipHARNESS BAND (BROWN) (151MM) |
91551-SW5-003 |
from US $1.61 |
||
|
21
|
21
91559-S47-003 ClipHARNESS BAND(NATURAL) (167MM) |
91559-S47-003 |
US $2.03 |
||
|
22
|
22
91565-S0X-003 ClipCOUPLER (DARK GREEN) |
91565-S0X-003 |
from US $1.61 |
||
|
23
|
23
91571-S10-003 ClipWIRE HARNESS (NATURAL) (130MM) |
91571-S10-003 |
US $1.89 |
||
|
24
|
24
91902-SB2-003 CushionWIRE HARNESS(50X100) |
91902-SB2-003 |
from US $2.96 |
||
|
26
|
26
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
28
|
28
32126-S5A-000 GrommetHOLE SEAL |
32126-S5A-000 |
US $2.73 |
||
|
30
|
30
32132-S6A-003 BandWIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) |
32132-S6A-003 |
US $2.73 |
||
|
32
|
32
90627-SA5-003 ClipWIRE HARNESS(BLUE) (HARNESS TAPING)(50MM) |
90627-SA5-003 |
from US $1.82 |
||
|
33
|
33
90677-692-003 ClipWIRE HARNESS (HARNESS TAPING) |
90677-692-003 |
US $2.31 |
