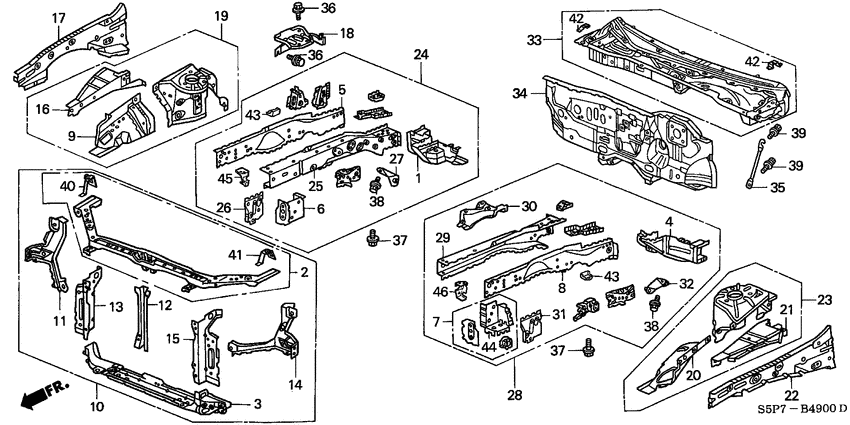

Front bulkhead Diagram Honda CIVIC
- Year
- 2003
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- D17A
- transmission
- 4AT
- Number of doors
- 2
- grade
- VTI
- area code
- KY
- left-hand drive
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04600-S5A-A01ZZ
Outrigger set
|
04600-S5A-A01ZZ |
— | ||
|
2
|
2
04602-S5D-A00ZZ Frame setFR. BULKHEAD UPPER |
04602-S5D-A00ZZ |
US $95.36 |
||
|
3
|
3
04603-S5D-A01ZZ
Crossmember set
|
04603-S5D-A01ZZ |
— | ||
|
4
|
4
04605-S5A-A01ZZ
Outrigger set
|
04605-S5A-A01ZZ |
— | ||
|
5
|
5
04606-S5D-A00ZZ
Panel set
|
04606-S5D-A00ZZ |
— | ||
|
6
|
6
04610-S5A-A02ZZ Extension setR. FR. SIDE |
04610-S5A-A02ZZ |
US $25.47 |
||
|
7
|
7
04615-S5A-A02ZZ Extension setL. FR. SIDE |
04615-S5A-A02ZZ |
US $28.03 |
||
|
8
|
8
04616-S5D-A00ZZ
Panel set
|
04616-S5D-A00ZZ |
— | ||
|
9
|
9
04642-S5A-A00ZZ
Wheelhouse sub set
|
04642-S5A-A00ZZ |
— | ||
|
10
|
10
60400-S5D-X02ZZ
Bulkhead comp.
|
60400-S5D-X02ZZ |
— | ||
|
11
|
11
60411-S5A-A01ZZ BulkheadR. FR. SIDE |
60411-S5A-A01ZZ |
US $31.49 |
||
|
12
|
12
60434-S5A-A00ZZ
Stay
|
60434-S5A-A00ZZ |
— | ||
|
13
|
13
60435-S5D-X00ZZ
Stay
|
60435-S5D-X00ZZ |
— | ||
|
14
|
14
60461-S5A-A00ZZ BulkheadL. FR. SIDE |
60461-S5A-A00ZZ |
US $31.49 |
||
|
15
|
15
60485-S5D-X00ZZ
Stay
|
60485-S5D-X00ZZ |
— | ||
|
16
|
16
60613-S5A-A00ZZ ExtensionR. FR. SHOCK ABSORBER |
60613-S5A-A00ZZ |
US $40.58 |
||
|
17
|
17
60614-S5A-300ZZ MemberR. FR. WHEELHOUSE UPPER |
60614-S5A-300ZZ |
US $46.85 |
||
|
18
|
18
60630-S5A-A00ZZ Base comp.BATTERY SETTING |
60630-S5A-A00ZZ |
US $33.15 |
||
|
19
|
19
60650-S5A-A00ZZ
Housing comp
|
60650-S5A-A00ZZ |
— | ||
|
20
|
20
60711-S5A-A00ZZ
Wheelhouse
|
60711-S5A-A00ZZ |
— | ||
|
21
|
21
60713-S5A-A00ZZ ExtensionL. FR. SHOCK ABSORBER |
60713-S5A-A00ZZ |
US $40.58 |
||
|
22
|
22
60714-S5A-300ZZ MemberL. FR. WHEELHOUSE UPPER |
60714-S5A-300ZZ |
US $51.84 |
||
|
23
|
23
60750-S5A-A01ZZ
Housing comp
|
60750-S5A-A01ZZ |
— | ||
|
24
|
24
60810-S5D-A10ZZ
Frame comp
|
60810-S5D-A10ZZ |
— | ||
|
25
|
25
60811-S5A-A10ZZ FrameR. FR. SIDE |
60811-S5A-A10ZZ |
US $81.92 |
||
|
26
|
26
60829-S5A-A00ZZ Bracket bR. FR. SUBFRAME |
60829-S5A-A00ZZ |
US $15.23 |
||
|
27
|
27
60837-S5A-000ZZ
Stay
|
60837-S5A-000ZZ |
— | ||
|
28
|
28
60910-S5D-A10ZZ
Frame comp
|
60910-S5D-A10ZZ |
— | ||
|
29
|
29
60911-S5A-A10ZZ
Frame
|
60911-S5A-A10ZZ |
— | ||
|
30
|
30
60920-S5D-A00ZZ Bracket comp.ENGINE MOUNTING |
60920-S5D-A00ZZ |
US $48 |
||
|
31
|
31
60929-S5A-A00ZZ Bracket bL. FR. SUBFRAME |
60929-S5A-A00ZZ |
US $16.77 |
||
|
32
|
32
60937-S5A-000ZZ
Stay
|
60937-S5A-000ZZ |
— | ||
|
33
|
33
61100-S5D-A00ZZ
Dashboard comp.
|
61100-S5D-A00ZZ |
— | ||
|
34
|
34
61500-S5D-A00ZZ
Dashboard comp.
|
61500-S5D-A00ZZ |
— | ||
|
35
|
35
74232-S5A-000 RodBRAKE PEDAL SUPPORT |
74232-S5A-000 |
US $7.98 |
||
|
36
|
36
90105-634-000 Bolt-washer (8x20)8x20 |
90105-634-000 |
US $3.02 |
||
|
37
|
37
93405-080-200-8 Bolt-washer8X20 |
93405-080-200-8 |
from US $0.74 |
||
|
38
|
38
90101-S6A-000 Bolt-washer8MM |
90101-S6A-000 |
US $1.82 |
||
|
39
|
39
93407-080-160-8 Bolt-washer8X16 |
93407-080-160-8 |
US $0.74 |
||
|
40
|
40
60438-S5A-300ZZ BracketR. FR. FENDER |
60438-S5A-300ZZ |
US $5.88 |
||
|
41
|
41
60488-S5A-300ZZ BracketL. FR. FENDER |
60488-S5A-300ZZ |
US $5.88 |
||
|
42
|
42
61128-S5A-A00ZZ
Stay
|
61128-S5A-A00ZZ |
— | ||
|
44
|
44
60928-S5A-J00ZZ Bracket aL. FR. SUBFRAME |
60928-S5A-J00ZZ |
US $18.69 |
||
|
45
|
45
60830-S5A-A00ZZ BulkheadR. FR. SIDE FRAME |
60830-S5A-A00ZZ |
US $7.56 |
||
|
46
|
46
60930-S5A-A00ZZ BulkheadL. FR. SIDE FRAME |
60930-S5A-A00ZZ |
US $7.28 |
