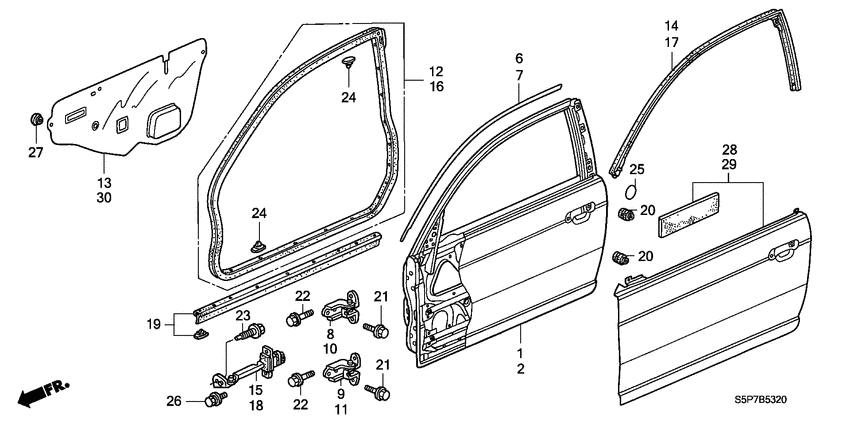

Door panels Diagram Honda CIVIC
- Year
- 2002
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- D17A
- transmission
- 5MT
- Number of doors
- 2
- grade
- ES
- area code
- KR
- left-hand drive
- +
- air conditioner (auto)
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67010-S5P-A00ZZ
Panel comp
|
67010-S5P-A00ZZ |
— | ||
|
2
|
2
67050-S5P-A00ZZ
Panel comp
|
67050-S5P-A00ZZ |
— | ||
|
6
|
6
67326-S5P-A00
Tape
|
67326-S5P-A00 |
— | ||
|
7
|
7
67366-S5P-A00
Tape
|
67366-S5P-A00 |
— | ||
|
8
|
8
67410-S5P-A01ZZ
Hinge
|
67410-S5P-A01ZZ |
— | ||
|
9
|
9
67420-S5P-A01ZZ
Hinge
|
67420-S5P-A01ZZ |
— | ||
|
10
|
10
67450-S5P-A01ZZ
Hinge
|
67450-S5P-A01ZZ |
— | ||
|
11
|
11
67460-S5P-A01ZZ
Hinge
|
67460-S5P-A01ZZ |
— | ||
|
12
|
12
72310-S5P-A01
Weatherstrip
|
72310-S5P-A01 |
— | ||
|
13
|
13
72321-S5P-A10
Seal
|
72321-S5P-A10 |
— | ||
|
14
|
14
72325-S5P-A01
Sub seal
|
72325-S5P-A01 |
— | ||
|
15
|
15
72340-S5P-A01
Checker comp.
|
72340-S5P-A01 |
— | ||
|
16
|
16
72350-S5P-A01
Weatherstrip
|
72350-S5P-A01 |
— | ||
|
17
|
17
72365-S5P-A01
Sub seal
|
72365-S5P-A01 |
— | ||
|
18
|
18
72380-S5P-A01
Checker comp.
|
72380-S5P-A01 |
— | ||
|
19
|
19
72435-S5P-A01
Seal
|
72435-S5P-A01 |
— | ||
|
20
|
20
75891-SA7-000 StopperDOOR |
75891-SA7-000 |
US $1.70 |
||
|
21
|
21
90101-SZ3-000 BoltFLANGE, 8X22 (8.5MM) |
90101-SZ3-000 |
US $1.89 |
||
|
22
|
22
90102-S3N-003 BoltFLANGE, 8X24.5 (10.5MM) |
90102-S3N-003 |
US $1.61 |
||
|
22
|
22
90102-SFA-305 BoltFLANGE, 8X18 (SERVICE) |
90102-SFA-305 |
US $1.61 |
||
|
23
|
23
90141-S04-000 BoltFLANGE, 8X22 |
90141-S04-000 |
US $1.75 |
||
|
24
|
24
91568-SR2-003
Clip
|
91568-SR2-003 |
— | ||
| replacement | |||||
|
24
|
24
91530-SP1-003 Clip ADOOR WEATHERSTRIP |
91530-SP1-003 |
US $1.72 |
||
|
25
|
25
91651-S84-A00
Seal
|
91651-S84-A00 |
— | ||
|
26
|
26
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
27
|
27
95550-12000 PlugBLIND, 12MM |
95550-12000 |
US $1.55 |
||
|
28
|
28
67111-S5P-305ZZ
Skin set
|
67111-S5P-305ZZ |
— | ||
|
29
|
29
67151-S5P-305ZZ
Skin set
|
67151-S5P-305ZZ |
— | ||
|
30
|
30
72361-S5P-A30
Seal
|
72361-S5P-A30 |
— | ||
