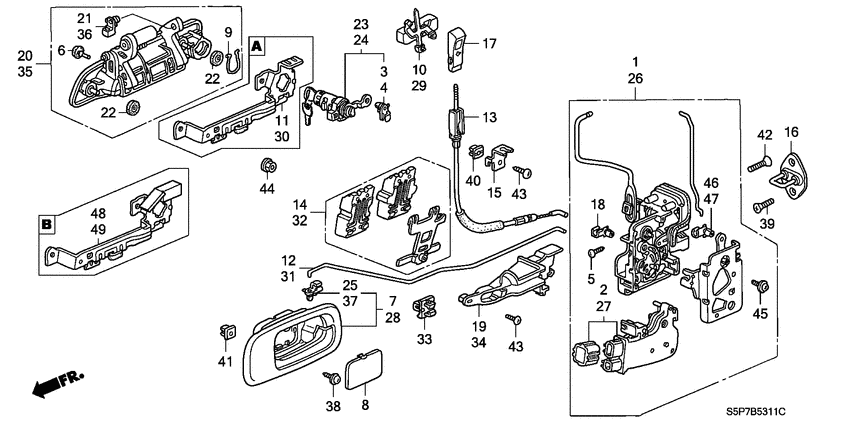

Door locks (2) Diagram Honda CIVIC
- Year
- 2002
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- D17A
- transmission
- 4AT
- Number of doors
- 2
- grade
- VTI-A
- area code
- KY
- left-hand drive
- +
- air conditioner (manual)
- +
- height road clearance
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72110-S5P-A21
Lock assy
|
72110-S5P-A21 |
— | ||
|
2
|
2
72115-S6A-J11 Actuator assyDOOR LOCK |
72115-S6A-J11 |
US $89.96 |
||
|
3
|
3
72116-S04-003 HolderROD(SKY BLUE) |
72116-S04-003 |
US $2.31 |
||
|
4
|
4
72117-S04-003 HolderROD (YELLOW) |
72117-S04-003 |
US $2.31 |
||
|
5
|
5
72118-ST7-003 ScrewTAPPING, 3X5 |
72118-ST7-003 |
US $1.05 |
||
|
6
|
6
72119-S04-003
Stopper a
|
72119-S04-003 |
— | ||
|
7
|
7
72120-S5P-A01ZA
Handle assy
|
72120-S5P-A01ZA |
— | ||
|
7
|
7
72120-S5P-A01ZB
Handle assy
|
72120-S5P-A01ZB |
— | ||
|
8
|
8
72121-S5A-003ZB CapINSIDE HANDLE *YR164L* |
72121-S5A-003ZB |
US $3.78 |
||
|
8
|
8
72121-S5A-003ZA CapINSIDE HANDLE *NH167L* |
72121-S5A-003ZA |
US $4.20 |
||
|
9
|
9
72123-SR0-003 RingOUTSIDE HANDLE |
72123-SR0-003 |
US $1.40 |
||
|
10
|
10
72123-S5P-A00
Pad assy
|
72123-S5P-A00 |
— | ||
|
12
|
12
72131-S5P-A01
Rod
|
72131-S5P-A01 |
— | ||
|
13
|
13
72132-S5P-A01
Cable
|
72132-S5P-A01 |
— | ||
|
14
|
14
72133-S5P-A01
Pad assy
|
72133-S5P-A01 |
— | ||
|
15
|
15
72134-S5P-A00
Bracket
|
72134-S5P-A00 |
— | ||
|
16
|
16
72135-S5A-003
Striker assy
|
72135-S5A-003 |
— | ||
|
17
|
17
72137-S2X-003ZE KnobINSIDE DOOR LOCK *NH167L* |
72137-S2X-003ZE |
US $5.18 |
||
|
17
|
17
72137-S2X-003ZB KnobINSIDE DOOR LOCK *YR164L* |
72137-S2X-003ZB |
US $5.18 |
||
|
18
|
18
72139-SW5-003 FastenerBLUE |
72139-SW5-003 |
US $2.94 |
||
|
19
|
19
72139-S5P-A00
Protector
|
72139-S5P-A00 |
— | ||
|
20
|
20
72140-S5A-J01ZC Handle assyR. FR. DOOR OUTSIDE *G95P* |
72140-S5A-J01ZC |
US $67.20 |
||
|
20
|
20
72140-S5A-J01ZE Handle assyR. FR. DOOR OUTSIDE *NH623M* |
72140-S5A-J01ZE |
US $67.20 |
||
|
20
|
20
72140-S5A-J01ZQ
Handle assy
|
72140-S5A-J01ZQ |
— | ||
|
20
|
20
72140-S5A-J01ZD Handle assyR. FR. DOOR OUTSIDE *NH578* |
72140-S5A-J01ZD |
US $67.20 |
||
|
20
|
20
72140-S5A-J01ZA Handle assyR. FR. DOOR OUTSIDE *B92P* |
72140-S5A-J01ZA |
US $67.20 |
||
|
21
|
21
72141-SD4-004 BushR. JOINT |
72141-SD4-004 |
US $1.68 |
||
|
22
|
22
72141-S5A-003 Packing |
72141-S5A-003 |
US $2.03 |
||
|
23
|
23
72145-S73-003 CylinderR. DOOR |
72145-S73-003 |
US $40.45 |
||
|
24
|
24
72146-S73-003 CylinderL. DOOR |
72146-S73-003 |
US $40.45 |
||
|
25
|
25
72149-SR4-000
Snap
|
72149-SR4-000 |
— | ||
|
26
|
26
72150-S5P-A11
Lock assy
|
72150-S5P-A11 |
— | ||
|
27
|
27
72155-S5P-A11 Actuator assyDOOR LOCK |
72155-S5P-A11 |
US $69.76 |
||
|
28
|
28
72160-S5P-A01ZB
Handle assy
|
72160-S5P-A01ZB |
— | ||
|
28
|
28
72160-S5P-A01ZA
Handle assy
|
72160-S5P-A01ZA |
— | ||
|
29
|
29
72163-S5P-A00
Pad assy
|
72163-S5P-A00 |
— | ||
|
31
|
31
72171-S5P-A01
Rod
|
72171-S5P-A01 |
— | ||
|
32
|
32
72173-S5P-A01
Pad assy
|
72173-S5P-A01 |
— | ||
|
33
|
33
72175-SH3-003 HolderDOOR LOCK ROD |
72175-SH3-003 |
US $2.37 |
||
|
34
|
34
72179-S5P-A00
Protector
|
72179-S5P-A00 |
— | ||
|
35
|
35
72180-S5A-J01ZC Handle assyL. FR. DOOR OUTSIDE *G95P* |
72180-S5A-J01ZC |
US $67.20 |
||
|
35
|
35
72180-S5A-J01ZE Handle assyL. FR. DOOR OUTSIDE *NH623M* |
72180-S5A-J01ZE |
US $67.20 |
||
|
35
|
35
72180-S5A-J01ZQ
Handle assy
|
72180-S5A-J01ZQ |
— | ||
|
35
|
35
72180-S5A-J01ZD
Handle assy
|
72180-S5A-J01ZD |
— | ||
| replacement | |||||
|
35
|
35
72180-S5A-J02ZD
Handle assy
|
72180-S5A-J02ZD |
— | ||
|
35
|
35
72180-S5A-J01ZA Handle assyL. FR. DOOR OUTSIDE *B92P* |
72180-S5A-J01ZA |
US $67.20 |
||
|
36
|
36
72181-SD4-004 BushL. JOINT |
72181-SD4-004 |
US $1.68 |
||
|
37
|
37
72189-SR4-000
Snap
|
72189-SR4-000 |
— | ||
|
38
|
38
90120-SM4-000 ScrewTAPPING |
90120-SM4-000 |
US $1.55 |
||
|
39
|
39
90120-SV4-000 BoltLOCK STRIKER |
90120-SV4-000 |
US $1.63 |
||
|
40
|
40
90662-SB2-003 GrommetSCREW, 5MM |
90662-SB2-003 |
US $1.85 |
||
|
41
|
41
90866-SA0-000 GrommetSCREW, 4MM |
90866-SA0-000 |
from US $2.37 |
||
|
42
|
42
93600-060-280-A ScrewFLAT, 6X28 |
93600-060-280-A |
from US $0.52 |
||
|
43
|
43
93903-45220 ScrewTAPPING, 5X12 |
93903-45220 |
US $0.37 |
||
|
44
|
44
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
45
|
45
72113-S6A-004
Tite
|
72113-S6A-004 |
— | ||
|
46
|
46
72111-S5P-A00 FastenerR. |
72111-S5P-A00 |
US $2.94 |
||
|
47
|
47
72151-S5P-A00 FastenerL. |
72151-S5P-A00 |
US $2.94 |
||
|
48
|
48
72130-S5P-E00
Protector assy
|
72130-S5P-E00 |
— | ||
|
49
|
49
72170-S5P-E00
Protector assy
|
72170-S5P-E00 |
— | ||
