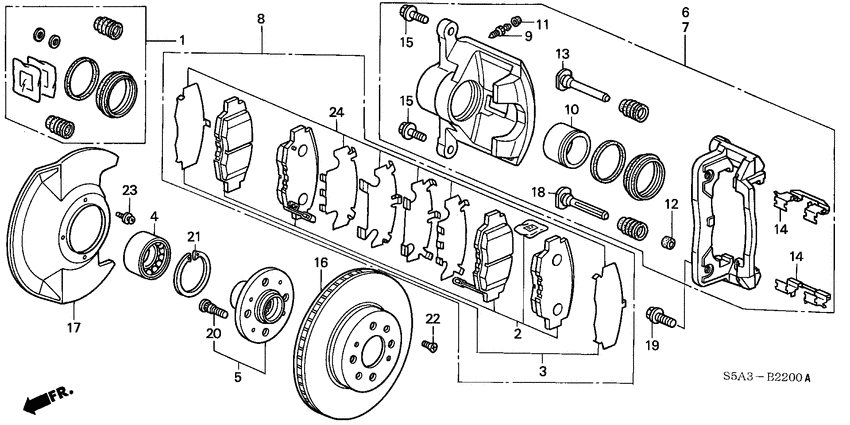

Front brake Diagram Honda CIVIC
- Year
- 2002
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- D17A
- transmission
- 4AT
- Number of doors
- 2
- grade
- VTI-A
- area code
- KY
- left-hand drive
- +
- air conditioner (manual)
- +
- height road clearance
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01463-S5D-A00 Caliper setFR. |
01463-S5D-A00 |
US $29.44 |
||
|
2
|
2
06450-S5D-A00 Pad setFR. (WITHOUT SHIM) |
06450-S5D-A00 |
US $113.92 |
||
|
3
|
3
06455-S5D-A00
Shim set
|
06455-S5D-A00 |
— | ||
|
4
|
4
44300-S5A-008 FR HUB Bearing assy (NTN) |
44300-S5A-008 |
US $130.90 |
||
|
5
|
5
44600-S5D-A00 Hub assyFR. (14") |
44600-S5D-A00 |
US $142.08 |
||
|
6
|
6
45018-S5D-A00 Caliper sub assy.R. FR. |
45018-S5D-A00 |
US $371.20 |
||
|
7
|
7
45019-S5D-A00 Caliper sub assy.L. FR. |
45019-S5D-A00 |
US $371.20 |
||
|
8
|
8
45022-S5D-A00 Pad setFR. |
45022-S5D-A00 |
US $121.60 |
||
|
9
|
9
43352-S3V-A01 ScrewBLEEDER |
43352-S3V-A01 |
US $4.62 |
||
|
10
|
10
45216-S01-A01 Piston |
45216-S01-A01 |
US $29.31 |
||
|
11
|
11
45219-671-672 CapBLEEDER SCREW |
45219-671-672 |
from US $2.73 |
||
|
12
|
12
45233-S01-A01 Bush |
45233-S01-A01 |
from US $1.89 |
||
|
13
|
13
45235-S01-A01 Pin a |
45235-S01-A01 |
US $7.70 |
||
|
14
|
14
45237-S04-A02 ClipPAD |
45237-S04-A02 |
US $4.20 |
||
|
15
|
15
45240-S01-A01 Bolt |
45240-S01-A01 |
from US $2.29 |
||
|
16
|
16
45251-S5D-A10 DiskFR. BRAKE |
45251-S5D-A10 |
US $165.12 |
||
|
17
|
17
45255-S01-A00
Guard
|
45255-S01-A00 |
— | ||
|
18
|
18
45262-S01-A01 Pin b |
45262-S01-A01 |
US $7.70 |
||
|
19
|
19
90107-SM4-000 BoltCALIPER MOUNTING (12X21) |
90107-SM4-000 |
from US $2.03 |
||
|
20
|
20
90113-SA0-025 BoltWHEEL (NAGOYA RASHI) |
90113-SA0-025 |
from US $2.93 |
||
| replacement | |||||
|
20
|
20
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
20
|
20
90113-SA0-006 BoltWHEEL (SAGA) |
90113-SA0-006 |
from US $2.59 |
||
| replacement | |||||
|
20
|
20
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
20
|
20
90113-SM1-005 BoltWHEEL (ROCKNEL FASTENER) |
90113-SM1-005 |
from US $3.70 |
||
|
21
|
21
90681-SR3-A00 Circlip, SPECIAL INTERNAL, 79MM |
90681-SR3-A00 |
US $9.77 |
||
|
22
|
22
93600-060-140-H ScrewFLAT, 6X14 |
93600-060-140-H |
from US $0.44 |
||
|
23
|
23
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
