	Description	OEM Part #	Price
1	1 53747-SA5-003 Clip	53747-SA5-003	—
2	2 79100-S5S-E01 Heater unit	79100-S5S-E01	US $627.20
3	3 79106-S5S-E91 Heater sub assy.	79106-S5S-E91	US $345.60
4	4 79107-S6A-003 Duct sub assy. CASE	79107-S6A-003	US $29.44
5	5 79108-S6A-003 Link assy	79108-S6A-003	—
6	6 79109-S6A-941 Link assy	79109-S6A-941	—
7	7 79110-S6A-E01 Core comp	79110-S6A-E01	—
8	8 79140-S6A-941 Motor assy.	79140-S6A-941	—
9	9 79161-S6A-003 Motor assy.	79161-S6A-003	—
11	11 79193-S6A-003 Bolt FLANGE, 6X20	79193-S6A-003	US $2.17
12	12 79194-S6A-003 Nut 6MM	79194-S6A-003	US $1.82
13	13 79544-S6D-E00 Cable	79544-S6D-E00	—
14	14 79770-SE0-000 Grommet WATER VALVE CABLE	79770-SE0-000	US $2.59
19	19 80271-S6M-000 Hose DRAIN	80271-S6M-000	US $7
21	21 80650-S6A-E40 Sub harness	80650-S6A-E40	—
24	24 90121-S6A-003 Screw-washer 5X12	90121-S6A-003	US $1.75
25	25 90122-S30-003 Screw TAPPING, 5X12	90122-S30-003	US $1.33
26	26 90123-S30-003 Screw TAPPING, 5X12	90123-S30-003	US $1.33
27	27 90124-S30-003 Screw-washer 5X12	90124-S30-003	US $1.47
29	29 90156-SH3-000 Bolt-washer 6X24	90156-SH3-000	US $2.52
31	31 91540-S0A-003 Clip HARNESS BAND(NATURAL) (96.9MM)	91540-S0A-003	from US $2.29
32	32 94071-08080 Nut-washer 8MM	94071-08080	from US $0.52
33	33 80211-S5S-E21 Dummy EVAPORATOR	80211-S5S-E21	US $42.50
35	35 91533-S04-003 Clip COUPLER (NATURAL)	91533-S04-003	from US $1.47
37	37 32132-SM4-003 Band WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)	32132-SM4-003	US $2.73
38	38 32133-SM4-003 Band HARNESS OFFSET (30) (YELLOW) (122.5MM)	32133-SM4-003	US $2.73
39	39 91548-SV4-003 Clip BAND (6MM BOSS)(NATURAL) (127MM)	91548-SV4-003	US $2.73
40	40 79192-S6A-003 Packing STUD BOLT	79192-S6A-003	US $2.17

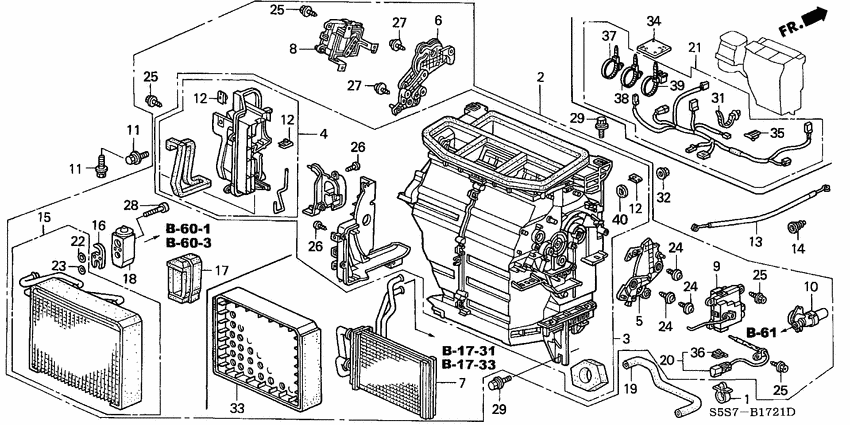

Heater unit (RH) Diagram Honda CIVIC General 7037280-532676

Heater unit (RH) Diagram Honda CIVIC General 7037280-532676
