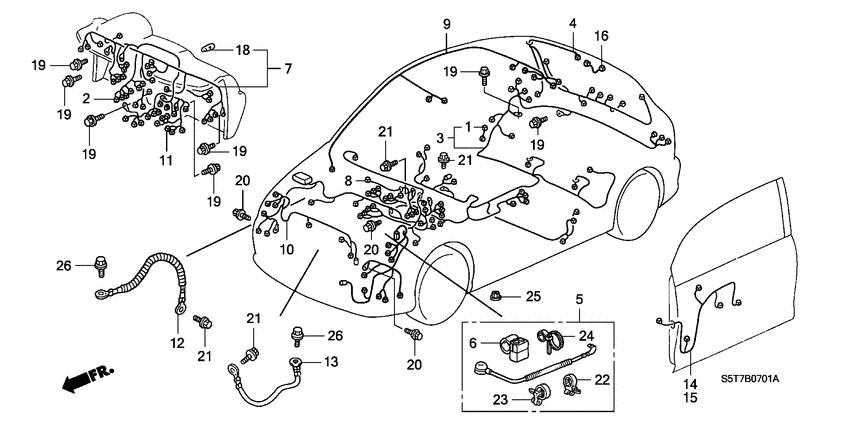

Wire harness (RH) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- D14Z
- transmission
- 5MT
- Number of doors
- 3
- grade
- 1.4 E
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30510-SCC-013 Condenser comp. |
30510-SCC-013 |
US $8.54 |
||
|
2
|
2
32103-S6A-E11
Sub cord
|
32103-S6A-E11 |
— | ||
|
3
|
3
32107-S5S-E32
Harness
|
32107-S5S-E32 |
— | ||
|
4
|
4
32109-S5S-G20
Cord
|
32109-S5S-G20 |
— | ||
|
7
|
7
32117-S5S-E40
Harness
|
32117-S5S-E40 |
— | ||
|
8
|
8
32125-S6A-911
Sub cord
|
32125-S6A-911 |
— | ||
|
9
|
9
32155-S5S-E01 CordINTERIOR & SUNROOF |
32155-S5S-E01 |
US $97.92 |
||
|
10
|
10
32200-S6D-E33
Harness
5U301318 - |
32200-S6D-E33 |
— | ||
|
10
|
10
32200-S6D-E32
Harness
00000000 - 5U301317 |
32200-S6D-E32 |
— | ||
|
11
|
11
32201-S6A-E01
Sub cord
|
32201-S6A-E01 |
— | ||
|
14
|
14
32751-S5S-E01
Harness
|
32751-S5S-E01 |
— | ||
|
15
|
15
32752-S5S-E01
Harness
|
32752-S5S-E01 |
— | ||
|
18
|
18
35505-692-003 Bulb14V 1.4W |
35505-692-003 |
from US $2.07 |
||
|
19
|
19
90148-SE0-003 BoltEARTH, 6X16 (WASHER 12.5MM) (ZN) |
90148-SE0-003 |
from US $2.37 |
||
|
20
|
20
90149-SE0-003 BoltEARTH, 6X16 |
90149-SE0-003 |
from US $2.52 |
||
|
21
|
21
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
