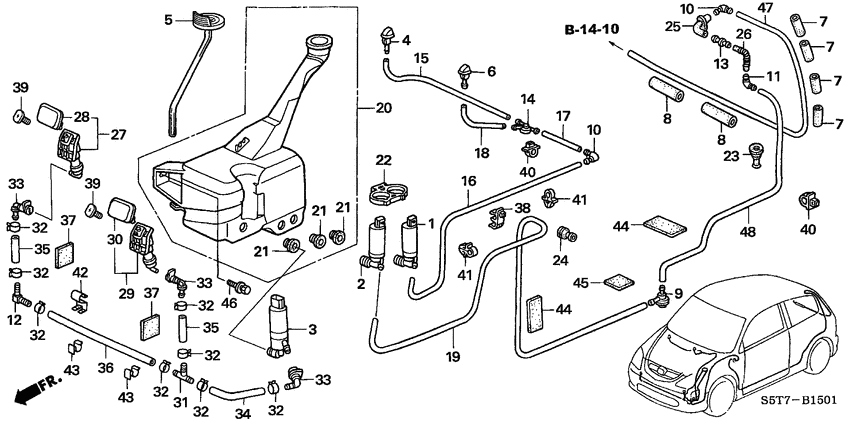

Windshield washer (2) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- D14Z
- transmission
- 5MT
- Number of doors
- 3
- grade
- 1.4 S
- area code
- KS
- left-hand drive
- +
- side srs
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76806-S6D-E01 MotorFR. WASHER |
76806-S6D-E01 |
US $41.73 |
||
|
2
|
2
76806-S6D-E11 MotorRR. WASHER |
76806-S6D-E11 |
US $41.73 |
||
|
3
|
3
76806-S6D-S01
Motor
|
76806-S6D-S01 |
— | ||
|
4
|
4
76810-S5S-E01
Nozzle assy.
|
76810-S5S-E01 |
— | ||
| replacement | |||||
|
4
|
4
76810-S2G-003 Nozzle assy.R. WINDSHIELD WASHER |
76810-S2G-003 |
US $18.40 |
||
|
5
|
5
76812-S6D-E11 Cap assy.MOUTH |
76812-S6D-E11 |
US $5.88 |
||
|
6
|
6
76815-S5S-E01
Nozzle assy.
|
76815-S5S-E01 |
— | ||
| replacement | |||||
|
6
|
6
76810-S2G-003 Nozzle assy.R. WINDSHIELD WASHER |
76810-S2G-003 |
US $18.40 |
||
|
7
|
7
76819-S5S-E01 Cushion |
76819-S5S-E01 |
US $3.29 |
||
|
8
|
8
76820-S5S-E01 Cushion |
76820-S5S-E01 |
US $5.88 |
||
|
9
|
9
76826-S6D-E11
Valve
|
76826-S6D-E11 |
— | ||
|
10
|
10
76828-ST3-E01 Joint lWASHER |
76828-ST3-E01 |
US $5.88 |
||
|
11
|
11
76828-S1E-E01 Joint lWASHER |
76828-S1E-E01 |
US $5.18 |
||
|
12
|
12
76828-S6D-S01
Joint l
|
76828-S6D-S01 |
— | ||
|
13
|
13
76829-SN7-G05 Joint iWASHER |
76829-SN7-G05 |
US $5.04 |
||
|
14
|
14
76830-S6D-E01
Y-joint
|
76830-S6D-E01 |
— | ||
|
15
|
15
76832-S6D-E02
Tube
|
76832-S6D-E02 |
— | ||
|
16
|
16
76834-S6D-S01
Tube
|
76834-S6D-S01 |
— | ||
|
17
|
17
76835-S6D-E01
Tube
|
76835-S6D-E01 |
— | ||
|
18
|
18
76837-S6D-E01
Tube
|
76837-S6D-E01 |
— | ||
|
19
|
19
76838-S5S-E01
Tube
|
76838-S5S-E01 |
— | ||
|
20
|
20
76840-S6D-S01
Tank set
|
76840-S6D-S01 |
— | ||
|
21
|
21
76842-S6D-E01 BushWASHER TANK |
76842-S6D-E01 |
US $2.24 |
||
|
22
|
22
76845-S6D-E01
Bracket
|
76845-S6D-E01 |
— | ||
|
23
|
23
76851-S1C-E01 GrommetWASHER TUBE |
76851-S1C-E01 |
US $4.90 |
||
|
24
|
24
76851-S6D-E01 GrommetWASHER TUBE |
76851-S6D-E01 |
US $4.90 |
||
|
25
|
25
76852-S6D-E01 GrommetWASHER TUBE (RR.) |
76852-S6D-E01 |
US $4.90 |
||
|
26
|
26
76875-S6D-E01 BellowsRR. WASHER |
76875-S6D-E01 |
US $5.88 |
||
|
27
|
27
76880-S6D-S11ZH
Nozzle assy.
|
76880-S6D-S11ZH |
— | ||
|
27
|
27
76880-S6D-S11ZB
Nozzle assy.
|
76880-S6D-S11ZB |
— | ||
|
27
|
27
76880-S6D-S11ZK
Nozzle assy.
|
76880-S6D-S11ZK |
— | ||
|
27
|
27
76880-S6D-S11ZD
Nozzle assy.
|
76880-S6D-S11ZD |
— | ||
|
27
|
27
76880-S6D-S11ZG
Nozzle assy.
|
76880-S6D-S11ZG |
— | ||
|
27
|
27
76880-S6D-S11ZA
Nozzle assy.
|
76880-S6D-S11ZA |
— | ||
|
27
|
27
76880-S6D-S11ZJ
Nozzle assy.
|
76880-S6D-S11ZJ |
— | ||
|
27
|
27
76880-S6D-S11ZC
Nozzle assy.
|
76880-S6D-S11ZC |
— | ||
|
27
|
27
76880-S6D-S11ZE
Nozzle assy.
|
76880-S6D-S11ZE |
— | ||
|
28
|
28
76882-S6D-S02ZT
Cover assy.
|
76882-S6D-S02ZT |
— | ||
|
28
|
28
76882-S6D-S02ZG
Cover assy.
|
76882-S6D-S02ZG |
— | ||
|
28
|
28
76882-S6D-S02ZL
Cover assy.
|
76882-S6D-S02ZL |
— | ||
|
28
|
28
76882-S6D-S02ZS
Cover assy.
|
76882-S6D-S02ZS |
— | ||
|
28
|
28
76882-S6D-S02ZF
Cover assy.
|
76882-S6D-S02ZF |
— | ||
|
28
|
28
76882-S6D-S02ZU
Cover assy.
|
76882-S6D-S02ZU |
— | ||
|
28
|
28
76882-S6D-S02ZK
Cover assy.
|
76882-S6D-S02ZK |
— | ||
|
28
|
28
76882-S6D-S02ZN
Cover assy.
|
76882-S6D-S02ZN |
— | ||
|
28
|
28
76882-S6D-S02ZA
Cover assy.
|
76882-S6D-S02ZA |
— | ||
|
29
|
29
76885-S6D-S11ZK
Nozzle assy.
|
76885-S6D-S11ZK |
— | ||
|
29
|
29
76885-S6D-S11ZD
Nozzle assy.
|
76885-S6D-S11ZD |
— | ||
|
29
|
29
76885-S6D-S11ZG
Nozzle assy.
|
76885-S6D-S11ZG |
— | ||
|
29
|
29
76885-S6D-S11ZA
Nozzle assy.
|
76885-S6D-S11ZA |
— | ||
|
29
|
29
76885-S6D-S11ZJ
Nozzle assy.
|
76885-S6D-S11ZJ |
— | ||
|
29
|
29
76885-S6D-S11ZC
Nozzle assy.
|
76885-S6D-S11ZC |
— | ||
|
29
|
29
76885-S6D-S11ZE
Nozzle assy.
|
76885-S6D-S11ZE |
— | ||
|
29
|
29
76885-S6D-S11ZH
Nozzle assy.
|
76885-S6D-S11ZH |
— | ||
|
29
|
29
76885-S6D-S11ZB
Nozzle assy.
|
76885-S6D-S11ZB |
— | ||
|
30
|
30
76887-S6D-S02ZS
Cover assy.
|
76887-S6D-S02ZS |
— | ||
|
30
|
30
76887-S6D-S02ZF
Cover assy.
|
76887-S6D-S02ZF |
— | ||
|
30
|
30
76887-S6D-S02ZU
Cover assy.
|
76887-S6D-S02ZU |
— | ||
|
30
|
30
76887-S6D-S02ZK
Cover assy.
|
76887-S6D-S02ZK |
— | ||
|
30
|
30
76887-S6D-S02ZN
Cover assy.
|
76887-S6D-S02ZN |
— | ||
|
30
|
30
76887-S6D-S02ZA
Cover assy.
|
76887-S6D-S02ZA |
— | ||
|
30
|
30
76887-S6D-S02ZT
Cover assy.
|
76887-S6D-S02ZT |
— | ||
|
30
|
30
76887-S6D-S02ZG
Cover assy.
|
76887-S6D-S02ZG |
— | ||
|
30
|
30
76887-S6D-S02ZL
Cover assy.
|
76887-S6D-S02ZL |
— | ||
|
31
|
31
76891-S6D-S01
Joint t
|
76891-S6D-S01 |
— | ||
|
32
|
32
76892-S6D-S01
Clip
|
76892-S6D-S01 |
— | ||
|
33
|
33
76893-S6D-S01
Connector
|
76893-S6D-S01 |
— | ||
|
34
|
34
76894-S6D-S11
Hose a
|
76894-S6D-S11 |
— | ||
|
35
|
35
76895-S6D-S11
Hose b
|
76895-S6D-S11 |
— | ||
|
36
|
36
76896-S6D-S11
Hose c
|
76896-S6D-S11 |
— | ||
|
37
|
37
76897-S6D-S11
Cushion
|
76897-S6D-S11 |
— | ||
|
38
|
38
80383-S5A-003 Clip ARECEIVER PIPE |
80383-S5A-003 |
US $1.61 |
||
|
39
|
39
90001-S6D-S01 ScrewSPECIAL, 5X16 |
90001-S6D-S01 |
US $1.82 |
||
|
40
|
40
90652-SB2-023 ClipTUBE, 7MM |
90652-SB2-023 |
from US $2.22 |
||
|
41
|
41
91501-SJ6-003 ClipWASHER TUBE |
91501-SJ6-003 |
US $1.47 |
||
|
42
|
42
91561-SR3-003
Clip
|
91561-SR3-003 |
— | ||
|
43
|
43
91561-S6D-S01
Clip
|
91561-S6D-S01 |
— | ||
|
44
|
44
91902-SB2-003 CushionWIRE HARNESS(50X100) |
91902-SB2-003 |
from US $2.96 |
||
|
45
|
45
91902-SJ8-003 CushionWIRE HARNESS (50X50) |
91902-SJ8-003 |
US $2.31 |
||
|
46
|
46
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
47
|
47
95003-071-237-0 TubeVINYL, 4X7X1230 (95003-07003-70M) |
95003-071-237-0 |
US $2.81 |
||
|
48
|
48
95003-071-927-0 TubeVINYL, 4X7X1920 (95003-07003-70M) |
95003-071-927-0 |
US $4 |
||
