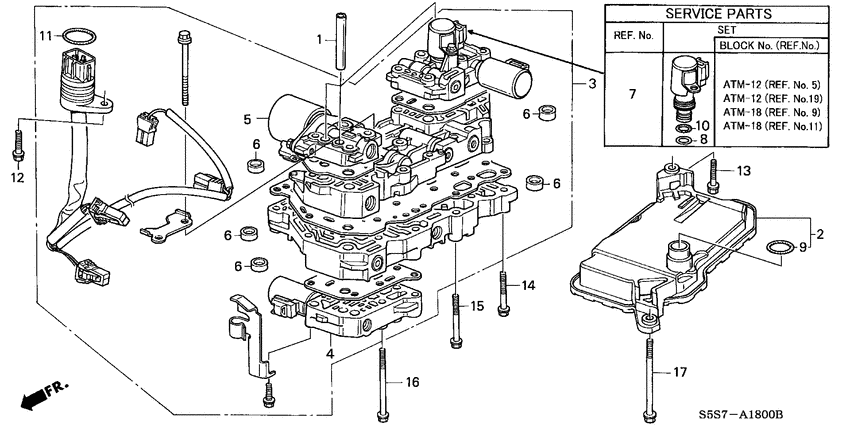

Valve body (CVT) Diagram Honda CIVIC
- Year
- 2001
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16V
- transmission
- CVT
- Number of doors
- 3
- grade
- 1.6SE EXECUT
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- air conditioner (auto)
- +
- leather seat
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22771-PW4-000 Pipe50 |
22771-PW4-000 |
US $2.31 |
||
|
2
|
2
25420-PLY-003
Strainer assy
|
25420-PLY-003 |
— | ||
|
3
|
3
27000-PLY-020
Valve body assy
|
27000-PLY-020 |
— | ||
|
4
|
4
27500-PLY-003 Body assyPULLEY CONTROL VALVE |
27500-PLY-003 |
US $204.80 |
||
|
5
|
5
27600-PLY-003 Body assySTART CLUTCH CONTROL VALVE |
27600-PLY-003 |
US $194.56 |
||
|
6
|
6
27750-P4V-000 FilterSECONDARY BODY |
27750-P4V-000 |
US $5.32 |
||
|
7
|
7
28400-PLY-305
Solenoid kit
|
28400-PLY-305 |
— | ||
|
8
|
8
91301-P6H-003 O-ring7.6X1.9 (KEIHIN) |
91301-P6H-003 |
from US $1.48 |
||
|
9
|
9
91301-P7X-003 O-ring19.20X1.90(NOK) |
91301-P7X-003 |
from US $1.70 |
||
|
10
|
10
91303-P6H-003 O-ring11.7X1.9 (KEIHIN) |
91303-P6H-003 |
from US $1.48 |
||
|
11
|
11
91329-P4V-003 O-ring27.5X2.4 |
91329-P4V-003 |
US $1.96 |
||
|
12
|
12
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
13
|
13
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
14
|
14
95701-060-350-8 BoltFLANGE, 6X35 |
95701-060-350-8 |
from US $0.59 |
||
|
15
|
15
95701-060-450-8 BoltFLANGE, 6X45 |
95701-060-450-8 |
from US $0.74 |
||
|
16
|
16
95701-060-650-8 BoltFLANGE, 6X65 |
95701-060-650-8 |
from US $0.81 |
||
|
17
|
17
95701-060-750-8 BoltFLANGE, 6X75 |
95701-060-750-8 |
from US $0.90 |
