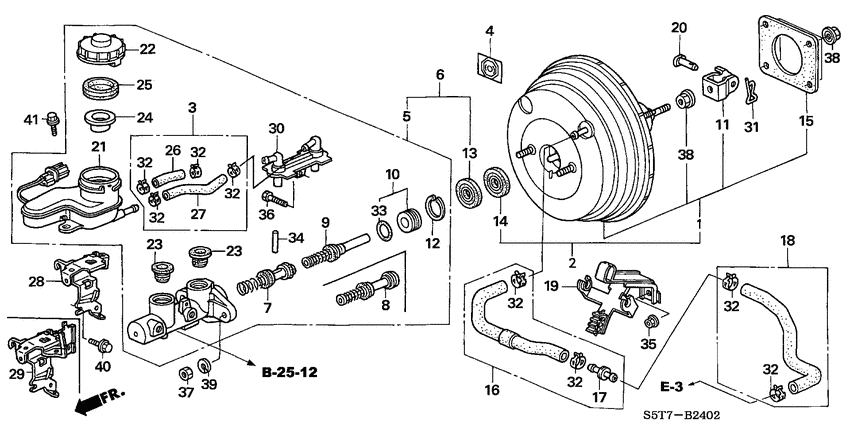

Brake master cylinder/ master power (RH; 1) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16V
- transmission
- 4AT
- Number of doors
- 3
- grade
- 1.6 SE
- area code
- KE
- right-hand drive
- +
- navigation
- +
- side srs
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01469-S5A-J50 Power setMASTER (7"+8") |
01469-S5A-J50 |
US $561.92 |
||
|
3
|
3
46017-S6A-000 Hose setRESERVE TANK |
46017-S6A-000 |
US $14.21 |
||
|
4
|
4
46070-SL0-G01 PlateSYMBOL MARK |
46070-SL0-G01 |
US $1.61 |
||
|
6
|
6
46100-S6D-E51 Cylinder assy.MASTER |
46100-S6D-E51 |
US $332.80 |
||
|
7
|
7
46120-S0A-013 Piston assy.PRIMARY |
46120-S0A-013 |
US $34.56 |
||
|
9
|
9
46122-S5A-J51 Piston assy.SECONDARY |
46122-S5A-J51 |
US $28.42 |
||
|
10
|
10
46135-S5A-J41 Guide assyPISTON |
46135-S5A-J41 |
US $13.72 |
||
|
11
|
11
46151-SB2-003 YokePUSH ROD (NISSIN) |
46151-SB2-003 |
US $18.92 |
||
|
12
|
12
57562-SF1-003 Circlip |
57562-SF1-003 |
US $2.17 |
||
|
13
|
13
46185-SE0-003 SealROD |
46185-SE0-003 |
from US $3.33 |
||
|
15
|
15
46191-S2K-000 PackingMASTER POWER |
46191-S2K-000 |
US $2.31 |
||
|
16
|
16
46402-S6A-J51
Tube assy
|
46402-S6A-J51 |
— | ||
|
17
|
17
46403-S6A-000 JointTWO WAY |
46403-S6A-000 |
US $4.76 |
||
|
18
|
18
46404-S6A-J10
Tube assy. a
|
46404-S6A-J10 |
— | ||
|
19
|
19
46406-S6A-J00
Stay
|
46406-S6A-J00 |
— | ||
|
20
|
20
46512-S70-000 PinPEDAL |
46512-S70-000 |
from US $2.31 |
||
|
21
|
21
46661-S6A-J00
Reservoir set
|
46661-S6A-J00 |
— | ||
|
22
|
22
46662-S5A-003 Cap comp.RESERVE TANK |
46662-S5A-003 |
from US $12.18 |
||
|
23
|
23
46665-S04-J01 Grommet |
46665-S04-J01 |
from US $5.33 |
||
|
24
|
24
46666-S2K-003 FilterBRAKE RESERVOIR |
46666-S2K-003 |
from US $5.33 |
||
|
25
|
25
46669-S5A-003 Diaphragm |
46669-S5A-003 |
from US $8.88 |
||
|
26
|
26
46672-S6A-003 HoseRESERVE TANK |
46672-S6A-003 |
US $5.88 |
||
|
27
|
27
46673-S6A-003 HoseRESERVE TANK |
46673-S6A-003 |
US $7.14 |
||
|
28
|
28
46674-S6A-J01 Bracket comp.RESERVE TANK |
46674-S6A-J01 |
US $9.10 |
||
|
30
|
30
46680-S6A-J52
Union
|
46680-S6A-J52 |
— | ||
|
31
|
31
46911-S70-003 Pin, LOCK(8MM) |
46911-S70-003 |
from US $1.85 |
||
|
32
|
32
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $3.74 |
||
|
33
|
33
57173-SB0-801 O-ringCONNECTOR |
57173-SB0-801 |
US $2.07 |
||
|
34
|
34
57515-S30-003 PinSTOP |
57515-S30-003 |
US $2.31 |
||
|
35
|
35
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
36
|
36
92301-05025-0H BoltRECESSED, 5X25 |
92301-05025-0H |
from US $0.52 |
||
|
37
|
37
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
37
|
37
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
38
|
38
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
39
|
39
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
|
40
|
40
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
41
|
41
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
