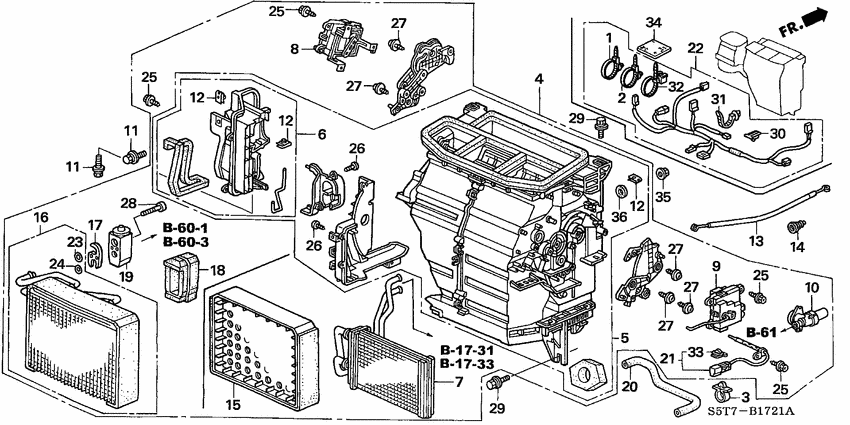

Heater unit (RH) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16V
- transmission
- 5MT
- Number of doors
- 3
- grade
- 1.6 SPORT
- area code
- KE
- right-hand drive
- +
- air conditioner (auto)
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32132-SM4-003 BandWIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
32132-SM4-003 |
US $2.73 |
||
|
2
|
2
32133-SM4-003 BandHARNESS OFFSET (30) (YELLOW) (122.5MM) |
32133-SM4-003 |
US $2.73 |
||
|
3
|
3
53747-SA5-003
Clip
|
53747-SA5-003 |
— | ||
|
4
|
4
79100-S5S-E42 Heater unit |
79100-S5S-E42 |
US $965.12 |
||
|
5
|
5
79106-S5S-E41 Heater sub assy. |
79106-S5S-E41 |
US $345.60 |
||
|
6
|
6
79107-S6A-003 Duct sub assy.CASE |
79107-S6A-003 |
US $29.44 |
||
|
7
|
7
79110-S6A-E02
Core comp
|
79110-S6A-E02 |
— | ||
|
8
|
8
79140-S6A-941
Motor assy.
|
79140-S6A-941 |
— | ||
|
9
|
9
79161-S6A-003
Motor assy.
|
79161-S6A-003 |
— | ||
|
10
|
10
79170-S6A-941 Aspirator |
79170-S6A-941 |
US $3.85 |
||
|
11
|
11
79193-S6A-003 BoltFLANGE, 6X20 |
79193-S6A-003 |
US $2.17 |
||
|
12
|
12
79194-S6A-003 Nut6MM |
79194-S6A-003 |
US $1.82 |
||
|
13
|
13
79544-S6D-E00
Cable
|
79544-S6D-E00 |
— | ||
|
14
|
14
79770-SE0-000 GrommetWATER VALVE CABLE |
79770-SE0-000 |
US $2.59 |
||
|
16
|
16
80211-S6D-E12 Evaporator assy. |
80211-S6D-E12 |
US $444.16 |
||
|
17
|
17
80215-S6A-003 Plate |
80215-S6A-003 |
US $7.56 |
||
|
18
|
18
80216-S6A-003 InsulatorEXPANSION VALVE |
80216-S6A-003 |
US $8.82 |
||
|
19
|
19
80220-S6A-013
Valve
|
80220-S6A-013 |
— | ||
|
20
|
20
80271-S5A-000 HoseDRAIN |
80271-S5A-000 |
US $8.40 |
||
|
21
|
21
80560-S6A-941
Thermistor
|
80560-S6A-941 |
— | ||
|
22
|
22
80650-S6A-E40
Sub harness
|
80650-S6A-E40 |
— | ||
|
23
|
23
80871-ST7-000 O-ring5/8" |
80871-ST7-000 |
from US $2.69 |
||
|
24
|
24
80872-ST7-000 O-ring1/2" |
80872-ST7-000 |
from US $2.52 |
||
|
25
|
25
90122-S30-003 ScrewTAPPING, 5X12 |
90122-S30-003 |
US $1.33 |
||
|
26
|
26
90123-S30-003 ScrewTAPPING, 5X12 |
90123-S30-003 |
US $1.33 |
||
|
27
|
27
90124-S30-003 Screw-washer5X12 |
90124-S30-003 |
US $1.47 |
||
|
28
|
28
90125-S6A-003 Bolt5X35 |
90125-S6A-003 |
US $1.33 |
||
|
29
|
29
90156-SH3-000 Bolt-washer6X24 |
90156-SH3-000 |
US $2.52 |
||
|
30
|
30
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.47 |
||
|
31
|
31
91540-S0A-003 ClipHARNESS BAND(NATURAL) (96.9MM) |
91540-S0A-003 |
from US $2.29 |
||
|
32
|
32
91548-SV4-003 ClipBAND (6MM BOSS)(NATURAL) (127MM) |
91548-SV4-003 |
US $2.73 |
||
|
33
|
33
91580-SM4-003 ClipCOUPLER(ORANGE) |
91580-SM4-003 |
from US $1.68 |
||
|
34
|
34
91902-S2X-003 PlasterWIRE HARNESS(50X100) |
91902-S2X-003 |
US $1.61 |
||
|
35
|
35
94071-08080 Nut-washer8MM |
94071-08080 |
from US $0.52 |
||
|
36
|
36
79192-S6A-003 PackingSTUD BOLT |
79192-S6A-003 |
US $2.17 |
