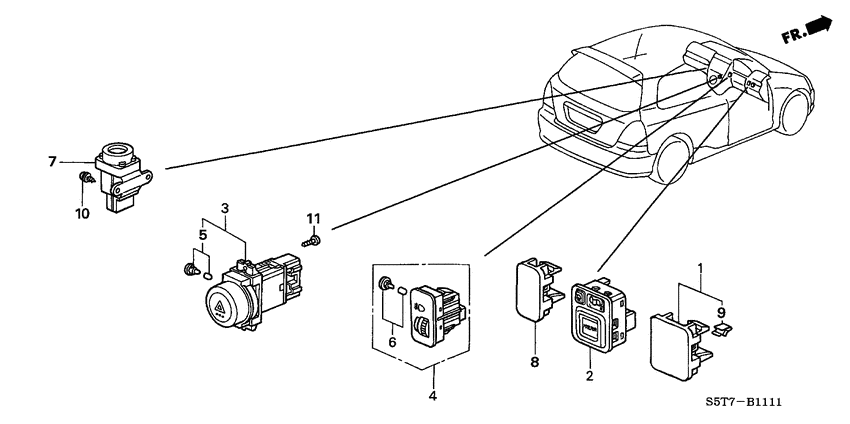

Switch (RH) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16V
- transmission
- 5MT
- Number of doors
- 3
- grade
- 1.6 SPORT
- area code
- KE
- right-hand drive
- +
- air conditioner (auto)
- +
- side srs
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
35190-S5N-C01ZA
Switch assy
|
35190-S5N-C01ZA |
— | ||
|
3
|
3
35510-S6A-J01
Switch assy
|
35510-S6A-J01 |
— | ||
|
4
|
4
35820-S5S-G11ZA
Switch assy
|
35820-S5S-G11ZA |
— | ||
|
5
|
5
35850-S6A-J01 Bulb comp.14V 60MA |
35850-S6A-J01 |
US $4.04 |
||
|
6
|
6
35850-S7A-G01 Bulb comp.14V 60MA |
35850-S7A-G01 |
US $3.64 |
||
|
7
|
7
35910-S04-G01
Switch assy
|
35910-S04-G01 |
— | ||
|
8
|
8
77755-S5A-A00ZC LidSWITCH HOLE *NH167L* |
77755-S5A-A00ZC |
US $3.85 |
||
|
10
|
10
93891-050-120-8 Screw-washer5X12 |
93891-050-120-8 |
from US $0.44 |
||
|
11
|
11
93903-22420 ScrewTAPPING, 3X16 |
93903-22420 |
from US $0.37 |
