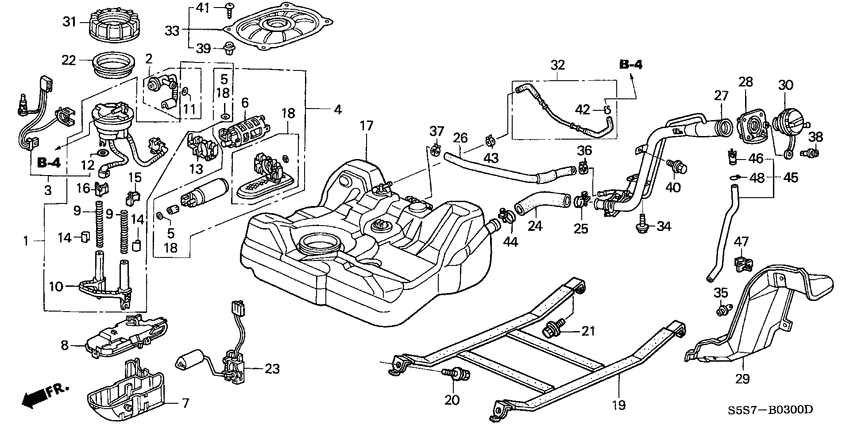

Fuel tank Diagram Honda CIVIC
- Year
- 2003
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16V
- transmission
- 5MT
- Number of doors
- 3
- grade
- 1.6ES
- area code
- KR
- left-hand drive
- +
- air conditioner (auto)
- +
- leather seat
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-S5A-932 Strainer setFUEL |
16010-S5A-932 |
from US $43.52 |
||
|
2
|
2
16015-S5A-930
Regulator assy
|
16015-S5A-930 |
— | ||
|
3
|
3
16016-S5A-930
Wire comp
|
16016-S5A-930 |
— | ||
|
4
|
4
17040-S5A-930 Fuel Pump set |
17040-S5A-930 |
US $641.92 |
||
|
5
|
5
17041-S5A-930 O-ring |
17041-S5A-930 |
from US $1.61 |
||
|
6
|
6
17042-S5A-930 HousingFUEL PUMP |
17042-S5A-930 |
US $18.30 |
||
|
7
|
7
17043-S5A-931
Reservoir
|
17043-S5A-931 |
— | ||
|
8
|
8
17044-S5A-930 CapRESERVOIR |
17044-S5A-930 |
US $8.26 |
||
|
9
|
9
17045-S5A-931
Spring
|
17045-S5A-931 |
— | ||
|
10
|
10
17046-S5A-931 Linkage |
17046-S5A-931 |
US $5.04 |
||
|
11
|
11
17047-S5A-930 O-ring |
17047-S5A-930 |
US $1.82 |
||
|
12
|
12
17048-S5A-930 O-ring |
17048-S5A-930 |
US $1.61 |
||
|
13
|
13
17049-S5A-930 HolderFUEL PUMP |
17049-S5A-930 |
US $1.82 |
||
|
14
|
14
17051-S5A-930 Collar |
17051-S5A-930 |
US $1.33 |
||
|
15
|
15
17052-S5A-930
Stopper a
|
17052-S5A-930 |
— | ||
|
16
|
16
17053-S5A-930
Stopper b
|
17053-S5A-930 |
— | ||
|
17
|
17
17500-S6D-E32
Tank comp.
|
17500-S6D-E32 |
— | ||
|
18
|
18
17516-S5A-930 Filter setFUEL PUMP |
17516-S5A-930 |
US $19.71 |
||
|
19
|
19
17521-S5A-931
Band
|
17521-S5A-931 |
— | ||
|
20
|
20
17525-SM4-000 Bolt-washer10X35 |
17525-SM4-000 |
from US $1.78 |
||
|
21
|
21
17525-S0X-A00 Bolt-washer10X25 |
17525-S0X-A00 |
US $1.75 |
||
|
22
|
22
17574-S1A-E01 PackingBASE |
17574-S1A-E01 |
US $30.79 |
||
| replacement | |||||
|
22
|
22
17574-S0X-A01 PackingBASE |
17574-S0X-A01 |
from US $8.26 |
||
|
23
|
23
17630-S5B-931 Meter comp |
17630-S5B-931 |
from US $21.50 |
||
|
24
|
24
17651-S5A-930
Tube
|
17651-S5A-930 |
— | ||
|
25
|
25
17652-S6M-J01 ClipFILLER TUBE |
17652-S6M-J01 |
US $4.62 |
||
|
26
|
26
17653-S5A-930
Tube
|
17653-S5A-930 |
— | ||
|
27
|
27
17660-S5A-E31
Pipe comp
|
17660-S5A-E31 |
— | ||
|
28
|
28
17662-S1A-E01 PackingFUEL FILLER |
17662-S1A-E01 |
US $10.92 |
||
|
29
|
29
17668-S5A-940
COVER, FUEL FILLER PIPE
|
17668-S5A-940 |
— | ||
|
30
|
30
17670-S5A-E33 Cap comp.FUEL FILLER (TOYODA) |
17670-S5A-E33 |
US $38 |
||
|
31
|
31
17719-S1A-E01 NutFUEL PUMP MODULE LOCK |
17719-S1A-E01 |
from US $14.72 |
||
|
32
|
32
17722-S6A-930
Tube b
|
17722-S6A-930 |
— | ||
|
33
|
33
74660-S5A-000
Cap assy.
|
74660-S5A-000 |
— | ||
|
34
|
34
90150-S04-003 BoltEARTH, 6X16 |
90150-S04-003 |
US $1.88 |
||
|
35
|
35
90657-SA5-003 ClipSIDE APRON MOLDING |
90657-SA5-003 |
from US $1.84 |
||
|
36
|
36
91413-S5A-003 ClampFUEL TUBE (D17) |
91413-S5A-003 |
US $1.19 |
||
|
37
|
37
91462-SDA-003 ClampFUEL TUBE (D18) |
91462-SDA-003 |
US $1.19 |
||
|
38
|
38
91594-S1A-E01 ClipFUEL FILLER CAP |
91594-S1A-E01 |
US $3.11 |
||
|
39
|
39
91601-SH3-013 GrommetSCREW, 5MM (BLACK) |
91601-SH3-013 |
from US $1.55 |
||
|
40
|
40
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
41
|
41
93901-25220 ScrewTAPPING, 5X12 |
93901-25220 |
from US $0.38 |
||
|
42
|
42
91401-SDC-000 ClipTUBE(B10) |
91401-SDC-000 |
US $0.91 |
||
|
43
|
43
91404-SDC-000 ClampTUBE (D10) |
91404-SDC-000 |
US $1.33 |
||
|
44
|
44
17652-S6M-J51 ClipFILLER TUBE |
17652-S6M-J51 |
US $4.62 |
||
