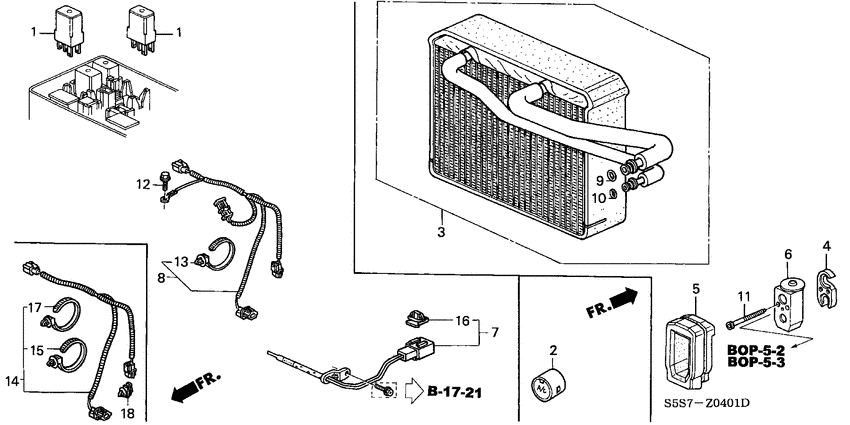

Air conditioner (EVAPORATOR; RH) Diagram Honda CIVIC
- Year
- 2001
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20A
- transmission
- 6MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KE
- right-hand drive
- +
- air conditioner (dealer set)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39794-S84-A01 Relay assyPOWER (4P) (MICRO ISO) (TYCO) |
39794-S84-A01 |
US $26.11 |
||
|
1
|
1
39794-S0K-A01
Relay assy
|
39794-S0K-A01 |
— | ||
| replacement | |||||
|
1
|
1
39794-S04-014 Relay assyPOWER (4P) (MICRO ISO) (MATSUSHITA) |
39794-S04-014 |
US $23.49 |
||
|
1
|
1
39794-S04-004
Relay assy
|
39794-S04-004 |
— | ||
|
1
|
1
39794-S1A-G01 Relay assyPOWER (4P) (MICRO ISO) (BOSCH) |
39794-S1A-G01 |
US $21.12 |
||
|
1
|
1
39794-S04-003 Relay assyPOWER (4P) (MICRO ISO) (MITSUBA) |
39794-S04-003 |
US $15.23 |
||
|
2
|
2
79601-S6A-003ZB
Knob *nh424l*
|
79601-S6A-003ZB |
— | ||
|
3
|
3
80211-S6D-E11 Evaporator assy. |
80211-S6D-E11 |
US $424.96 |
||
|
4
|
4
80215-S6D-003 Plate |
80215-S6D-003 |
US $10.50 |
||
|
5
|
5
80216-S6D-003 InsulatorEXPANSION VALVE |
80216-S6D-003 |
US $9.52 |
||
|
6
|
6
80220-S6A-003
Valve
|
80220-S6A-003 |
— | ||
|
7
|
7
80560-S6A-941
Thermistor
|
80560-S6A-941 |
— | ||
|
9
|
9
80871-ST7-000 O-ring5/8" |
80871-ST7-000 |
from US $2.69 |
||
|
10
|
10
80872-ST7-000 O-ring1/2" |
80872-ST7-000 |
from US $2.52 |
||
|
11
|
11
90125-S6A-003 Bolt5X35 |
90125-S6A-003 |
US $1.33 |
||
|
14
|
14
80460-S5T-E00 HarnessAIR CONDITIONER WIRE |
80460-S5T-E00 |
US $51.71 |
||
|
15
|
15
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $2.59 |
||
|
16
|
16
91580-SM4-003 ClipCOUPLER(ORANGE) |
91580-SM4-003 |
from US $1.68 |
||
|
17
|
17
91541-S0A-003 ClipHARNESS BAND(BLACK) (145MM) |
91541-S0A-003 |
from US $2.18 |
||
|
18
|
18
91565-SD5-003 ClipCOUPLER(NATURAL) |
91565-SD5-003 |
US $1.61 |
||
