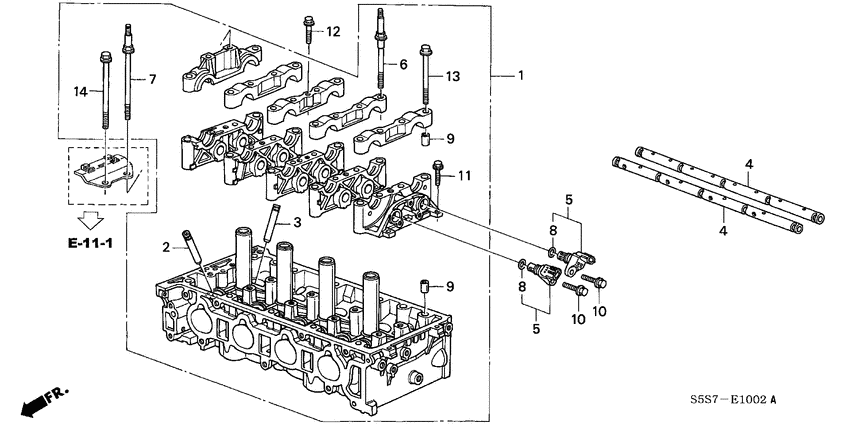

Cylinder head (TYPE R) Diagram Honda CIVIC
- Year
- 2001
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20A
- transmission
- 6MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KE
- right-hand drive
- +
- air conditioner (dealer set)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-PRB-A00
Head assy
|
12100-PRB-A00 |
— | ||
|
2
|
2
12204-PNA-305 GuideIN. VALVE (OS) |
12204-PNA-305 |
from US $10.42 |
||
|
3
|
3
12205-PNA-305 GuideEX. VALVE (OS) |
12205-PNA-305 |
US $10.42 |
||
|
4
|
4
14631-PNA-000 ShaftROCKER |
14631-PNA-000 |
US $88.21 |
||
|
5
|
5
37510-PNB-003 Sensor assyTDC |
37510-PNB-003 |
from US $67.86 |
||
|
6
|
6
90011-PNA-003 Bolt A, Head Cover |
90011-PNA-003 |
from US $5.33 |
||
|
7
|
7
90012-PNA-003 Bolt bHEAD COVER |
90012-PNA-003 |
from US $5.92 |
||
|
8
|
8
91333-PNA-003 O-ring15X1.9 |
91333-PNA-003 |
from US $1.39 |
||
|
9
|
9
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
10
|
10
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
11
|
11
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
12
|
12
95701-060-320-8 BoltFLANGE, 6X32 |
95701-060-320-8 |
from US $0.59 |
||
|
13
|
13
95701-080-900-8 BoltFLANGE, 8X90 |
95701-080-900-8 |
from US $1.18 |
||
|
14
|
14
95701-081-100-8 BoltFLANGE, 8X110 |
95701-081-100-8 |
from US $0.43 |
