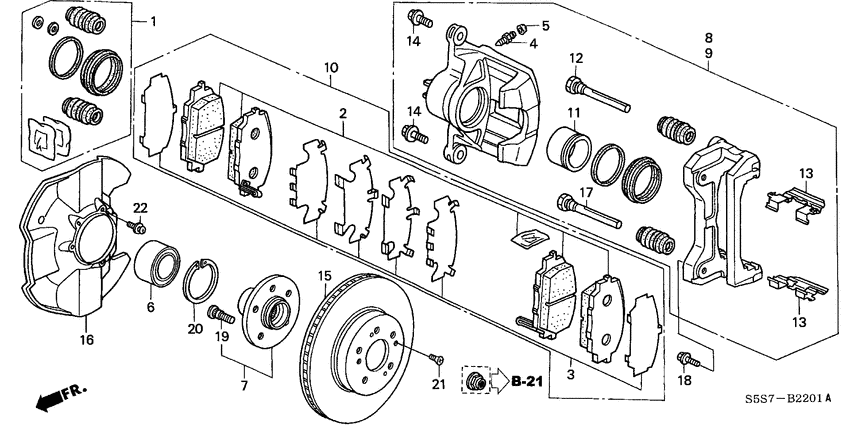

Front brake (2) Diagram Honda CIVIC
- Year
- 2001
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20A
- transmission
- 6MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KR
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01463-S2A-000 Caliper set |
01463-S2A-000 |
US $26.62 |
||
|
2
|
2
06450-S5T-E50 Pad setFR. (WITHOUT SHIM) |
06450-S5T-E50 |
US $113.92 |
||
|
3
|
3
06455-S2A-000
Shim set
|
06455-S2A-000 |
— | ||
|
4
|
4
43352-SM4-951 ScrewBLEEDER |
43352-SM4-951 |
from US $3.26 |
||
|
5
|
5
43353-SD5-003 CapBLEEDER SCREW |
43353-SD5-003 |
from US $2.12 |
||
|
6
|
6
44300-S1A-E01
Bearing assy
|
44300-S1A-E01 |
— | ||
|
7
|
7
44600-S87-A00 Hub assyFR. |
44600-S87-A00 |
US $103.04 |
||
|
7
|
7
44600-S1A-E40 Hub assyFR. |
44600-S1A-E40 |
US $156.16 |
||
|
8
|
8
45018-S6M-A01 Caliper sub assy.R. FR. |
45018-S6M-A01 |
US $537.60 |
||
|
9
|
9
45019-S6M-A01 Caliper sub assy.L. FR. |
45019-S6M-A01 |
US $537.60 |
||
|
10
|
10
45022-S5T-E50 Pad setFR. (16CL-16VN,J632) |
45022-S5T-E50 |
US $121.60 |
||
|
11
|
11
45216-SR3-V01
Piston
|
45216-SR3-V01 |
— | ||
| replacement | |||||
|
11
|
11
45216-S5A-J01 Piston |
45216-S5A-J01 |
US $51.61 |
||
|
12
|
12
45235-S0A-003 Pin a |
45235-S0A-003 |
US $9.62 |
||
|
13
|
13
45237-S2A-003 Retainer |
45237-S2A-003 |
US $7.62 |
||
|
14
|
14
45240-SA7-003 BoltFLANGE, 8X22 |
45240-SA7-003 |
US $3.22 |
||
|
15
|
15
45251-S6M-A10 DiskFR. BRAKE (16") |
45251-S6M-A10 |
US $231.68 |
||
|
16
|
16
45255-S6M-000
Guard
|
45255-S6M-000 |
— | ||
|
17
|
17
45262-S0A-003 Pin b |
45262-S0A-003 |
US $9.52 |
||
|
18
|
18
90107-SM4-000 BoltCALIPER MOUNTING (12X21) |
90107-SM4-000 |
from US $2.03 |
||
|
19
|
19
90113-SD4-901
Bolt
|
90113-SD4-901 |
— | ||
| replacement | |||||
|
19
|
19
90113-SD4-902 BoltWHEEL (SAGA) |
90113-SD4-902 |
US $4.88 |
||
|
19
|
19
90113-S84-901 BoltWHEEL (ROCKNEL FASTENER) |
90113-S84-901 |
from US $3.08 |
||
|
19
|
19
90113-SD4-902 BoltWHEEL (SAGA) |
90113-SD4-902 |
US $4.88 |
||
|
20
|
20
90681-SG0-000 CirclipINTERNAL, 84MM |
90681-SG0-000 |
US $14.65 |
||
|
21
|
21
93600-060-140-H ScrewFLAT, 6X14 |
93600-060-140-H |
from US $0.44 |
||
|
22
|
22
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
