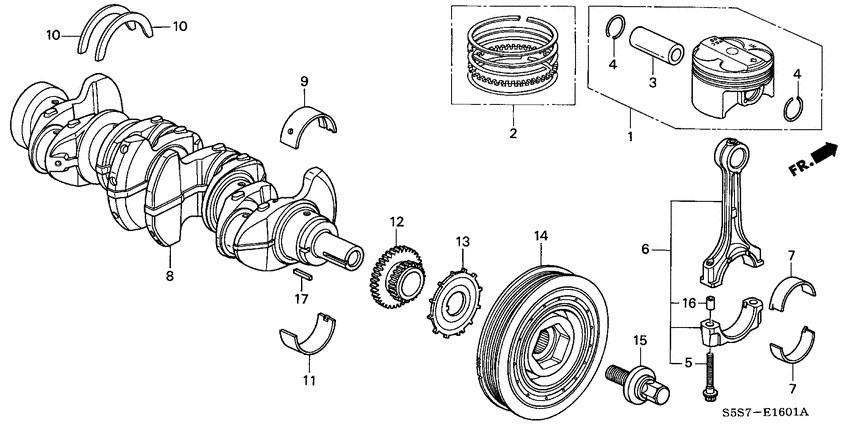

Piston/crankshaft (TYPE R) Diagram Honda CIVIC
- Year
- 2001
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20A
- transmission
- 6MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KR
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13010-PRA-E00 Piston set aSTD. 00000000 - 1000123 |
13010-PRA-E00 |
US $71.68 |
||
|
1
|
1
13020-PRA-E00 Piston set bSTD. 00000000 - 1000123 |
13020-PRA-E00 |
US $71.68 |
||
|
1
|
1
13010-PRB-A00
Piston set a
1000124 - |
13010-PRB-A00 |
— | ||
|
1
|
1
13030-PRA-E00
Piston set
00000000 - 1000123 |
13030-PRA-E00 |
— | ||
|
1
|
1
13020-PRB-A00
Piston set b
1000124 - |
13020-PRB-A00 |
— | ||
|
1
|
1
13030-PRB-A00
Piston set
1000124 - |
13030-PRB-A00 |
— | ||
|
2
|
2
13021-PRA-E01
Ring set
|
13021-PRA-E01 |
— | ||
|
2
|
2
13011-PRA-E01
Ring set
|
13011-PRA-E01 |
— | ||
|
3
|
3
13111-PNA-000
Pin
|
13111-PNA-000 |
— | ||
| replacement | |||||
|
3
|
3
13111-PNA-010 PinPISTON |
13111-PNA-010 |
from US $11.35 |
||
|
4
|
4
13115-PRB-A00 ClipPISTON PIN |
13115-PRB-A00 |
US $2.18 |
||
|
5
|
5
13204-PRB-A01 BoltCONNECTING ROD |
13204-PRB-A01 |
US $3.92 |
||
|
6
|
6
13210-PRB-A00 Rod compCONNECTING |
13210-PRB-A00 |
US $117.12 |
||
|
7
|
7
13217-PRB-A01 Bearing gCONNECTING ROD (RED) (DAIDO) |
13217-PRB-A01 |
US $13.18 |
||
|
7
|
7
13212-PRB-A01 Bearing bCONNECTING ROD (BLACK) (DAIDO) |
13212-PRB-A01 |
US $16.05 |
||
|
7
|
7
13214-PRB-A01 Bearing dCONNECTING ROD (GREEN) (DAIDO) |
13214-PRB-A01 |
US $16.05 |
||
|
7
|
7
13216-PRB-A01 Bearing fCONNECTING ROD (PINK) (DAIDO) |
13216-PRB-A01 |
US $13.18 |
||
|
7
|
7
13211-PRB-A01
BEARING A
|
13211-PRB-A01 |
— | ||
|
7
|
7
13213-PRB-A01 Bearing cCONNECTING ROD (BROWN) (DAIDO) |
13213-PRB-A01 |
US $16.05 |
||
|
7
|
7
13215-PRB-A01 Bearing eCONNECTING ROD (YELLOW) (DAIDO) |
13215-PRB-A01 |
US $13.18 |
||
|
8
|
8
13310-PRB-A00 Crankshaft comp. |
13310-PRB-A00 |
US $2,562.65 |
||
|
9
|
9
13324-PRB-A01 Bearing dMAIN UPPER(GREEN) (DAIDO) |
13324-PRB-A01 |
US $16.32 |
||
|
9
|
9
13326-PRB-A01 Bearing fMAIN UPPER(PINK) (DAIDO) |
13326-PRB-A01 |
US $10.92 |
||
|
9
|
9
13321-PRB-A01 BEARING AMAIN UPPER(BLUE) (DAIDO) |
13321-PRB-A01 |
US $13.30 |
||
|
9
|
9
13323-PRB-A01 Bearing cMAIN UPPER(BROWN) (DAIDO) |
13323-PRB-A01 |
US $14.82 |
||
|
9
|
9
13325-PRB-A01 Bearing eMAIN UPPER(YELLOW) (DAIDO) |
13325-PRB-A01 |
US $10.92 |
||
|
9
|
9
13322-PRB-A01 Bearing bMAIN UPPER(BLACK) (DAIDO) |
13322-PRB-A01 |
US $14.82 |
||
|
10
|
10
13331-PNA-004 WasherTHRUST(TAIHO) |
13331-PNA-004 |
from US $7.10 |
||
|
11
|
11
13342-PRB-A01 Bearing bMAIN LOWER(BLACK) (DAIDO) |
13342-PRB-A01 |
US $14.82 |
||
|
11
|
11
13344-PRB-A01 Bearing dMAIN LOWER(GREEN) (DAIDO) |
13344-PRB-A01 |
US $16.32 |
||
|
11
|
11
13346-PRB-A01 Bearing fMAIN LOWER(PINK) (DAIDO) |
13346-PRB-A01 |
US $10.92 |
||
|
11
|
11
13341-PRB-A01 BEARING AMAIN LOWER(BLUE) (DAIDO) |
13341-PRB-A01 |
US $15.86 |
||
|
11
|
11
13343-PRB-A01 Bearing cMAIN LOWER(BROWN) (DAIDO) |
13343-PRB-A01 |
US $14.82 |
||
|
11
|
11
13345-PRB-A01 Bearing eMAIN LOWER(YELLOW) (DAIDO) |
13345-PRB-A01 |
US $10.92 |
||
|
12
|
12
13620-PNA-000
Sprocket comp
|
13620-PNA-000 |
— | ||
|
13
|
13
13622-PNA-003 PlateCRANK PULSER |
13622-PNA-003 |
from US $9.77 |
||
|
14
|
14
13810-PRB-A01
Pulley comp
|
13810-PRB-A01 |
— | ||
| replacement | |||||
|
14
|
14
13810-RRB-A01 Pulley compCRANKSHAFT |
13810-RRB-A01 |
US $169.93 |
||
|
15
|
15
90017-PCX-003
Bolt-washer
|
90017-PCX-003 |
— | ||
| replacement | |||||
|
15
|
15
90017-PCX-013 Bolt-washer16X49 |
90017-PCX-013 |
from US $11.54 |
||
|
16
|
16
90703-PDE-E00 Dowel pin11X12 |
90703-PDE-E00 |
US $2.03 |
||
|
17
|
17
90704-PNA-000 Key4.5X21 |
90704-PNA-000 |
from US $2.17 |
||
