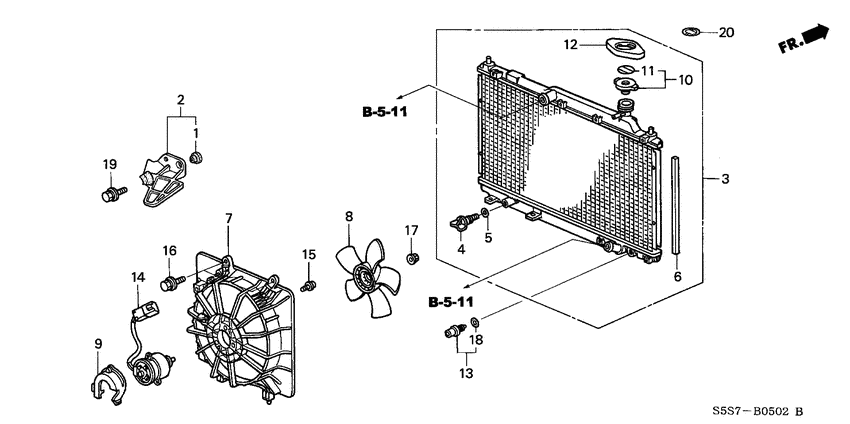

Radiator (DENSO; TYPE R) Diagram Honda CIVIC
- Year
- 2001
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20A
- transmission
- 6MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KR
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17213-P8A-A00 RubberINTAKE MANIFOLD COVER MOUNTING |
17213-P8A-A00 |
from US $1.85 |
||
|
2
|
2
17254-PRA-G00 Cover assy.AIR INTAKE |
17254-PRA-G00 |
US $9.94 |
||
|
3
|
3
19010-PRA-003 Radiator compDENSO |
19010-PRA-003 |
US $1,134.08 |
||
|
4
|
4
19011-PH1-621 BoltDRAIN (DENSO) |
19011-PH1-621 |
from US $5.91 |
||
|
5
|
5
19012-671-300 PackingDRAIN (DENSO) |
19012-671-300 |
from US $1.85 |
||
|
6
|
6
19013-PCA-003 SealDENSO |
19013-PCA-003 |
US $9.94 |
||
|
7
|
7
19015-PRA-003
Shroud comp.
|
19015-PRA-003 |
— | ||
|
8
|
8
19020-PND-003 FanCOOLING |
19020-PND-003 |
US $38.53 |
||
|
9
|
9
19031-PLC-003 CoverMOTOR END |
19031-PLC-003 |
US $12.74 |
||
|
10
|
10
19045-PAA-A01 Cap comp.RADIATOR (DENSO) |
19045-PAA-A01 |
from US $17.50 |
||
|
11
|
11
19046-PAA-A00 LabelRADIATOR CAP |
19046-PAA-A00 |
from US $1.55 |
||
|
12
|
12
19047-PLC-003 CoverRADIATOR CAP (DENSO) |
19047-PLC-003 |
US $5.86 |
||
|
13
|
13
37760-P00-003 Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)(NIPPON THERMOSTAT) |
37760-P00-003 |
from US $43.66 |
||
|
14
|
14
38616-PSA-003 MotorCOOLING FAN |
38616-PSA-003 |
US $212.48 |
||
|
15
|
15
90041-P5A-003 Screw-washer4X11 |
90041-P5A-003 |
US $1.33 |
||
|
16
|
16
90042-PAA-A01 Bolt-washer6X16 (DENSO) |
90042-PAA-A01 |
US $1.47 |
||
|
17
|
17
90043-PD2-003 NutHEX., 5MM (DENSO) |
90043-PD2-003 |
from US $2.44 |
||
|
18
|
18
91307-PN4-000
O-ring
|
91307-PN4-000 |
— | ||
| replacement | |||||
|
18
|
18
91307-PN3-000 O-ring,17.8x1.4 |
91307-PN3-000 |
from US $1.66 |
||
|
19
|
19
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
