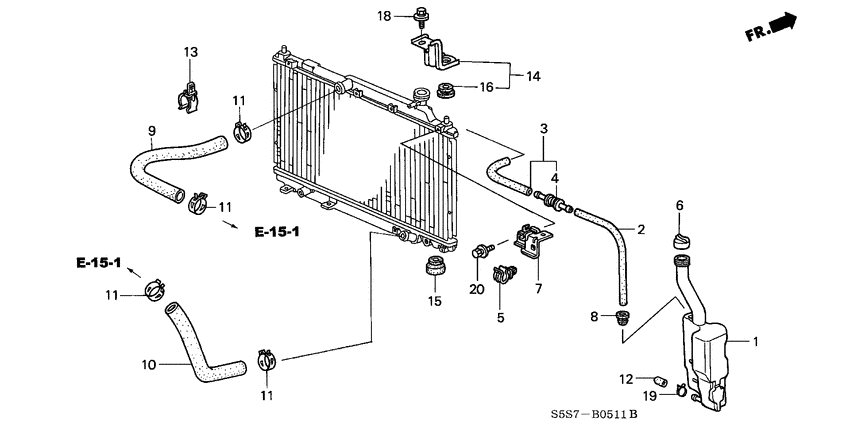

Radiator hose (TYPE R) Diagram Honda CIVIC
- Year
- 2001
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20A
- transmission
- 6MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KR
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19101-PRA-000
Tank
|
19101-PRA-000 |
— | ||
|
2
|
2
19103-PRA-000
Tube
|
19103-PRA-000 |
— | ||
|
3
|
3
19104-PRA-000 Hose comp.RESERVE TANK |
19104-PRA-000 |
US $5.14 |
||
|
4
|
4
19105-PLC-000
Joint
|
19105-PLC-000 |
— | ||
|
5
|
5
19108-PM0-003 ClampRESERVE TANK TUBE (BLACK) |
19108-PM0-003 |
US $3.02 |
||
|
6
|
6
19109-PH1-620 CapFILLER |
19109-PH1-620 |
from US $3.83 |
||
|
7
|
7
19113-PRA-000
Stay
|
19113-PRA-000 |
— | ||
|
8
|
8
19117-PND-000 GrommetRESERVE TANK |
19117-PND-000 |
US $3.92 |
||
|
9
|
9
19501-PRA-000 HoseWATER UPPER |
19501-PRA-000 |
US $17.66 |
||
|
10
|
10
19502-PRA-000 HoseWATER LOWER |
19502-PRA-000 |
US $13.16 |
||
|
11
|
11
19511-P30-003
Clip, WATER HOSE (CHUO SPRING)
|
19511-P30-003 |
— | ||
| replacement | |||||
|
11
|
11
19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) |
19511-PH7-003 |
from US $3.94 |
||
|
12
|
12
19515-PH4-600 CapSEALING, 7.3MM |
19515-PH4-600 |
US $3.97 |
||
|
13
|
13
19519-PRB-A01
Clamp
|
19519-PRB-A01 |
— | ||
|
14
|
14
74171-S5T-G00 BracketRADIATOR MOUNT UPPER |
74171-S5T-G00 |
US $10.08 |
||
|
15
|
15
74172-SS0-000 CushionRADIATOR MOUNTING LOWER |
74172-SS0-000 |
from US $6.30 |
||
|
16
|
16
74173-SJ4-000 CushionRADIATOR MOUNTING UPPER |
74173-SJ4-000 |
from US $3.26 |
||
|
18
|
18
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
19
|
19
95002-412-500-4 ClampTUBE (D12.5) |
95002-412-500-4 |
from US $0.74 |
||
|
20
|
20
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
