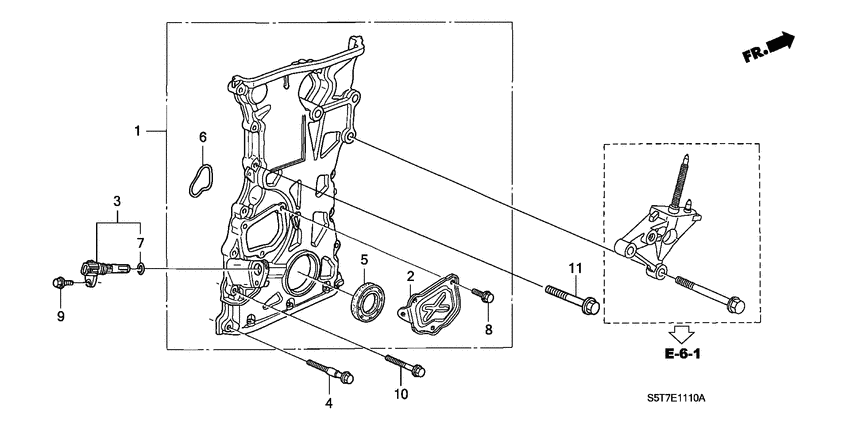

Chain case Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20A
- transmission
- 6MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KR
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11410-PNC-000 Case assy. Chain00000000 - 5008613 |
11410-PNC-000 |
US $201.96 |
||
|
1
|
1
11410-RRA-A00 Case assy.CHAIN 5008614 - |
11410-RRA-A00 |
US $128 |
||
|
2
|
2
11412-PNA-000 CoverCHAIN CASE |
11412-PNA-000 |
US $10.09 |
||
|
3
|
3
37500-PNB-003 Sensor assyCRANK |
37500-PNB-003 |
from US $61.95 |
||
|
4
|
4
90021-PNA-000 BoltSPECIAL, 6X31 |
90021-PNA-000 |
US $1.89 |
||
|
5
|
5
91212-PNC-003 Oil seal43X58X7 (NOK) 00000000 - 5007743 |
91212-PNC-003 |
from US $11.25 |
||
|
5
|
5
91212-RNA-A01 Oil seal43X58X7(ARAI) 5007744 - |
91212-RNA-A01 |
from US $12.43 |
||
|
5
|
5
91212-PNC-004 Oil seal43X58X7 (ARAI) 00000000 - 5007743 |
91212-PNC-004 |
from US $7.25 |
||
|
5
|
5
91212-RTA-003 Oil seal43X58X7 (NOK) 5007744 - |
91212-RTA-003 |
from US $13.62 |
||
|
6
|
6
91302-PNA-004 O-ringCHAIN CASE |
91302-PNA-004 |
from US $3.51 |
||
|
7
|
7
91333-PNA-003 O-ring15X1.9 |
91333-PNA-003 |
from US $1.39 |
||
|
8
|
8
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
9
|
9
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
10
|
10
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
|
11
|
11
95701-100-500-8 BoltFLANGE, 10X50 5008614 - |
95701-100-500-8 |
from US $0.98 |
||
|
11
|
11
95701-060-300-8 BoltFLANGE, 6X30 00000000 - 5008613 |
95701-060-300-8 |
from US $0.74 |
