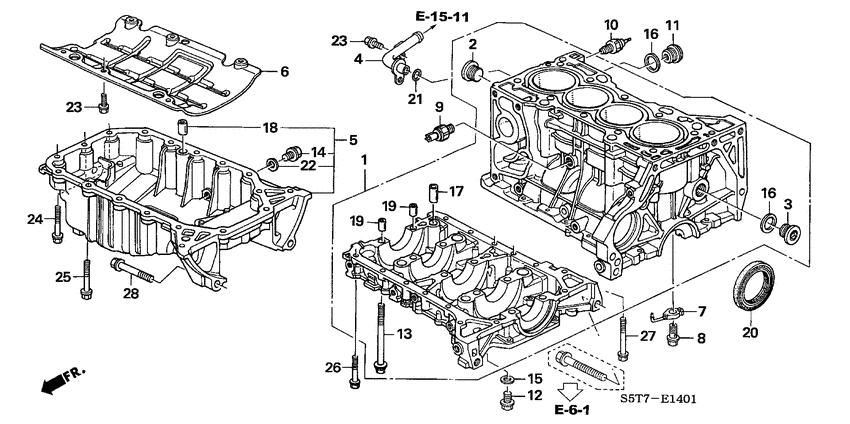

Cylinder block/oil pan (TYPE R) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20A
- transmission
- 6MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KR
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11000-PRB-A00
Block assy
00000000 - 5008613 |
11000-PRB-A00 |
— | ||
|
1
|
1
11000-PRB-B00
Block assy
5008614 - |
11000-PRB-B00 |
— | ||
|
2
|
2
11106-PNA-300 BoltSEALING, 20MM |
11106-PNA-300 |
from US $3.08 |
||
|
3
|
3
11106-PR4-013 BoltSEALING, 28MM |
11106-PR4-013 |
from US $5.14 |
||
|
4
|
4
11107-PRB-A01 Joint compOIL COOLER 5008645 - |
11107-PRB-A01 |
US $13.44 |
||
|
4
|
4
11107-PRB-A00 Joint compOIL COOLER 00000000 - 5008644 |
11107-PRB-A00 |
US $13.44 |
||
|
5
|
5
11200-PRB-000 Pan compOIL |
11200-PRB-000 |
US $295.68 |
||
|
6
|
6
11221-PNC-000 PlateBAFFLE |
11221-PNC-000 |
from US $35.77 |
||
|
7
|
7
15280-PRB-A00 Body compOIL JET |
15280-PRB-A00 |
from US $11.99 |
||
|
8
|
8
15290-PRA-000 Bolt compOIL JET |
15290-PRA-000 |
from US $12.74 |
||
|
9
|
9
30530-PRB-A01 SensorKNOCK |
30530-PRB-A01 |
US $116.69 |
||
|
10
|
10
37240-PT0-023
Switch
|
37240-PT0-023 |
— | ||
| replacement | |||||
|
10
|
10
37240-PT0-014 SwitchOIL PRESSURE (TEC) |
37240-PT0-014 |
from US $25.58 |
||
|
10
|
10
37240-PT0-014 SwitchOIL PRESSURE (TEC) |
37240-PT0-014 |
from US $25.58 |
||
|
11
|
11
90001-PM3-003 BoltDRAIN PLUG, 28MM |
90001-PM3-003 |
from US $7.16 |
||
|
12
|
12
90004-PE2-005 BoltSEALING, 10MM |
90004-PE2-005 |
from US $2.22 |
||
|
13
|
13
90006-PNA-003 Bolt-washer11X95 |
90006-PNA-003 |
from US $3.40 |
||
|
14
|
14
90009-PY3-000 DRAIN PLUG BOLT, 14MM |
90009-PY3-000 |
from US $2.92 |
||
|
15
|
15
90401-PE2-003 WasherSEALING, 10MM |
90401-PE2-003 |
from US $2.15 |
||
|
16
|
16
90401-PR4-000 WasherSEALING, 28MM |
90401-PR4-000 |
from US $1.89 |
||
|
17
|
17
90703-PE0-000 Dowel pin18X22 |
90703-PE0-000 |
from US $3.29 |
||
|
18
|
18
90715-PC6-000 Dowel pin13X20 |
90715-PC6-000 |
from US $2.25 |
||
|
19
|
19
90715-PNA-000 Dowel pin13X14 |
90715-PNA-000 |
from US $2.03 |
||
|
20
|
20
91214-PNA-014 Oil seal80X98X10 (ARAI) 00000000 - 5006780 |
91214-PNA-014 |
from US $12.73 |
||
| replacement | |||||
|
20
|
20
91214-RNB-A01 Oil seal (80x98x10)00000000 - 5006780 |
91214-RNB-A01 |
from US $21.90 |
||
|
20
|
20
91214-RTA-004 Oil seal80X98X10 (ARAI) 5006781 - |
91214-RTA-004 |
US $17.51 |
||
| replacement | |||||
|
20
|
20
91214-RNB-A01 Oil seal (80x98x10)5006781 - |
91214-RNB-A01 |
from US $21.90 |
||
|
20
|
20
91214-PWA-003 Oil seal80X98X10 (NOK) |
91214-PWA-003 |
from US $13.87 |
||
|
21
|
21
91311-PRB-A00 O-ring13.5X3.5 |
91311-PRB-A00 |
from US $1.53 |
||
|
22
|
22
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
|
23
|
23
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
24
|
24
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
|
25
|
25
95701-060-320-8 BoltFLANGE, 6X32 |
95701-060-320-8 |
from US $0.59 |
||
|
26
|
26
95701-080-350-8 BoltFLANGE, 8X35 |
95701-080-350-8 |
from US $0.74 |
||
|
27
|
27
95701-080-500-8 BoltFLANGE, 8X50 |
95701-080-500-8 |
from US $0.81 |
||
|
28
|
28
95701-100-500-8 BoltFLANGE, 10X50 |
95701-100-500-8 |
from US $0.98 |
||
