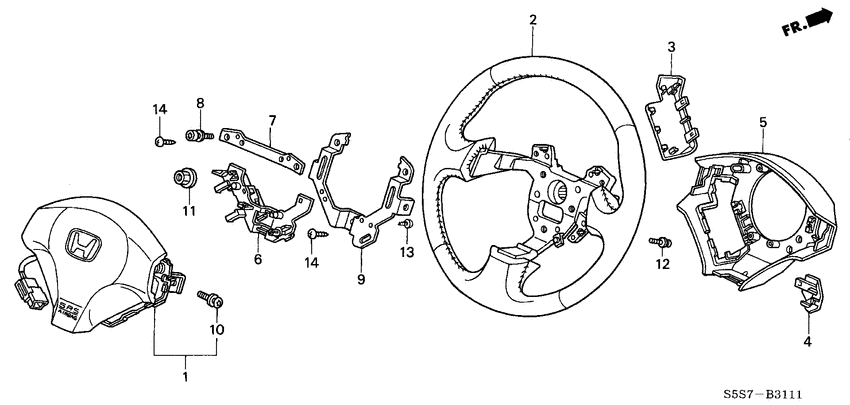

Steering wheel (SRS; 2) Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20A
- transmission
- 6MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06770-S5T-G80ZC
Module kit
|
06770-S5T-G80ZC |
— | ||
|
2
|
2
78501-S6M-A91ZC
Grip comp. *tred*
|
78501-S6M-A91ZC |
— | ||
|
3
|
3
78514-S2A-A61ZA Cap aBODY COVER *NH167L* |
78514-S2A-A61ZA |
US $14.80 |
||
|
4
|
4
78515-S2A-A61ZA Cap bBODY COVER *NH167L* |
78515-S2A-A61ZA |
US $13.02 |
||
|
5
|
5
78518-S6M-N61ZA
Cover
|
78518-S6M-N61ZA |
— | ||
|
6
|
6
78519-S6M-N61 HolderCOUPLER (2P) |
78519-S6M-N61 |
US $3.36 |
||
|
7
|
7
78523-S6M-N61 PlateCONTACT |
78523-S6M-N61 |
US $5.74 |
||
|
8
|
8
78524-S6M-N61
Screw-washer
|
78524-S6M-N61 |
— | ||
|
9
|
9
78540-S6M-N61
Bracket comp.
|
78540-S6M-N61 |
— | ||
|
10
|
10
90134-S6A-A80 BoltHEX., 6X23 |
90134-S6A-A80 |
from US $2.19 |
||
|
11
|
11
90163-S04-000 NutSTEERING WHEEL |
90163-S04-000 |
US $2.93 |
||
|
13
|
13
93911-24120 ScrewTAPPING, 4X10 (PO) |
93911-24120 |
from US $0.37 |
||
|
14
|
14
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
