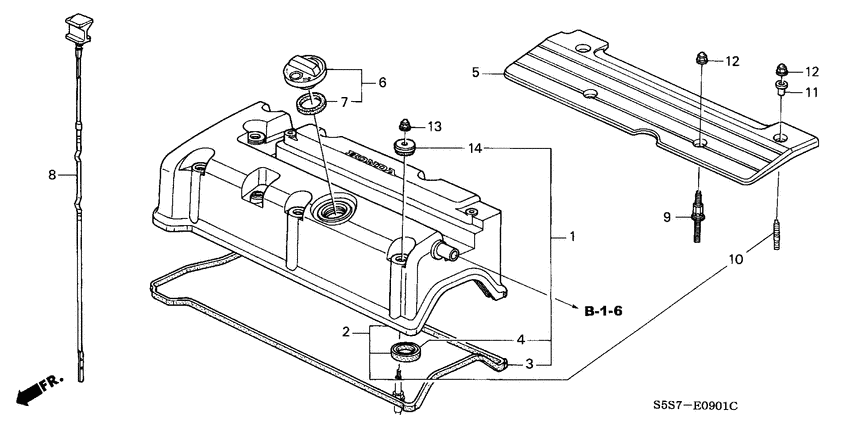

Cylinder head cover (TYPE R) Diagram Honda CIVIC
- Year
- 2003
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20A
- transmission
- 6MT
- Number of doors
- 3
- grade
- TYPE R ANNIVERS
- area code
- KE
- right-hand drive
- +
- air conditioner (dealer set)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12030-PNC-000 Packing setHEAD COVER |
12030-PNC-000 |
from US $89.76 |
||
|
2
|
2
12310-PRC-020
Cover comp.
|
12310-PRC-020 |
— | ||
|
3
|
3
12341-PNA-000 PackingCYLINDER HEAD COVER |
12341-PNA-000 |
from US $22.42 |
||
| replacement | |||||
|
3
|
3
12341-RTA-000 Packing, CYLINDER HEAD COVERCYLINDER HEAD COVER |
12341-RTA-000 |
from US $22.42 |
||
|
4
|
4
12342-PCX-004 SealSPARK PLUG TUBE (NOK) |
12342-PCX-004 |
from US $6.19 |
||
|
5
|
5
12500-PRC-020
Cover comp.
|
12500-PRC-020 |
— | ||
|
6
|
6
15610-P5G-000 Cap assy.OIL FILLER |
15610-P5G-000 |
US $38 |
||
|
7
|
7
15613-PC6-000 Packing, Oil Filler |
15613-PC6-000 |
from US $4 |
||
|
8
|
8
15650-PRC-004 Gauge, Oil Level |
15650-PRC-004 |
US $13.86 |
||
|
9
|
9
90013-PNC-010 Bolt aPLUG HOLE COIL COVER |
90013-PNC-010 |
from US $4.03 |
||
|
10
|
10
90014-PNC-020 Bolt bPLUG HOLE COIL COVER |
90014-PNC-020 |
US $3.91 |
||
|
11
|
11
90015-PNC-000 CollarPLUG HOLE COIL COVER |
90015-PNC-000 |
US $3.33 |
||
|
12
|
12
90207-RBC-000 NutCAP, 6MM |
90207-RBC-000 |
US $1.48 |
||
|
13
|
13
90213-PH3-000 NutCAP, 6MM |
90213-PH3-000 |
from US $2.22 |
||
|
14
|
14
90441-PNA-010 WasherHEAD COVER |
90441-PNA-010 |
from US $5.27 |
||
