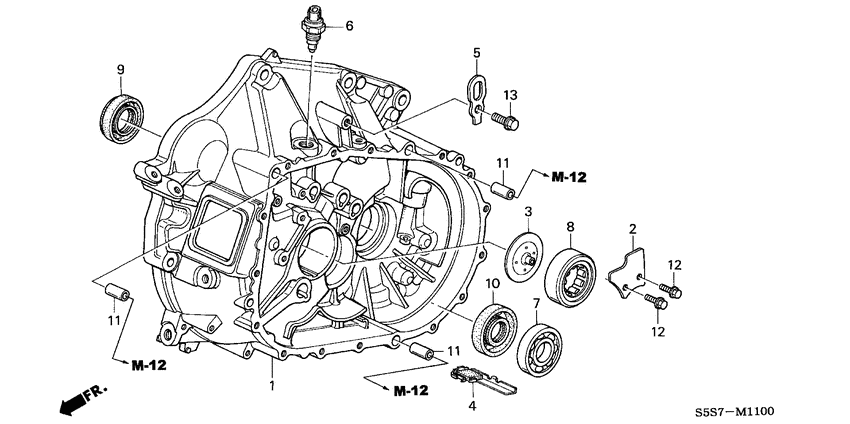

Clutch case (6MT) Diagram Honda CIVIC
- Year
- 2002
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20A
- transmission
- 6MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21000-PNS-000 Case comp.CLUTCH |
21000-PNS-000 |
US $510.72 |
||
|
2
|
2
21101-PPP-000 PlateNEEDLE SET |
21101-PPP-000 |
US $4.76 |
||
|
3
|
3
21103-PPP-000 Plate cOIL GUIDE |
21103-PPP-000 |
US $3.22 |
||
|
4
|
4
21120-PLW-000 MagnetTRANSMISSION |
21120-PLW-000 |
US $8.54 |
||
|
5
|
5
21222-PPP-000 HangerTRANSMISSION |
21222-PPP-000 |
US $6.72 |
||
|
6
|
6
28700-PWL-003
Switch assy
|
28700-PWL-003 |
— | ||
|
7
|
7
91001-PPP-005 BearingBALL, 28X64X15 |
91001-PPP-005 |
from US $21.76 |
||
|
8
|
8
91003-PPP-004 BearingNEEDLE, 35X68X20 |
91003-PPP-004 |
US $25.84 |
||
|
9
|
9
91206-PHR-003 Oil seal35X58X8 (NOK) |
91206-PHR-003 |
from US $7.65 |
||
|
10
|
10
91216-PG1-005 Oil seal28X43X7 (NOK) |
91216-PG1-005 |
from US $5.86 |
||
|
11
|
11
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
|
12
|
12
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
13
|
13
95701-100-250-8 BoltFLANGE, 10X25 |
95701-100-250-8 |
from US $0.81 |
