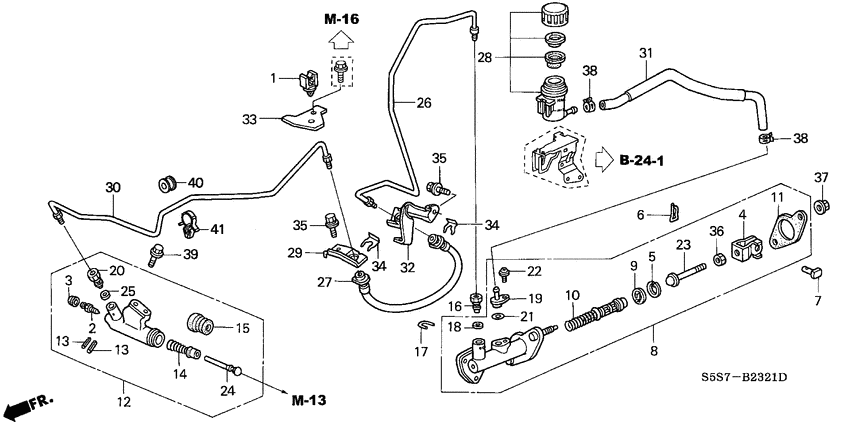

Clutch master cylinder (LH; 2) Diagram Honda CIVIC
- Year
- 2002
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20A
- transmission
- 6MT
- Number of doors
- 3
- grade
- TYPE R
- area code
- KR
- left-hand drive
- +
- air conditioner (dealer set)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46977-S2H-G01 ClipCLUTCH PIPE |
46977-S2H-G01 |
US $2.17 |
||
|
2
|
2
43352-567-000 ScrewBLEEDER |
43352-567-000 |
US $3.26 |
||
|
3
|
3
43353-SD5-003 CapBLEEDER SCREW |
43353-SD5-003 |
from US $2.12 |
||
|
4
|
4
46151-S5A-A01 Yoke |
46151-S5A-A01 |
US $9.88 |
||
|
5
|
5
46182-500-013 Circlip |
46182-500-013 |
from US $2.07 |
||
|
6
|
6
46911-S70-003 Pin, LOCK(8MM) |
46911-S70-003 |
from US $1.85 |
||
|
7
|
7
46912-S84-A00 PinCLUTCH PEDAL |
46912-S84-A00 |
from US $2.31 |
||
|
8
|
8
46920-S7A-A01
Cylinder assy.
|
46920-S7A-A01 |
— | ||
|
9
|
9
46921-S5A-003 PlateSTOPPER |
46921-S5A-003 |
US $3.78 |
||
|
10
|
10
46926-S5A-003
Piston comp
|
46926-S5A-003 |
— | ||
|
11
|
11
46928-S5A-A01 SealMASTER CYLINDER |
46928-S5A-A01 |
US $2.52 |
||
|
12
|
12
46930-S7C-E01 Cylinder assy.CLUTCH SLAVE |
46930-S7C-E01 |
US $79.36 |
||
|
13
|
13
46931-S5A-003 PinSPRING |
46931-S5A-003 |
US $2.31 |
||
|
14
|
14
46932-S5A-003 PistonSLAVE CYLINDER |
46932-S5A-003 |
US $23.04 |
||
|
15
|
15
46937-SS1-003
Boot
|
46937-SS1-003 |
— | ||
|
16
|
16
46941-S5A-003 ConnectorCLUTCH MASTER CYLINDER |
46941-S5A-003 |
US $10.78 |
||
|
17
|
17
46942-S5A-003 PinSNAP |
46942-S5A-003 |
US $2.44 |
||
|
18
|
18
46943-S5A-003 SealRING |
46943-S5A-003 |
US $2.15 |
||
|
19
|
19
46944-S5A-J01 Connector |
46944-S5A-J01 |
US $6.16 |
||
|
20
|
20
46941-S5A-003 ConnectorCLUTCH MASTER CYLINDER |
46941-S5A-003 |
US $10.78 |
||
|
21
|
21
46945-S5A-003 O-ring |
46945-S5A-003 |
US $2.15 |
||
|
22
|
22
46946-S5A-003 Screw-washer4X12 |
46946-S5A-003 |
US $1.47 |
||
|
23
|
23
46947-S5A-003
Rod
|
46947-S5A-003 |
— | ||
|
24
|
24
46948-S5A-003 RodPUSH |
46948-S5A-003 |
US $7.56 |
||
|
25
|
25
46949-S5A-003 SealRING |
46949-S5A-003 |
US $2.15 |
||
|
26
|
26
46960-S5T-G03
Pipe comp. a
|
46960-S5T-G03 |
— | ||
|
27
|
27
46961-S7C-A01 HoseCLUTCH |
46961-S7C-A01 |
US $36.86 |
||
|
28
|
28
46965-S5A-013
Tank assy.
|
46965-S5A-013 |
— | ||
|
29
|
29
46968-S7C-E01 Bracket bCLUTCH PIPE |
46968-S7C-E01 |
US $6.69 |
||
|
30
|
30
46970-S7C-E01 Pipe, B Clutch |
46970-S7C-E01 |
US $48.32 |
||
|
31
|
31
46971-S5T-G01
Tube
|
46971-S5T-G01 |
— | ||
|
32
|
32
46995-S5T-G02 Bracket aCLUTCH PIPE |
46995-S5T-G02 |
US $13.58 |
||
|
33
|
33
46996-S7C-E00
Stay
|
46996-S7C-E00 |
— | ||
|
34
|
34
90651-538-000 ClipBRAKE HOSE |
90651-538-000 |
from US $2.74 |
||
|
35
|
35
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
36
|
36
94002-080-800-S NutHEX., 8MM |
94002-080-800-S |
from US $0.49 |
||
| replacement | |||||
|
36
|
36
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
37
|
37
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
38
|
38
95002-412-000-4 ClampTUBE (D12) 00000000 - 2U006651 |
95002-412-000-4 |
from US $0.74 |
||
|
38
|
38
46972-S6F-E01 ClampTUBE (D12) 2U006652 - |
46972-S6F-E01 |
US $2.17 |
||
|
39
|
39
95801-080-250-8 BoltFLANGE, 8X25 |
95801-080-250-8 |
US $0.70 |
||
| replacement | |||||
|
39
|
39
95701-080-250-8 BoltFLANGE, 8X25 |
95701-080-250-8 |
from US $0.74 |
||
