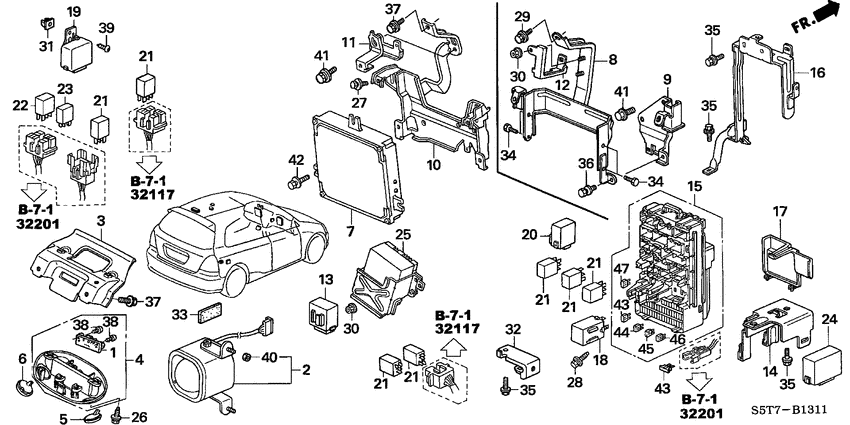

Control unit (CABIN; RH) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- 4EE2
- transmission
- 5MT
- Number of doors
- 3
- grade
- 1.7 SE
- area code
- KE
- right-hand drive
- +
- side srs
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
37111-S5S-E00 BracketULTRA SONIC SENSOR |
37111-S5S-E00 |
US $13.44 |
||
|
8
|
8
37821-PLZ-E00 Bracket comp. aELECTRONIC CONTROL UNIT (RH) |
37821-PLZ-E00 |
US $26.37 |
||
|
9
|
9
37822-PLZ-E00 Bracket comp. bELECTRONIC CONTROL UNIT (RH) |
37822-PLZ-E00 |
US $23.94 |
||
|
12
|
12
37828-PLZ-E00 BracketRELAY (RH) |
37828-PLZ-E00 |
US $5.88 |
||
|
13
|
13
38140-S3N-003 Control unitRR. WIPER |
38140-S3N-003 |
US $65.28 |
||
|
14
|
14
38141-S6A-E00 BracketUNIT |
38141-S6A-E00 |
US $15.23 |
||
|
15
|
15
38200-S6A-E03
Box assy
|
38200-S6A-E03 |
— | ||
|
16
|
16
38201-S5A-010 BracketFUSE BOX |
38201-S5A-010 |
US $17.02 |
||
|
17
|
17
38203-S5A-003 CoverFUSE BOX |
38203-S5A-003 |
US $9.94 |
||
|
18
|
18
38300-S5P-A01
Relay assy
|
38300-S5P-A01 |
— | ||
|
18
|
18
38300-S5T-004 Relay assyTURN SIGNAL & HAZARD (066500-5080) (DENSO) |
38300-S5T-004 |
US $46.97 |
||
|
18
|
18
38300-S5T-003 Relay assyTURN SIGNAL & HAZARD (FR-3321) (MITSUBA) |
38300-S5T-003 |
US $33.41 |
||
|
19
|
19
38380-S1A-E31
Relay box
|
38380-S1A-E31 |
— | ||
|
20
|
20
38385-S7A-G01 Receiver unitKEYLESS ENTRY |
38385-S7A-G01 |
US $183.04 |
||
|
21
|
21
39794-S04-014 Relay assyPOWER (4P) (MICRO ISO) (MATSUSHITA) |
39794-S04-014 |
US $23.49 |
||
|
21
|
21
39794-S84-A01 Relay assyPOWER (4P) (MICRO ISO) (TYCO) |
39794-S84-A01 |
US $26.11 |
||
|
21
|
21
39794-S04-003 Relay assyPOWER (4P) (MICRO ISO) (MITSUBA) |
39794-S04-003 |
US $15.23 |
||
|
21
|
21
39794-S1A-G01 Relay assyPOWER (4P) (MICRO ISO) (BOSCH) |
39794-S1A-G01 |
US $21.12 |
||
|
21
|
21
39794-S0K-A01
Relay assy
|
39794-S0K-A01 |
— | ||
| replacement | |||||
|
21
|
21
39794-S04-014 Relay assyPOWER (4P) (MICRO ISO) (MATSUSHITA) |
39794-S04-014 |
US $23.49 |
||
|
23
|
23
39794-S5A-901 Relay assyENGINE CONTROL MODULE(4P)(MITSUBA) |
39794-S5A-901 |
US $16.77 |
||
|
24
|
24
39880-S6A-E01 Security unit |
39880-S6A-E01 |
US $161.28 |
||
|
25
|
25
39980-S5V-E03 Eps unit |
39980-S5V-E03 |
US $421.12 |
||
|
28
|
28
90137-SF1-000 Bolt-washer6X25 |
90137-SF1-000 |
US $2.12 |
||
|
29
|
29
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
30
|
30
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
31
|
31
90662-SB2-003 GrommetSCREW, 5MM |
90662-SB2-003 |
US $1.85 |
||
|
34
|
34
92301-05008-0H BoltRECESSED, 5X8 |
92301-05008-0H |
US $0.44 |
||
|
35
|
35
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
36
|
36
93404-050-120-8 Bolt-washer5X12 |
93404-050-120-8 |
from US $0.52 |
||
|
37
|
37
93404-060-120-8 Bolt-washer6X12 |
93404-060-120-8 |
from US $0.56 |
||
| replacement | |||||
|
37
|
37
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
|
39
|
39
93903-45320 SCREW TAPPING |
93903-45320 |
US $0.37 |
||
|
41
|
41
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
43
|
43
98200-40750 FuseMINI (7.5A) |
98200-40750 |
from US $0.52 |
||
|
44
|
44
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.52 |
||
|
45
|
45
98200-41500 FuseMINI(15A) |
98200-41500 |
from US $0.52 |
||
|
46
|
46
98200-42000 FuseMINI (20A) |
98200-42000 |
from US $0.52 |
||
|
47
|
47
98200-43000 FuseMINI (30A) |
98200-43000 |
from US $0.74 |
||
