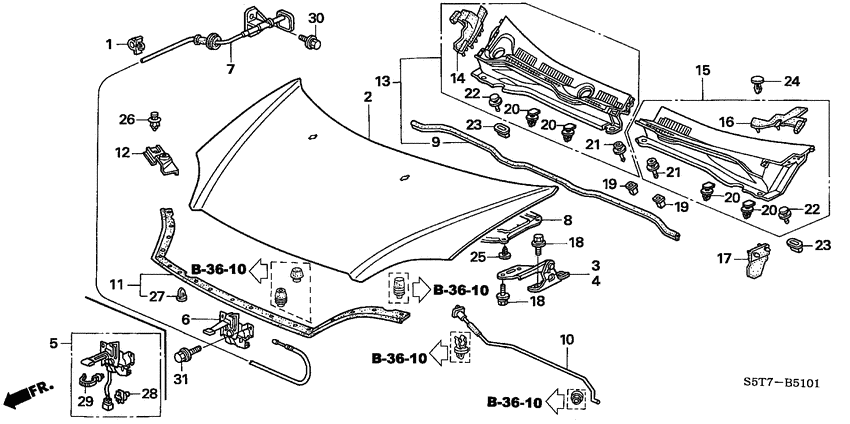

Hood (RH) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- 4EE2
- transmission
- 5MT
- Number of doors
- 3
- grade
- 1.7 SE
- area code
- KE
- right-hand drive
- +
- side srs
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17706-SC3-003 ClipFUEL PIPE |
17706-SC3-003 |
from US $2.59 |
||
|
2
|
2
60100-S6D-E00ZZ
Hood comp.
|
60100-S6D-E00ZZ |
— | ||
|
3
|
3
60120-S6A-000ZZ Hood Hinge, Rh |
60120-S6A-000ZZ |
US $30.97 |
||
|
4
|
4
60170-S6A-000ZZ Hood Hinge, Lh |
60170-S6A-000ZZ |
US $30.97 |
||
|
5
|
5
74120-S5T-G01
Lock assy
|
74120-S5T-G01 |
— | ||
|
7
|
7
74130-S6D-E00ZB
Wire assy.
|
74130-S6D-E00ZB |
— | ||
|
8
|
8
74141-S6A-E01
Insulator
|
74141-S6A-E01 |
— | ||
|
9
|
9
74144-S6A-000
Rubber
|
74144-S6A-000 |
— | ||
|
10
|
10
74145-S5T-G00
Stay
|
74145-S5T-G00 |
— | ||
|
11
|
11
74146-S6A-E01
Rubber
|
74146-S6A-E01 |
— | ||
|
13
|
13
74210-S5S-E01 COWL TOP ASSY., FRONT DRIVER SIDE |
74210-S5S-E01 |
US $104.96 |
||
|
14
|
14
74212-S5S-E00
COVER, BONNET HINGE DRIVER SIDE
|
74212-S5S-E00 |
— | ||
|
15
|
15
74220-S5S-E01
Cowl top assy.
|
74220-S5S-E01 |
— | ||
|
16
|
16
74222-S5S-E00
Cover
|
74222-S5S-E00 |
— | ||
|
17
|
17
74231-S6A-000
Valve
|
74231-S6A-000 |
— | ||
|
18
|
18
90108-S0A-003 BoltFLANGE, 6X15 |
90108-S0A-003 |
from US $1.41 |
||
|
19
|
19
90601-S30-003 GrommetCOWL TOP |
90601-S30-003 |
from US $1.55 |
||
|
20
|
20
90602-SJK-003 ClipCOWL TOP |
90602-SJK-003 |
US $1.82 |
||
|
21
|
21
90602-SX0-003 ClipCOWL TOP |
90602-SX0-003 |
from US $1.47 |
||
|
22
|
22
90602-S2A-003 ClipCOWL TOP |
90602-S2A-003 |
US $2.66 |
||
|
23
|
23
90603-S2A-003 GrommetCOWL TOP |
90603-S2A-003 |
US $2.07 |
||
|
24
|
24
91501-SL4-003 ClipFR. COWL |
91501-SL4-003 |
from US $1.39 |
||
|
25
|
25
91501-S1K-003 ClipENGINE HOOD INSULATOR |
91501-S1K-003 |
from US $3.11 |
||
|
27
|
27
91518-SM4-003 ClipTRUNK MOLDING |
91518-SM4-003 |
from US $1.76 |
||
|
28
|
28
91565-S0X-003 ClipCOUPLER (DARK GREEN) |
91565-S0X-003 |
from US $1.61 |
||
|
30
|
30
93401-060-160-8 Bolt-washer6X16 |
93401-060-160-8 |
from US $0.58 |
||
|
31
|
31
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
