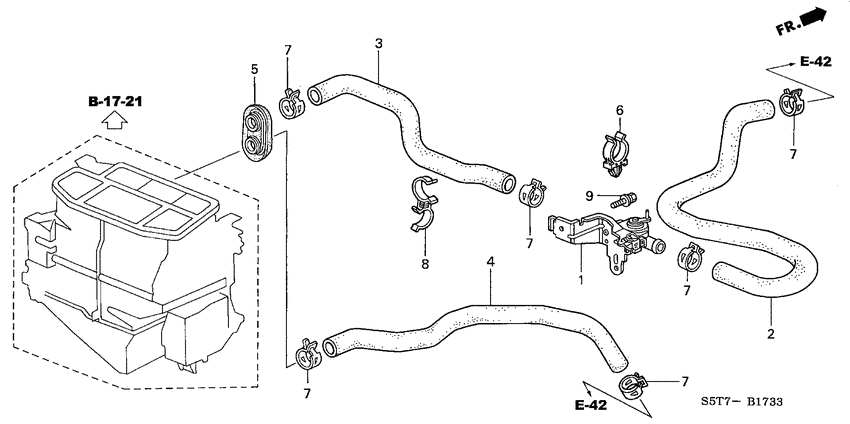

Water valve (RH; DIESEL) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- 4EE2
- transmission
- 5MT
- Number of doors
- 3
- grade
- 1.7 SE
- area code
- KE
- right-hand drive
- +
- side srs
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79710-S5A-003
Valve assy.
|
79710-S5A-003 |
— | ||
|
2
|
2
79721-S6F-E00
Hose a
|
79721-S6F-E00 |
— | ||
|
3
|
3
79722-S6F-E00
Hose b
|
79722-S6F-E00 |
— | ||
|
4
|
4
79725-S6F-E00
Hose
|
79725-S6F-E00 |
— | ||
|
5
|
5
79731-S5A-000 GrommetHEATER PIPE |
79731-S5A-000 |
US $4.62 |
||
|
6
|
6
79746-S6F-G01 ClampHEATER HOSE (BLACK) |
79746-S6F-G01 |
US $1.61 |
||
|
7
|
7
91405-PK1-003
Clip, WATER HOSE, 24MM
|
91405-PK1-003 |
— | ||
| replacement | |||||
|
7
|
7
19513-PE0-003 ClampWATER HOSE (21.7MM) (CHUO SPRING) |
19513-PE0-003 |
from US $2.75 |
||
|
8
|
8
91551-SD5-003 ClampHEATER |
91551-SD5-003 |
from US $1.82 |
||
|
9
|
9
93403-060-120-4 Bolt-washer6X12 |
93403-060-120-4 |
US $0.59 |
||
