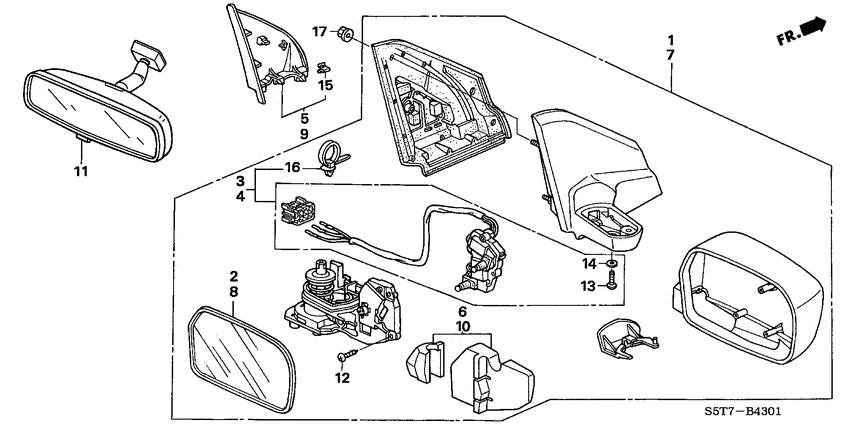

Mirror (2) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- 4EE2
- transmission
- 5MT
- Number of doors
- 3
- grade
- 1.7 LS
- area code
- KR
- left-hand drive
- +
- air conditioner (auto)
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76200-S5S-G61ZG
Mirror assy
|
76200-S5S-G61ZG |
— | ||
|
1
|
1
76200-S5S-G61ZA
Mirror assy
|
76200-S5S-G61ZA |
— | ||
|
1
|
1
76200-S5S-G61ZJ
Mirror assy
|
76200-S5S-G61ZJ |
— | ||
|
1
|
1
76200-S5S-G61ZC
Mirror assy
|
76200-S5S-G61ZC |
— | ||
|
1
|
1
76200-S5S-G61ZE
Mirror assy
|
76200-S5S-G61ZE |
— | ||
|
1
|
1
76200-S5S-G61ZH
Mirror assy
|
76200-S5S-G61ZH |
— | ||
|
1
|
1
76200-S5S-G61ZB
Mirror assy
|
76200-S5S-G61ZB |
— | ||
|
1
|
1
76200-S5S-G61ZK
Mirror assy
|
76200-S5S-G61ZK |
— | ||
|
1
|
1
76200-S5S-G61ZD
Mirror assy
|
76200-S5S-G61ZD |
— | ||
|
2
|
2
76203-S6D-G21
Mirror sub assy. R. (SR1400) (HEATED)
|
76203-S6D-G21 |
— | ||
|
3
|
3
76210-S6D-G21
Actuator comp.
|
76210-S6D-G21 |
— | ||
|
4
|
4
76215-S6D-G21
Actuator comp.
|
76215-S6D-G21 |
— | ||
|
5
|
5
76220-S5S-E11ZA
Garnish
|
76220-S5S-E11ZA |
— | ||
|
6
|
6
76240-S6D-E11
Sealing
|
76240-S6D-E11 |
— | ||
|
7
|
7
76250-S5S-G61ZE
Mirror assy
|
76250-S5S-G61ZE |
— | ||
|
7
|
7
76250-S5S-G61ZH
Mirror assy
|
76250-S5S-G61ZH |
— | ||
|
7
|
7
76250-S5S-G61ZB
Mirror assy
|
76250-S5S-G61ZB |
— | ||
|
7
|
7
76250-S5S-G61ZK
Mirror assy
|
76250-S5S-G61ZK |
— | ||
|
7
|
7
76250-S5S-G61ZD
Mirror assy
|
76250-S5S-G61ZD |
— | ||
|
7
|
7
76250-S5S-G61ZG
Mirror assy
|
76250-S5S-G61ZG |
— | ||
|
7
|
7
76250-S5S-G61ZA
Mirror assy
|
76250-S5S-G61ZA |
— | ||
|
7
|
7
76250-S5S-G61ZJ
Mirror assy
|
76250-S5S-G61ZJ |
— | ||
|
7
|
7
76250-S5S-G61ZC
Mirror assy
|
76250-S5S-G61ZC |
— | ||
|
8
|
8
76253-S6D-G21
Mirror sub assy. L. (SR1400) (HEATED)
|
76253-S6D-G21 |
— | ||
|
9
|
9
76270-S5S-E11ZA
Garnish
|
76270-S5S-E11ZA |
— | ||
|
10
|
10
76290-S6D-E11
Sealing
|
76290-S6D-E11 |
— | ||
|
11
|
11
76400-SEA-004 Mirror assyRR. VIEW (DAY/NIGHT) |
76400-SEA-004 |
US $101.76 |
||
|
12
|
12
90106-S5S-003 ScrewTAPPING, 3.5X12 |
90106-S5S-003 |
US $1.75 |
||
|
13
|
13
90107-S5S-003 ScrewTAPPING, 5X12 |
90107-S5S-003 |
US $1.75 |
||
|
14
|
14
90108-S5S-003
Washer
|
90108-S5S-003 |
— | ||
|
15
|
15
90615-SK7-003 ClipMIRROR GARNISH |
90615-SK7-003 |
US $2.22 |
||
|
16
|
16
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $2.59 |
||
|
17
|
17
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
