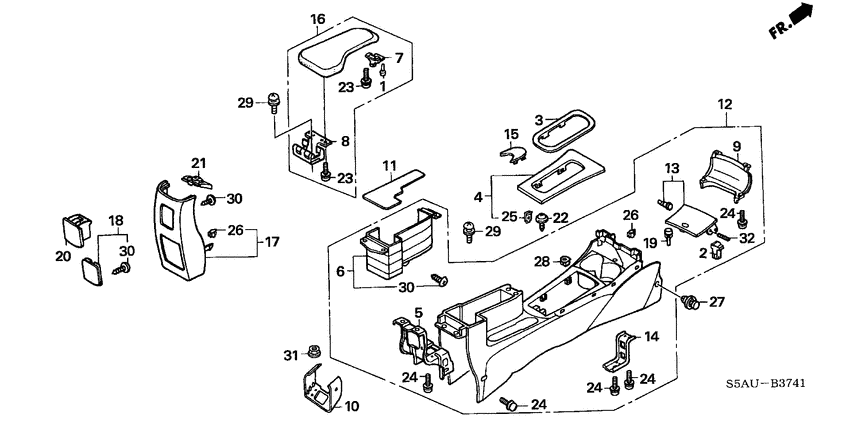

Console (2) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- D17A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VTI
- area code
- KH
- left-hand drive
- +
- sunroof
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66418-579-000 StopperGLOVE BOX LID |
66418-579-000 |
US $8.40 |
||
|
2
|
2
77235-S84-A01 LatchG-SENSOR |
77235-S84-A01 |
US $14.01 |
||
|
3
|
3
77294-S5A-L01ZC Garnish assyAT ESCUTCHEON *NH365L* |
77294-S5A-L01ZC |
US $13.72 |
||
|
4
|
4
77295-S5A-L01ZB Garnish assyCENTER CONSOLE *NH365L* |
77295-S5A-L01ZB |
US $42.50 |
||
|
5
|
5
83402-S5A-L01 BracketCENTER CONSOLE |
83402-S5A-L01 |
US $21.38 |
||
|
6
|
6
83404-S5A-L01ZD Box compCONSOLE *YR239L* |
83404-S5A-L01ZD |
US $42.24 |
||
|
7
|
7
83408-S5A-010ZB LockARMREST *YR239L* |
83408-S5A-010ZB |
US $5.04 |
||
|
8
|
8
83409-S5A-L01 Hinge compARMREST |
83409-S5A-L01 |
US $24.70 |
||
|
9
|
9
83410-S5A-L01 CoverCUP HOLDER |
83410-S5A-L01 |
US $9.10 |
||
|
10
|
10
83418-S5A-L10 Bracket comp.CENTER CONSOLE |
83418-S5A-L10 |
US $14.34 |
||
|
11
|
11
83419-S5A-L01 MatCONSOLE BOX |
83419-S5A-L01 |
US $12.93 |
||
|
12
|
12
83420-S5A-L01ZH Console setCENTER *YR239L 3* |
83420-S5A-L01ZH |
US $190.72 |
||
|
13
|
13
83421-S5A-L01ZB Lid setCUP HOLDER *NH365L* |
83421-S5A-L01ZB |
US $18.56 |
||
|
14
|
14
83422-S5A-L01 BracketCENTER CONSOLE CENTER |
83422-S5A-L01 |
US $8.82 |
||
|
15
|
15
83425-S5A-L01ZB GarnishBRAKE LEVER *YR239L* |
83425-S5A-L01ZB |
US $7.98 |
||
|
16
|
16
83450-S5A-L02ZD Armrest assyCONSOLE *YR239L* |
83450-S5A-L02ZD |
US $177.92 |
||
|
17
|
17
83460-S5A-L31ZB Cover comp.CENTER CONSOLE RR. *YR239L* |
83460-S5A-L31ZB |
US $9.52 |
||
|
18
|
18
83461-S5A-L31ZB Lid compRR. COVER *YR239L* |
83461-S5A-L31ZB |
US $5.32 |
||
|
19
|
19
83499-S5A-000
Stopper
|
83499-S5A-000 |
— | ||
|
20
|
20
88320-S04-000ZK
Ashtray assy.
|
88320-S04-000ZK |
— | ||
|
21
|
21
88324-SB3-950 CoverRR. ASHTRAY |
88324-SB3-950 |
US $4.06 |
||
|
22
|
22
90137-SH3-000 ScrewTAPPING, 4X16 |
90137-SH3-000 |
from US $1.70 |
||
|
23
|
23
90144-SP0-000 ScrewTAPPING, 4X16 (PO) |
90144-SP0-000 |
US $0.98 |
||
|
24
|
24
90146-SP0-000 ScrewTAPPING, 4X12 (PO) |
90146-SP0-000 |
US $0.98 |
||
|
25
|
25
90666-SDA-A01 ClipSNAP FITTING(PO) (NATURAL) |
90666-SDA-A01 |
from US $2.70 |
||
|
26
|
26
90666-S84-A01 ClipSNAP FITTING |
90666-S84-A01 |
from US $0.88 |
||
|
27
|
27
91550-S50-000ZS ClipTAILGATE *YR239L* |
91550-S50-000ZS |
US $1.47 |
||
|
28
|
28
91640-SM4-003 GrommetSCREW, 4MM |
91640-SM4-003 |
US $1.95 |
||
|
29
|
29
93894-050-160-7 Screw-washer5X16 |
93894-050-160-7 |
from US $0.44 |
||
|
30
|
30
93913-24280 ScrewTAPPING, 4X12(PO) |
93913-24280 |
from US $0.37 |
||
|
31
|
31
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
32
|
32
94305-30142 PinSPRING, 3X14 |
94305-30142 |
from US $0.74 |
