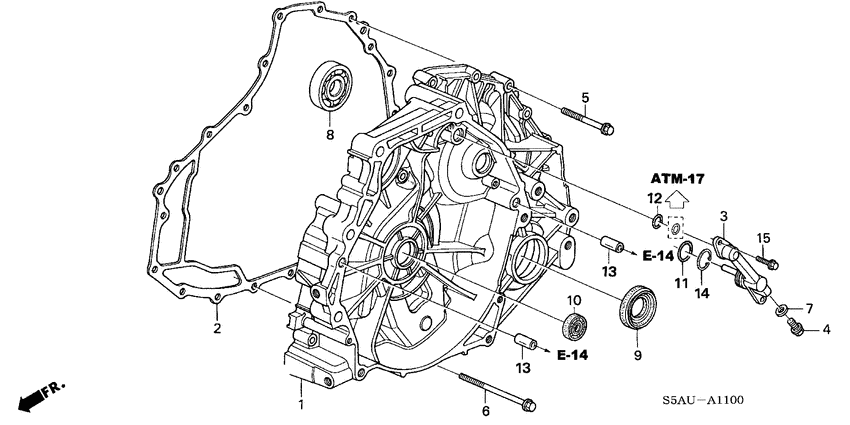

Flywheel case (CVT) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- D17A
- transmission
- CVT
- Number of doors
- 4
- grade
- VTI-SD
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21100-PLY-000 CaseFLYWHEEL |
21100-PLY-000 |
US $852.48 |
||
|
2
|
2
21811-PLY-000 PackingFLYWHEEL CASE |
21811-PLY-000 |
US $27.01 |
||
|
3
|
3
22740-P4V-000 Holder compOIL PASS PIPE |
22740-P4V-000 |
US $26.88 |
||
|
4
|
4
90004-PE2-005 BoltSEALING, 10MM |
90004-PE2-005 |
from US $2.22 |
||
|
5
|
5
90004-PWR-000 BoltFLANGE, 8X45 |
90004-PWR-000 |
US $1.96 |
||
|
6
|
6
90016-PF0-000 BoltFLANGE, 8X70 |
90016-PF0-000 |
US $2.94 |
||
|
7
|
7
90401-PE2-003 WasherSEALING, 10MM |
90401-PE2-003 |
from US $2.15 |
||
|
8
|
8
91002-P4V-003 BearingBALL (6305) |
91002-P4V-003 |
US $17.95 |
||
|
9
|
9
91205-PL3-A02
Oil seal
|
91205-PL3-A02 |
— | ||
| replacement | |||||
|
9
|
9
91205-PL3-A01 Oil seal35X56X8 (ARAI) |
91205-PL3-A01 |
from US $8.95 |
||
|
9
|
9
91205-PL3-A01 Oil seal35X56X8 (ARAI) |
91205-PL3-A01 |
from US $8.95 |
||
|
10
|
10
91207-P4V-004 Oil seal19X35X7 (ARAI) |
91207-P4V-004 |
from US $4.88 |
||
|
11
|
11
91326-P4V-004 O-ring26.7X1.9 (ARAI) |
91326-P4V-004 |
US $1.47 |
||
|
12
|
12
91345-680-900 O-ring15.8X1.9 |
91345-680-900 |
from US $2.17 |
||
|
13
|
13
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
|
14
|
14
94520-19000 CirclipINTERNAL, 19MM |
94520-19000 |
from US $0.52 |
||
|
15
|
15
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
