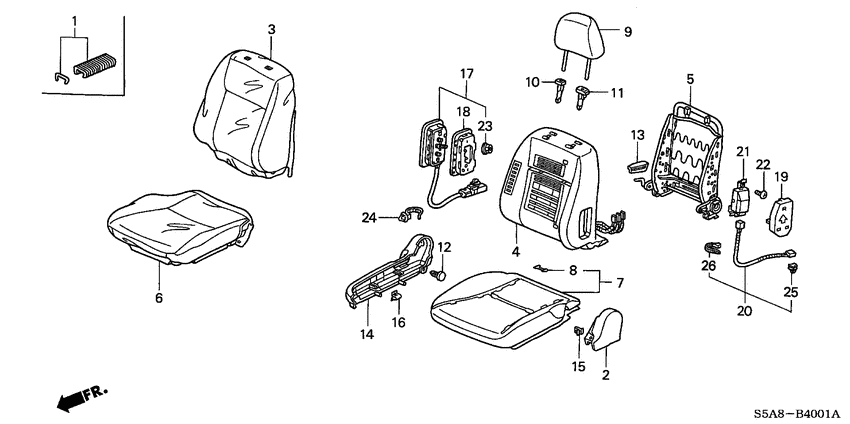

Front seat (LH; PASSENGER SIDE) Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC
- Sales region
- General
- Engine
- D17A
- transmission
- 4AT
- Number of doors
- 4
- grade
- VTI
- abs
- +
- area code
- KH
- left-hand drive
- +
- sunroof
- +
- side srs
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04810-SB3-R00 C clip setTRIM FASTENER (100 PIECES) |
04810-SB3-R00 |
US $13.30 |
||
|
1
|
1
04810-SB3-000 C clip setTRIM FASTENER (30 PIECES) |
04810-SB3-000 |
from US $4.74 |
||
|
2
|
2
81115-S5A-J11ZE CoverR. CENTER *YR239L* |
81115-S5A-J11ZE |
US $8.54 |
||
|
3
|
3
81121-S5A-A63ZC
Cover
|
81121-S5A-A63ZC |
— | ||
|
4
|
4
81122-S5A-A31 Pad assyR. FR. SEATBACK (WITH OPDS SENSOR) |
81122-S5A-A31 |
US $364.80 |
||
|
5
|
5
81126-S5A-N31
Frame comp
|
81126-S5A-N31 |
— | ||
|
6
|
6
81131-S5A-A13ZC CoverR. FR. SEAT CUSHION TRIM *YR239L* |
81131-S5A-A13ZC |
US $229.12 |
||
|
7
|
7
81132-S5A-N13 Pad assyR. FR. SEAT CUSHION |
81132-S5A-N13 |
US $118.40 |
||
|
8
|
8
81138-S5A-G21 ClipH |
81138-S5A-G21 |
US $0.91 |
||
|
9
|
9
81140-S5A-A12ZD Headrest assyFR. SEAT *YR239L* |
81140-S5A-A12ZD |
US $133.12 |
||
|
10
|
10
81143-SM4-J01A6 Guide compHEADREST FREE *YR239L* |
81143-SM4-J01A6 |
US $6.02 |
||
|
11
|
11
81144-S0A-J01YA Guide compHEADREST LOCK *YR239L* |
81144-S0A-J01YA |
US $7.42 |
||
|
12
|
12
81189-S10-J11ZS Clip *yr239l* |
81189-S10-J11ZS |
US $1.82 |
||
|
13
|
13
81231-S5A-013ZK KnobR. RECLINING *YR239L* |
81231-S5A-013ZK |
US $5.04 |
||
|
14
|
14
81238-S5A-J01ZJ CoverR. RECLINING *YR239L* |
81238-S5A-J01ZJ |
US $13.72 |
||
|
15
|
15
90610-SR3-003 ClipGARNISH (KATO) |
90610-SR3-003 |
US $1.72 |
||
|
16
|
16
90610-S10-003 ClipGARNISH |
90610-S10-003 |
US $1.61 |
||
|
17
|
17
06783-S5S-G80ZC
Module kit
|
06783-S5S-G80ZC |
— | ||
|
18
|
18
81128-S5A-J01 HolderR. MODULE |
81128-S5A-J01 |
US $16.13 |
||
|
19
|
19
81129-S5A-J01 CoverR. FR. SEATBACK OPDS |
81129-S5A-J01 |
US $5.74 |
||
|
20
|
20
81312-S5A-000 CordOPDS |
81312-S5A-000 |
US $18.69 |
||
|
21
|
21
81334-S5A-J04 Opds unit4S200358 - |
81334-S5A-J04 |
US $526.08 |
||
|
21
|
21
81334-S5A-J03
Opds unit
00000000 - 4S200357 |
81334-S5A-J03 |
— | ||
|
22
|
22
90160-S5A-003 ScrewTRUSS, 6X12 |
90160-S5A-003 |
US $1.19 |
||
|
23
|
23
90321-SP0-A80 Nut-washer6MM |
90321-SP0-A80 |
from US $1.26 |
||
|
24
|
24
90656-PB1-003 BandOIL HOSE |
90656-PB1-003 |
US $2.10 |
||
|
25
|
25
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.47 |
||
|
26
|
26
91540-S0A-003 ClipHARNESS BAND(NATURAL) (96.9MM) |
91540-S0A-003 |
from US $2.29 |
