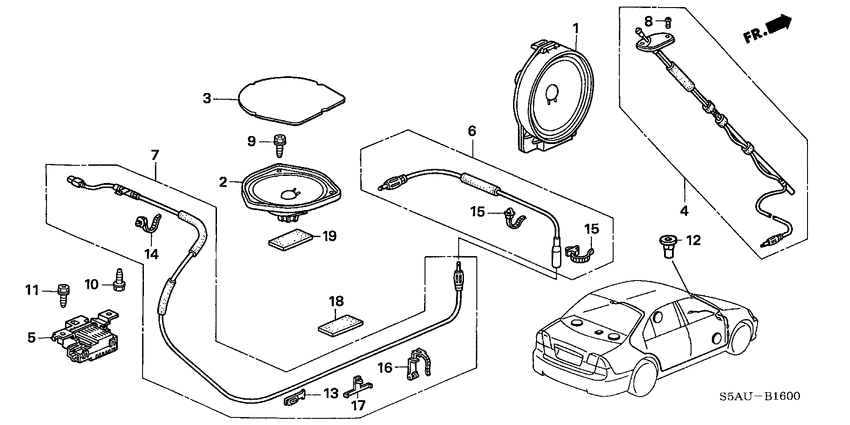

Antenna/speaker Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16W
- transmission
- 4AT
- Number of doors
- 4
- grade
- VTI-DS
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39120-SAA-003
Speaker assy
|
39120-SAA-003 |
— | ||
|
2
|
2
39120-S5A-963
Speaker assy
|
39120-S5A-963 |
— | ||
|
5
|
5
39155-S5A-003 Coil assyGLASS ANTENNA |
39155-S5A-003 |
US $92.80 |
||
|
6
|
6
39156-S5A-000
Sub feeder
|
39156-S5A-000 |
— | ||
|
7
|
7
39160-S5A-J00 Feeder assy.GLASS ANTENNA |
39160-S5A-J00 |
US $58.11 |
||
|
9
|
9
90131-S30-003 Screw-washerET, 6X16 |
90131-S30-003 |
US $1.19 |
||
|
10
|
10
90131-S30-003 Screw-washerET, 6X16 |
90131-S30-003 |
US $1.19 |
||
|
10
|
10
90133-SZ4-003 ScrewET, 7X16 |
90133-SZ4-003 |
US $1.79 |
||
|
11
|
11
90131-S30-003 Screw-washerET, 6X16 |
90131-S30-003 |
US $1.19 |
||
|
11
|
11
93401-080-160-8 Bolt-washer8X16 |
93401-080-160-8 |
from US $0.67 |
||
|
13
|
13
91531-S04-003 ClipWIRE HARNESS(NATURAL) (44MM) |
91531-S04-003 |
US $1.33 |
||
|
14
|
14
91540-S0A-003 ClipHARNESS BAND(NATURAL) (96.9MM) |
91540-S0A-003 |
from US $2.29 |
||
|
15
|
15
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $2.59 |
||
|
16
|
16
91559-ST5-003 ClipHARNESS BAND OFFSET(30) (NATURAL) |
91559-ST5-003 |
US $1.96 |
||
|
17
|
17
91572-SP1-300 ClipWIRE HARNESS (BLACK) |
91572-SP1-300 |
US $1.82 |
||
|
18
|
18
91902-SB2-003 CushionWIRE HARNESS(50X100) |
91902-SB2-003 |
from US $2.96 |
