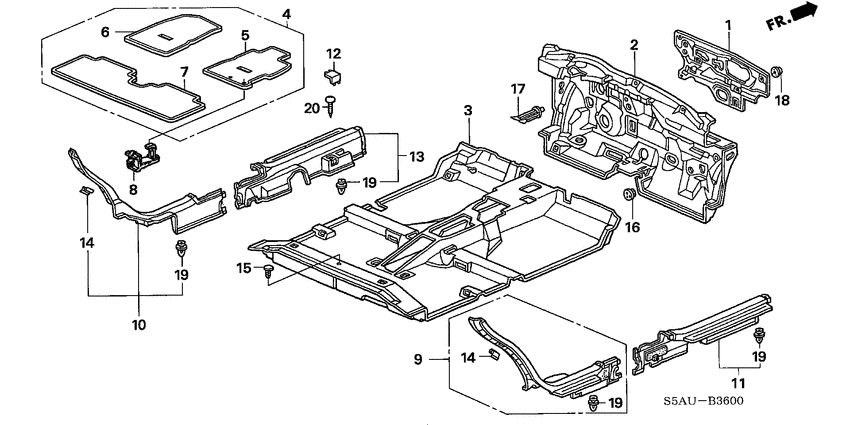

Floor mat Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16W
- transmission
- 4AT
- Number of doors
- 4
- grade
- VTI-DS
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74251-S5A-J00 InsulatorDASHBOARD LOWER OUTER |
74251-S5A-J00 |
US $36.74 |
||
|
2
|
2
74260-S5A-000 InsulatorDASHBOARD |
74260-S5A-000 |
US $200.96 |
||
|
3
|
3
83301-S5A-942ZC CarpetFLOOR *YR239L* |
83301-S5A-942ZC |
US $609.28 |
||
|
9
|
9
84141-S5A-J00ZD Garnish assyR. SEAT SIDE *YR239L* |
84141-S5A-J00ZD |
US $30.72 |
||
|
10
|
10
84191-S5A-J00ZD Garnish assyL. SEAT SIDE *YR239L* |
84191-S5A-J00ZD |
US $30.72 |
||
|
11
|
11
84201-S5A-J10ZE Garnish assyR. FR. SIDE *YR239L* |
84201-S5A-J10ZE |
US $33.15 |
||
|
12
|
12
84202-S5A-000ZF CapFR. SIDE *YR239L* |
84202-S5A-000ZF |
US $2.80 |
||
|
13
|
13
84251-S5A-J10ZE Garnish assyL. FR. SIDE *YR239L* |
84251-S5A-J10ZE |
US $33.15 |
||
|
14
|
14
90667-ST8-003
Clip
|
90667-ST8-003 |
— | ||
|
15
|
15
90667-S0D-003ZH CLIP, TRIM, 7MM *NH167L* |
90667-S0D-003ZH |
from US $1.63 |
||
|
16
|
16
90676-SB2-003 ClipDASHBOARD INSULATOR |
90676-SB2-003 |
US $2.07 |
||
|
17
|
17
90676-S5A-003 ClipDASHBOARD INSULATOR |
90676-S5A-003 |
US $3.36 |
||
|
18
|
18
91517-SE0-003 ClipLOWER OUTER DASHBOARD INSULATOR |
91517-SE0-003 |
US $2.37 |
||
|
19
|
19
91560-S04-003 ClipSIDE GARNISH (NATURAL) |
91560-S04-003 |
from US $1.63 |
||
|
20
|
20
93903-24320 ScrewTAPPING, 4X12 |
93903-24320 |
from US $0.13 |
