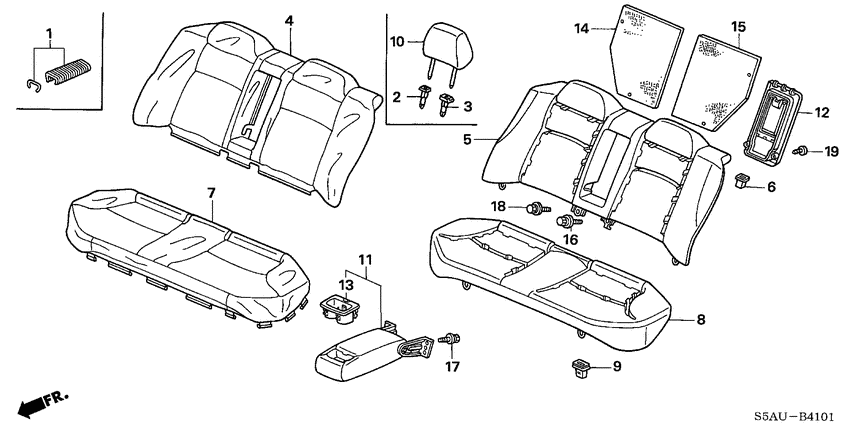

Rear seat (2) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16W
- transmission
- 4AT
- Number of doors
- 4
- grade
- VTI-LDS
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04810-SB3-R00 C clip setTRIM FASTENER (100 PIECES) |
04810-SB3-R00 |
US $13.30 |
||
|
1
|
1
04810-SB3-000 C clip setTRIM FASTENER (30 PIECES) |
04810-SB3-000 |
from US $4.74 |
||
|
4
|
4
82121-S5A-H02ZD CoverRR. SEATBACK TRIM *YR239L* |
82121-S5A-H02ZD |
US $363.52 |
||
|
5
|
5
82122-S5A-N21 Pad & frame comp.RR. SEATBACK |
82122-S5A-N21 |
US $433.92 |
||
|
6
|
6
82127-SM4-J01 CollarRR. SEATBACK SETTING (A) (TS TECH) |
82127-SM4-J01 |
US $3.29 |
||
|
7
|
7
82131-S5A-A31ZC CoverRR. SEAT CUSHION TRIM *YR239L* |
82131-S5A-A31ZC |
US $363.52 |
||
|
8
|
8
82132-S5A-N01 Pad & frame comp.RR. SEAT CUSHION |
82132-S5A-N01 |
US $433.92 |
||
|
9
|
9
82137-S5A-003 ClipRR. SEAT CUSHION |
82137-S5A-003 |
US $3.64 |
||
|
11
|
11
82180-S5A-H02ZD Armrest assyRR. SEAT *YR239L* |
82180-S5A-H02ZD |
US $154.88 |
||
|
12
|
12
82186-SW3-J11ZB Lid assyRR. ARMREST *NH120L* |
82186-SW3-J11ZB |
US $84.48 |
||
|
13
|
13
82187-S04-J21ZJ
Cup holder
|
82187-S04-J21ZJ |
— | ||
|
14
|
14
82325-S5A-J11ZB
Cover
|
82325-S5A-J11ZB |
— | ||
|
15
|
15
82725-S5A-J11ZB CoverL. RR. BULKHEAD *NH167L* |
82725-S5A-J11ZB |
US $13.02 |
||
|
16
|
16
90128-SA7-000 Bolt-washer6X25 |
90128-SA7-000 |
US $3.58 |
||
|
17
|
17
93402-060-160-8 Bolt-washer6X16 |
93402-060-160-8 |
from US $0.52 |
||
|
18
|
18
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
19
|
19
93901-15280 ScrewTAPPING, 5X12 |
93901-15280 |
US $0.37 |
