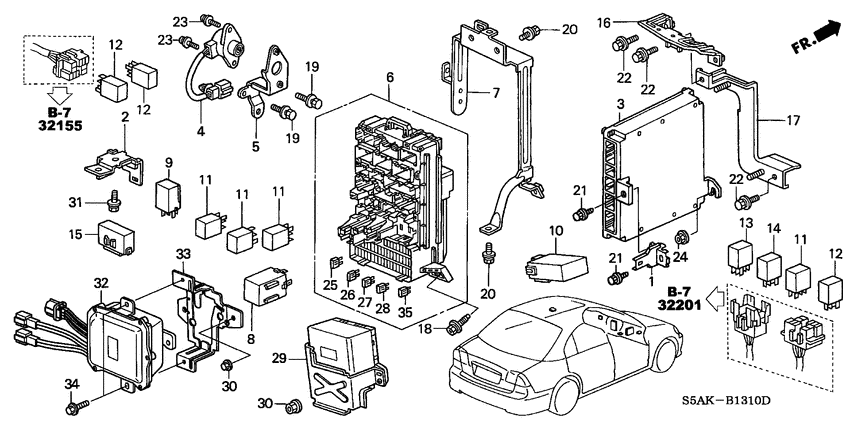

Control unit (CABIN; LH) Diagram Honda CIVIC
- Year
- 2001
- Model code
- CIVIC
- Sales region
- General
- Engine
- PSJD55
- transmission
- 4AT
- Number of doors
- 4
- grade
- VTI
- area code
- PH
- left-hand drive
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32752-PLM-A00
Stay m
|
32752-PLM-A00 |
— | ||
|
2
|
2
36701-S5A-A00 BracketAUTO CRUISE & SECURITY |
36701-S5A-A00 |
US $6.16 |
||
|
3
|
3
37820-PLL-Y52
Control module
|
37820-PLL-Y52 |
— | ||
|
4
|
4
37860-PT5-F01 Sensor assyIMA (EWT-E5BS03Q53) |
37860-PT5-F01 |
US $111.36 |
||
|
5
|
5
37865-PLC-Y00
Stay
|
37865-PLC-Y00 |
— | ||
|
6
|
6
38200-S5A-M12 Box assyFUSE |
38200-S5A-M12 |
US $350.72 |
||
|
7
|
7
38201-S5A-A00 BracketFUSE BOX |
38201-S5A-A00 |
US $17.79 |
||
|
8
|
8
38300-S5A-003 Relay assyTURN SIGNAL & HAZARD (MITSUBA) |
38300-S5A-003 |
US $43.90 |
||
|
10
|
10
38385-S5A-G01 Receiver unitKEYLESS ENTRY |
38385-S5A-G01 |
US $183.04 |
||
|
11
|
11
39794-S04-004
Relay assy
|
39794-S04-004 |
— | ||
|
11
|
11
39794-S04-003 Relay assyPOWER (4P) (MICRO ISO) (MITSUBA) |
39794-S04-003 |
US $15.23 |
||
|
12
|
12
39794-S10-003 Relay assyPOWER(5P) (MICRO ISO)(MITSUBA) |
39794-S10-003 |
US $19.45 |
||
|
13
|
13
39794-S5A-003 Relay assyFUEL PUMP(5P) (MITSUBA) |
39794-S5A-003 |
US $16.77 |
||
|
14
|
14
39794-S5A-901 Relay assyENGINE CONTROL MODULE(4P)(MITSUBA) |
39794-S5A-901 |
US $16.77 |
||
|
15
|
15
39880-S5A-H01 Security unit |
39880-S5A-H01 |
US $185.60 |
||
|
16
|
16
79101-S5D-A01 BracketHEATER |
79101-S5D-A01 |
US $4.20 |
||
|
17
|
17
79820-S5A-A00 BracketENGINE CONTROL MODULE |
79820-S5A-A00 |
US $7.70 |
||
|
18
|
18
90137-SF1-000 Bolt-washer6X25 |
90137-SF1-000 |
US $2.12 |
||
|
19
|
19
93401-050-100-8 Bolt-washer5X10 |
93401-050-100-8 |
US $0.52 |
||
|
20
|
20
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
21
|
21
93404-060-160-8 Bolt-washer6X16 |
93404-060-160-8 |
from US $0.52 |
||
|
22
|
22
93405-060-200-8 Bolt-washer6X20 |
93405-060-200-8 |
from US $0.59 |
||
|
23
|
23
93893-040-121-8 Screw-washer4X12 |
93893-040-121-8 |
from US $0.52 |
||
| replacement | |||||
|
23
|
23
93893-040-120-8 Screw-washer4X12 |
93893-040-120-8 |
from US $0.58 |
||
|
24
|
24
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
25
|
25
98200-40750 FuseMINI (7.5A) |
98200-40750 |
from US $0.52 |
||
|
26
|
26
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.52 |
||
|
27
|
27
98200-41500 FuseMINI(15A) |
98200-41500 |
from US $0.52 |
||
|
28
|
28
98200-42000 FuseMINI (20A) |
98200-42000 |
from US $0.52 |
||
|
31
|
31
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
