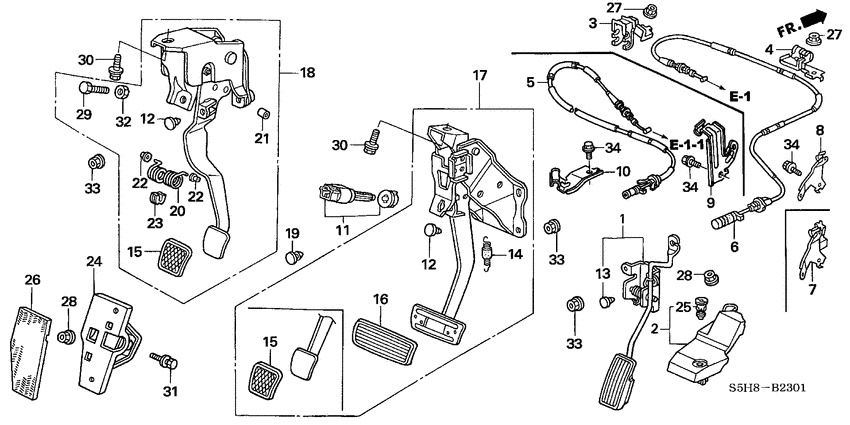

Pedal (RH) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16W
- transmission
- 4AT
- Number of doors
- 4
- grade
- VTI
- area code
- PA
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17800-S5A-003 Pedal assyACCELERATOR |
17800-S5A-003 |
US $44.42 |
||
|
2
|
2
17818-S5A-003
Stopper
|
17818-S5A-003 |
— | ||
|
3
|
3
17881-PLM-A00
Stay a
|
17881-PLM-A00 |
— | ||
|
4
|
4
17882-PLM-A00
Stay b
|
17882-PLM-A00 |
— | ||
|
6
|
6
17910-S5H-T01
Wire
|
17910-S5H-T01 |
— | ||
|
8
|
8
17930-S5A-980 ClampTHROTTLE WIRE |
17930-S5A-980 |
US $5.60 |
||
|
11
|
11
35350-S5A-J01
Switch assy
|
35350-S5A-J01 |
— | ||
|
12
|
12
46505-SA5-000 PadPEDAL STOPPER |
46505-SA5-000 |
from US $2.38 |
||
|
13
|
13
46505-SA7-000 PadPEDAL STOPPER |
46505-SA7-000 |
US $3.92 |
||
|
14
|
14
46530-S5A-003
Spring assy
|
46530-S5A-003 |
— | ||
|
16
|
16
46545-S84-A81 CoverPEDAL |
46545-S84-A81 |
from US $5.21 |
||
|
17
|
17
46600-S5A-E81 Pedal assyBRAKE |
46600-S5A-E81 |
US $74.24 |
||
|
24
|
24
46991-S5A-000 Bracket comp.FOOTREST |
46991-S5A-000 |
US $16.13 |
||
|
25
|
25
46992-SV4-003 ClipFOOTREST |
46992-SV4-003 |
US $1.70 |
||
|
26
|
26
46992-S5H-000
Plate
|
46992-S5H-000 |
— | ||
|
27
|
27
90207-PG6-000 NutCAP, 6MM (BLACK) |
90207-PG6-000 |
US $2.94 |
||
|
28
|
28
90301-SP0-003 NutPAINT CUTTING, 6MM |
90301-SP0-003 |
US $2.59 |
||
|
30
|
30
93404-080-160-8 Bolt-washer8X16 |
93404-080-160-8 |
from US $0.67 |
||
|
31
|
31
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
33
|
33
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
34
|
34
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
