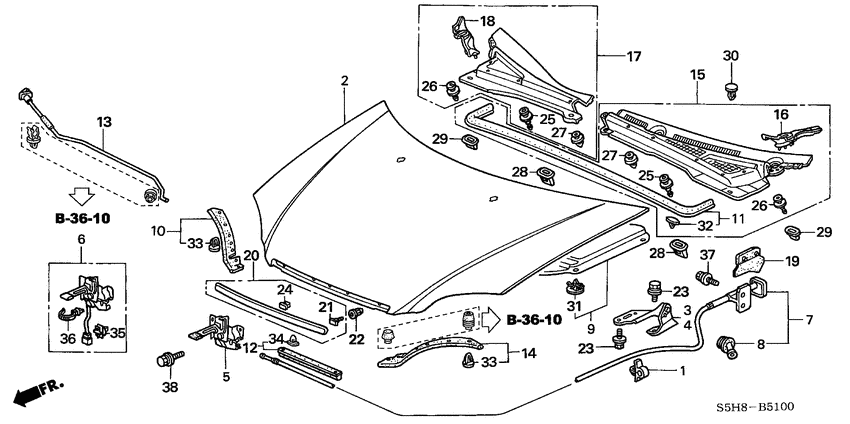

Hood (LH) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- D14Z
- transmission
- 4AT
- Number of doors
- 4
- grade
- 1.4 S
- area code
- TR
- left-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90654-SA4-003 ClipWIRE HARNESS, 6MM (WHITE) |
90654-SA4-003 |
from US $0.34 |
||
|
2
|
2
60100-S5A-J00ZZ
Hood comp.
|
60100-S5A-J00ZZ |
— | ||
|
3
|
3
60120-S5A-000ZZ Hinge compR. HOOD |
60120-S5A-000ZZ |
US $119.50 |
||
|
4
|
4
60170-S5A-000ZZ Hinge compL. HOOD |
60170-S5A-000ZZ |
US $141.57 |
||
|
5
|
5
74120-S5A-A21 Lock assyHOOD |
74120-S5A-A21 |
US $34.18 |
||
|
7
|
7
74130-S5A-A01ZA
Wire assy.
|
74130-S5A-A01ZA |
— | ||
|
8
|
8
74134-SH3-003 GrommetHOOD WIRE |
74134-SH3-003 |
US $2.25 |
||
|
10
|
10
74142-S5A-J00 RubberR. HOOD SEAL |
74142-S5A-J00 |
US $17.27 |
||
|
11
|
11
74143-S5A-000
Rubber
|
74143-S5A-000 |
— | ||
|
12
|
12
74144-S5A-000
Sub seal
|
74144-S5A-000 |
— | ||
|
13
|
13
74145-S5A-000
Stay
|
74145-S5A-000 |
— | ||
|
14
|
14
74192-S5A-J00 RubberL. HOOD SEAL |
74192-S5A-J00 |
US $17.27 |
||
|
15
|
15
74210-S5A-A00
Cowl top assy.
|
74210-S5A-A00 |
— | ||
|
16
|
16
74212-S5A-A00
Cover
|
74212-S5A-A00 |
— | ||
|
17
|
17
74220-S5A-A00
Cowl top assy.
|
74220-S5A-A00 |
— | ||
|
18
|
18
74222-S5A-A00
Cover
|
74222-S5A-A00 |
— | ||
|
19
|
19
74231-S5A-000
Valve
|
74231-S5A-000 |
— | ||
|
20
|
20
75120-S5A-013 Molding assy.HOOD |
75120-S5A-013 |
US $88.96 |
||
|
21
|
21
75126-S5A-003 BoltSPECIAL |
75126-S5A-003 |
US $2.10 |
||
|
22
|
22
75307-SN7-000 NutSIDE PROTECTOR |
75307-SN7-000 |
US $2.73 |
||
|
23
|
23
90108-S0A-003 BoltFLANGE, 6X15 |
90108-S0A-003 |
from US $1.41 |
||
|
24
|
24
90157-S3N-003 ClipHOOD MOLDING |
90157-S3N-003 |
US $1.47 |
||
|
25
|
25
90602-SX0-003 ClipCOWL TOP |
90602-SX0-003 |
from US $1.47 |
||
|
26
|
26
90602-S2A-003 ClipCOWL TOP |
90602-S2A-003 |
US $2.66 |
||
|
27
|
27
90602-S5A-003 ClipCOWL TOP |
90602-S5A-003 |
US $1.61 |
||
|
28
|
28
90603-SX0-003 GrommetCOWL TOP |
90603-SX0-003 |
US $1.78 |
||
|
29
|
29
90603-S2A-003 GrommetCOWL TOP |
90603-S2A-003 |
US $2.07 |
||
|
30
|
30
91501-SL4-003 ClipFR. COWL |
91501-SL4-003 |
from US $1.39 |
||
|
32
|
32
91502-S84-A11 ClipSEAL RUBBER (BLACK) |
91502-S84-A11 |
US $1.33 |
||
|
33
|
33
91518-SM4-003 ClipTRUNK MOLDING |
91518-SM4-003 |
from US $1.76 |
||
|
34
|
34
91530-ST5-003 Clip ADOOR WEATHERSTRIP |
91530-ST5-003 |
US $1.26 |
||
|
37
|
37
93401-060-160-8 Bolt-washer6X16 |
93401-060-160-8 |
from US $0.58 |
||
|
38
|
38
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
