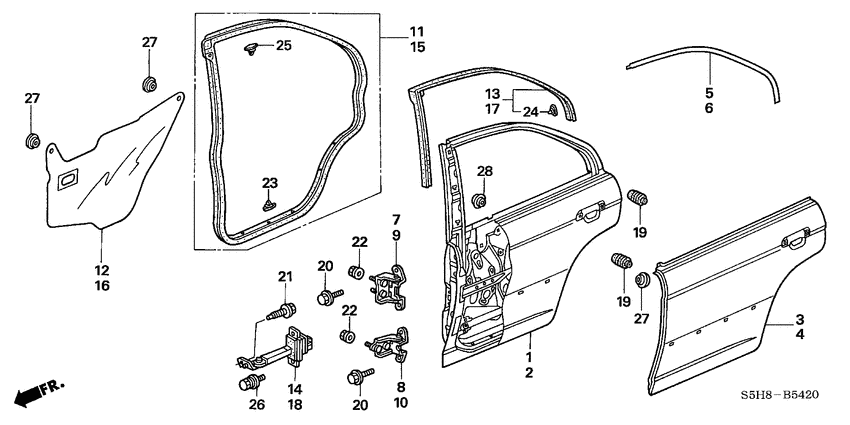

Rear door panels Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- D14Z
- transmission
- 4AT
- Number of doors
- 4
- grade
- 1.4 S
- area code
- TR
- left-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67510-S5A-E01ZZ Panel compR. RR. DOOR |
67510-S5A-E01ZZ |
US $709.12 |
||
|
2
|
2
67550-S5A-E01ZZ Panel compL. RR. DOOR |
67550-S5A-E01ZZ |
US $709.12 |
||
|
3
|
3
67611-S5A-305ZZ
Skin set
|
67611-S5A-305ZZ |
— | ||
|
4
|
4
67651-S5A-305ZZ
Skin set
|
67651-S5A-305ZZ |
— | ||
|
5
|
5
67826-S5A-003
Tape
|
67826-S5A-003 |
— | ||
|
6
|
6
67866-S5A-003
Tape
|
67866-S5A-003 |
— | ||
|
7
|
7
67910-S5D-A01ZZ HingeR. RR. DOOR UPPER |
67910-S5D-A01ZZ |
US $36.61 |
||
|
8
|
8
67920-S5D-A01ZZ HingeR. RR. DOOR LOWER |
67920-S5D-A01ZZ |
US $36.61 |
||
|
9
|
9
67950-S5D-A01ZZ HingeL. RR. DOOR UPPER |
67950-S5D-A01ZZ |
US $36.61 |
||
|
10
|
10
67960-S5D-A01ZZ HingeL. RR. DOOR LOWER |
67960-S5D-A01ZZ |
US $36.61 |
||
|
11
|
11
72810-S5A-003
Weatherstrip
|
72810-S5A-003 |
— | ||
|
12
|
12
72821-S5A-000 SealR. RR. DOOR HOLE |
72821-S5A-000 |
US $14 |
||
|
13
|
13
72825-S5A-003
Sub seal
|
72825-S5A-003 |
— | ||
|
14
|
14
72840-S5D-A01 Checker comp.R. RR. DOOR |
72840-S5D-A01 |
US $40.58 |
||
|
15
|
15
72850-S5A-003
Weatherstrip
|
72850-S5A-003 |
— | ||
|
16
|
16
72861-S5A-000 SealL. RR. DOOR HOLE |
72861-S5A-000 |
US $14 |
||
|
17
|
17
72865-S5A-003
Sub seal
|
72865-S5A-003 |
— | ||
|
18
|
18
72880-S5D-A01 Checker comp.L. RR. DOOR |
72880-S5D-A01 |
US $40.58 |
||
|
19
|
19
75891-SA7-000 StopperDOOR |
75891-SA7-000 |
US $1.70 |
||
|
20
|
20
90102-S3N-003 BoltFLANGE, 8X24.5 (10.5MM) |
90102-S3N-003 |
US $1.61 |
||
|
20
|
20
90102-SFA-305 BoltFLANGE, 8X18 (SERVICE) |
90102-SFA-305 |
US $1.61 |
||
|
21
|
21
90141-S04-000 BoltFLANGE, 8X22 |
90141-S04-000 |
US $1.75 |
||
|
22
|
22
90361-SR3-000 NutFLANGE, 8MM |
90361-SR3-000 |
from US $0.99 |
||
|
23
|
23
90651-S4N-003 Clip |
90651-S4N-003 |
US $1.26 |
||
|
24
|
24
91530-S0A-003 ClipSUB SEAL |
91530-S0A-003 |
US $1.47 |
||
|
25
|
25
91568-SR2-003
Clip
|
91568-SR2-003 |
— | ||
| replacement | |||||
|
25
|
25
91530-SP1-003 Clip ADOOR WEATHERSTRIP |
91530-SP1-003 |
US $1.72 |
||
|
26
|
26
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
27
|
27
95550-12000 PlugBLIND, 12MM |
95550-12000 |
US $1.55 |
||
|
28
|
28
95551-20000 PlugBLIND, 20MM |
95551-20000 |
from US $1.55 |
||
