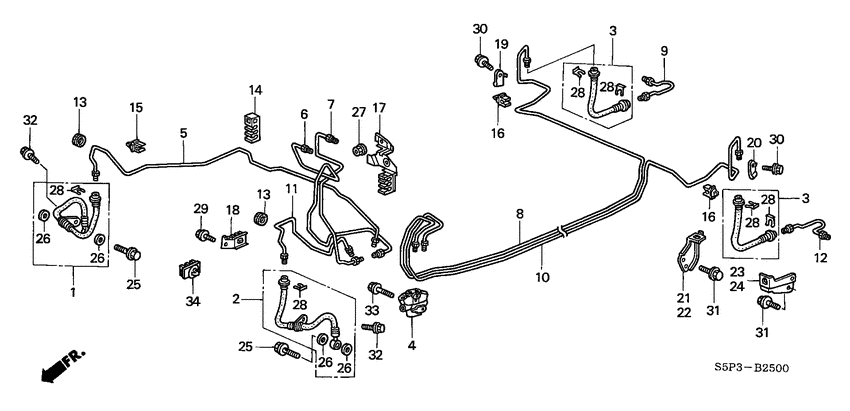

Brake lines (LH) Diagram Honda CIVIC
- Year
- 2001
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15Y
- transmission
- 5MT
- Number of doors
- 4
- grade
- EXI
- area code
- KY
- left-hand drive
- +
- immobilizer
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01464-S5A-J02 Hose setR. FR. BRAKE |
01464-S5A-J02 |
US $38.53 |
||
|
2
|
2
01465-S5A-J02 Hose setL. FR. BRAKE |
01465-S5A-J02 |
US $38.53 |
||
|
3
|
3
01466-S5A-000 Hose setRR. BRAKE |
01466-S5A-000 |
US $32.64 |
||
|
4
|
4
46210-S5A-912
Valve assy.
|
46210-S5A-912 |
— | ||
|
5
|
5
46310-S5A-Q02
Pipe comp. a
|
46310-S5A-Q02 |
— | ||
|
6
|
6
46320-S5A-A01
Pipe comp. b
|
46320-S5A-A01 |
— | ||
|
7
|
7
46321-S5A-A01
Pipe comp. h
|
46321-S5A-A01 |
— | ||
|
8
|
8
46330-S5A-Q00
Pipe comp. c
|
46330-S5A-Q00 |
— | ||
|
9
|
9
46331-S5A-000 Pipe comp. eR. BRAKE |
46331-S5A-000 |
US $11.34 |
||
|
10
|
10
46340-S5A-Q00
Pipe comp. d
|
46340-S5A-Q00 |
— | ||
|
11
|
11
46360-S5A-Q01 Pipe comp. fBRAKE |
46360-S5A-Q01 |
US $13.57 |
||
|
12
|
12
46361-S5A-000
Pipe comp. e
|
46361-S5A-000 |
— | ||
|
13
|
13
46380-SH3-000 Grommet aBRAKE PIPE |
46380-SH3-000 |
US $2.52 |
||
|
14
|
14
46391-SR3-003 Clip ABRAKE PIPE |
46391-SR3-003 |
US $4.44 |
||
|
15
|
15
46391-SX8-T01 ClipBRAKE PIPE |
46391-SX8-T01 |
US $1.75 |
||
|
16
|
16
46391-S5A-J01 ClipBRAKE PIPE |
46391-S5A-J01 |
US $2.28 |
||
|
17
|
17
46393-S5A-J00 ClipBRAKE PIPE |
46393-S5A-J00 |
US $6.16 |
||
|
18
|
18
46394-S5A-T00 ClipBRAKE PIPE |
46394-S5A-T00 |
US $5.32 |
||
|
19
|
19
46397-S5A-000 ClampR. BRAKE PIPE |
46397-S5A-000 |
US $4.20 |
||
|
20
|
20
46398-S5A-000 ClampL. BRAKE PIPE |
46398-S5A-000 |
US $4.20 |
||
|
21
|
21
46435-S5A-900 Bracket aR. RR. BRAKE HOSE |
46435-S5A-900 |
US $8.82 |
||
|
22
|
22
46436-S5A-900 Bracket aL. RR. BRAKE HOSE |
46436-S5A-900 |
US $8.82 |
||
|
23
|
23
46437-S5A-000 BracketR. RR. BRAKE HOSE |
46437-S5A-000 |
US $7.56 |
||
|
24
|
24
46438-S5A-000 BracketL. RR. BRAKE HOSE |
46438-S5A-000 |
US $7.56 |
||
|
25
|
25
46462-SE0-000 BoltOIL |
46462-SE0-000 |
from US $3.33 |
||
|
26
|
26
46472-568-000 PackingOIL BOLT |
46472-568-000 |
from US $3.18 |
||
|
27
|
27
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
28
|
28
90651-538-000 ClipBRAKE HOSE |
90651-538-000 |
from US $2.74 |
||
|
29
|
29
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
30
|
30
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
31
|
31
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
32
|
32
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
|
33
|
33
95801-060-450-8 BoltFLANGE, 6X45 |
95801-060-450-8 |
from US $0.74 |
